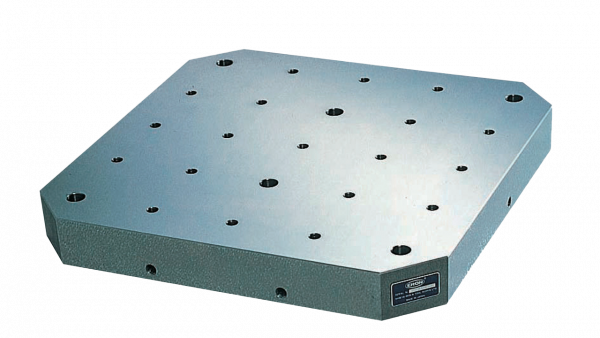

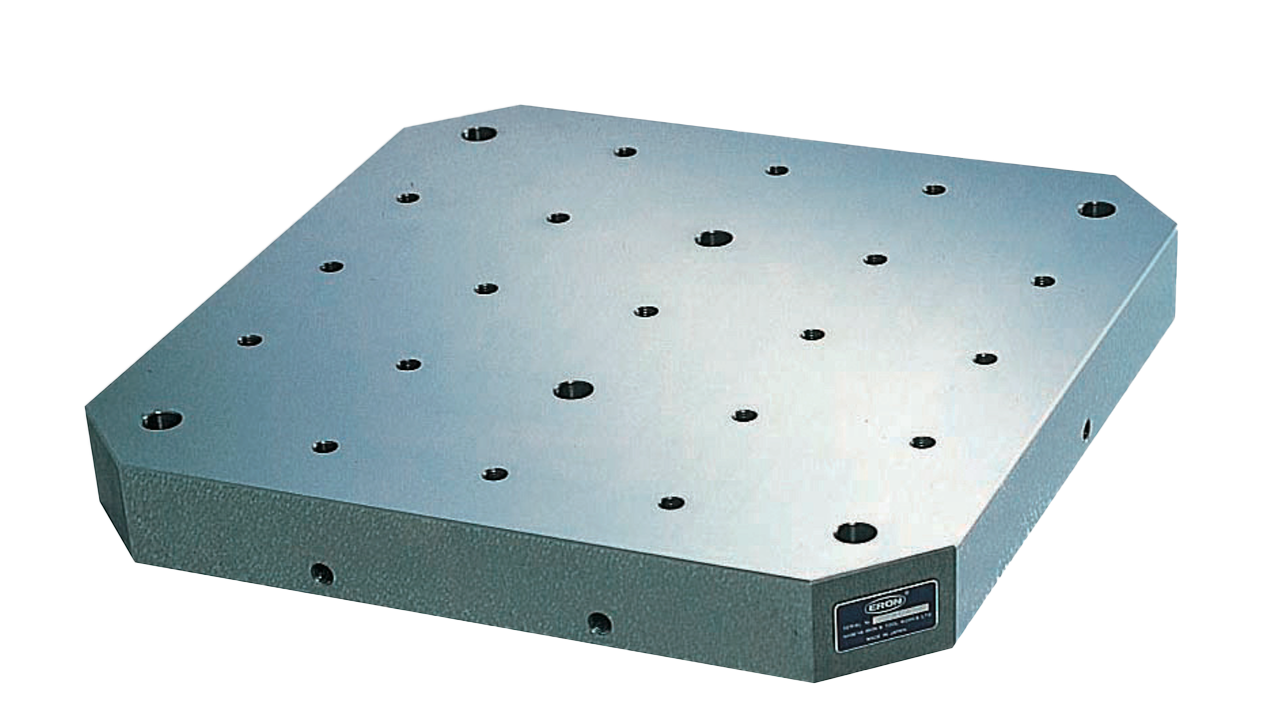

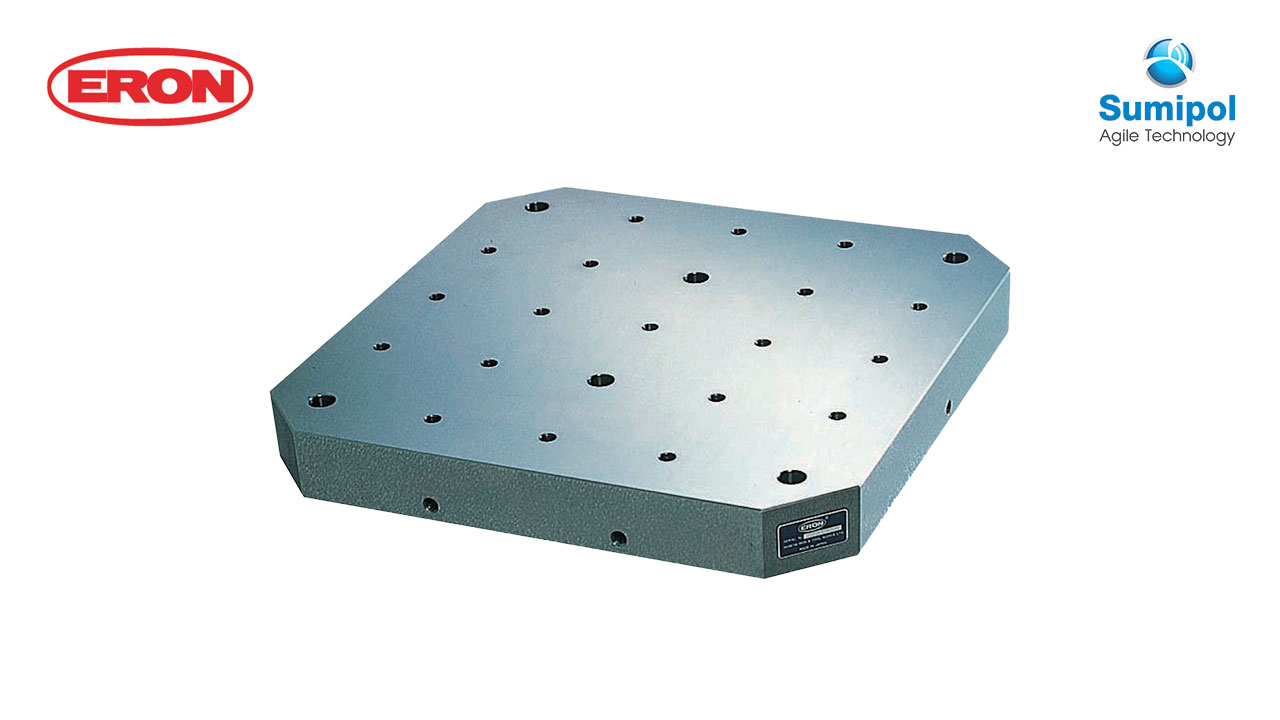

MC PALLET SUB TABLES (TAPPED HOLES TYPE)

Material: FC25
Heat treatment: Annealing
Surface treatment: Painting (Cast Surface)

BASE ELEMENTS


SPECIFICATIONS


No.Overall widthx Total lengthx ThickNessWeight(kg)
MC400P050H4004005055
MC400P075H4004007580
MC400P090H4004009094
MC500P050H5005005086
MC500P075H50050075124
MC500P090H50050090145
MC630P050H63063050139
MC630P075H63063075202
MC630P100H630630100264
MC800P050H80080050222
MC800P075H80080075322
MC800P110H800800110434
