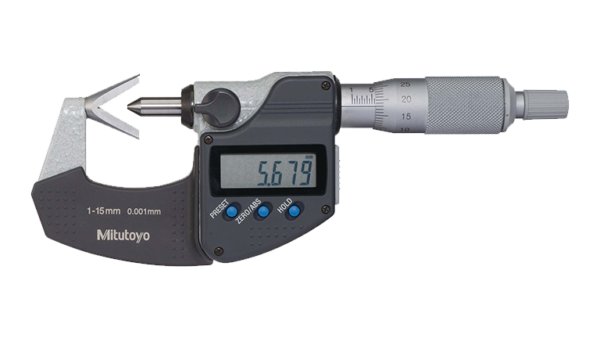

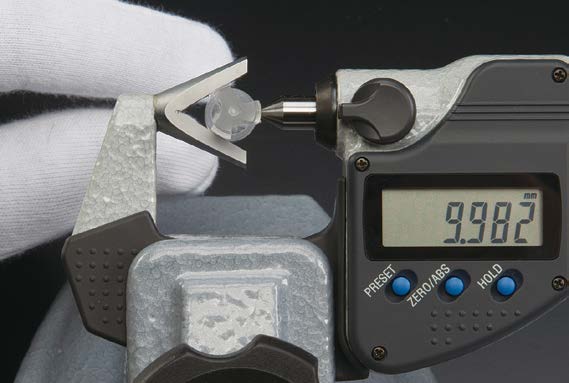

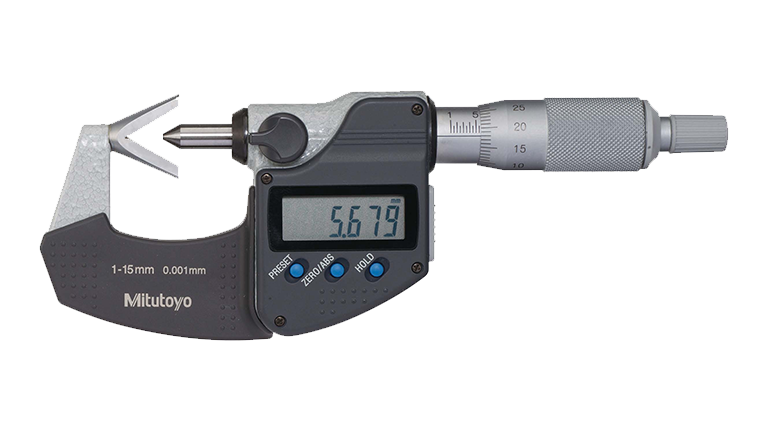

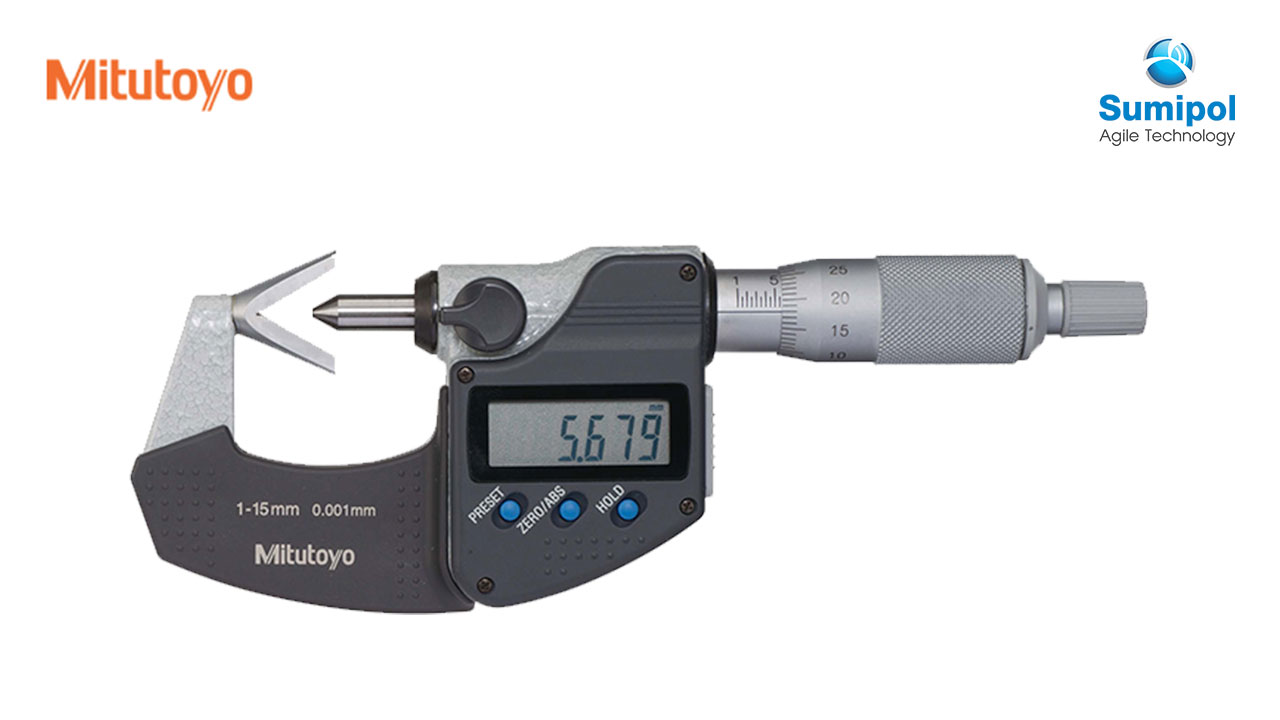

Technical Data
- Flatness:
(series 114) 0.6 μm/0.000024 in (Spindle) , 1.3 μm/0.000052 in (Anvil)
(series 314) 0.3 μm/0.000012 in (Spindle) , 1.0 μm/0.00004 in (Anvil)
- Battery for series 314 : SR44 (1 pc.), 938882, for initial operational checks(standard accessory)
- Battery life: Approx. 2.4 years under normal use (for series 314)
- Length standard: Electromagnetic rotary sensor (for series 314)
- Standard accessories: Reference bar 1 pc , Spanner (301336) 1 pc
Optional Accessories
- Connecting cables for series 314 :
1 m: 05CZA662
2 m: 05CZA663
- USB Input Tool Direct : USB-ITN-B (2 m) 06AFM380B
- U-WAVE-T dedicated connection cable
160 mm: 02AZD790B
For foot switch: 02AZE140B
Wireless Data Output
- U-WAVE-TM 264-622 (IP67 type) , 264-623 (Buzzer type)
- U-WAVE-TMB Transmitter
Mitutoyo Bluetooth® U-WAVE
264-626 (IP type)
264-627 (Buzzer type)
- Connecting unit for U-WAVE-TM/TMB : 02AZF310 (IP67/buzzer type common specification)
SPECIFICATIONS
Metric : For 3-flute cutting tools
| Order No. |
Range (mm) |
Resolution (mm) |
Maximum permissible error JMPE (µm) |
Anvil |
Remarks |
| Digimatic (LCD) |
| 314-251-30 |
1-15 |
0.001 |
±4 |
60º |
w/groove |
| 314-252-30 |
10-25 |
| 314-253-30 |
25-40 |
±5 |
– |
| 314-261-30 |
1-15 |
±4 |
– |
| 314-262-30 |
10-25 |
– |
Inch/Metric : For 3-flute cutting tools
| Order No. |
Range (in) |
Resolution |
Maximum permissible error JMPE (in) |
Anvil |
Remarks |
| Digimatic (LCD) |
| 314-351-30 |
0.05 – 0.6 |
0.00005 in/0.001 mm |
±0.0002 |
60º |
w/groove |
| 314-352-30 |
0.4 – 1 |
| 314-353-30 |
1 – 1.6 |
±0.00025 |
– |
| 314-361-30 |
0.05 – 0.6 |
±0.0002 |
– |
| 314-362-30 |
0.4 – 1 |
– |
Metric : For 3-flute cutting tools
| Order No. |
Range (mm) |
Graduation (mm) |
Maximum permissible error JMPE (µm) |
Anvil |
Remarks |
| Analog Anvil, Spindle (With carbide tip) |
| 114-204 |
2.3-25 |
0.01 |
±4 |
60º |
– |
| Analog Spindle (With carbide tip) |
| 114-101 |
1-15 |
0.01 |
±4 |
60º |
w/groove |
| 114-102 |
10-25 |
| 114-103 |
25-40 |
±5 |
– |
| 114-104 |
40-55 |
±6 |
– |
| 114-105 |
55-70 |
– |
| 114-106 |
70-85 |
±7 |
– |
| 114-161 |
1-15 |
±4 |
– |
| 114-162 |
10-25 |
– |
Inch : For 3-flute cutting tools
| Order No. |
Range (in) |
Graduation (in) |
Maximum permissible error JMPE (in) |
Anvil |
Remarks |
| Analog Anvil, Spindle (With carbide tip) |
| 114-202 |
0.09-1 |
0.0001 |
±0.0002 |
60º |
– |
| Analog Spindle (With carbide tip) |
| 114-163 |
0.05-0.6 |
0.001 |
±0.0002 |
60º |
– |
| 114-113 |
1-1.6 |
±0.00025 |
– |
| 114-114 |
1.6-2.2 |
±0.0003 |
– |
Metric : For 5-flute cutting tools
| Order No. |
Range (mm) |
Graduation (mm) |
Maximum permissible error JMPE (µm) |
Anvil |
Remarks |
| Analog Anvil, Spindle (With carbide tip) |
| 114-137 |
2.3-25 |
0.01 |
±4 |
108º |
– |
| Analog Spindle (With carbide tip) |
| 114-121 |
5-25 |
0.01 |
±4 |
108º |
– |
| 114-122 |
25-45 |
±5 |
– |
| 114-123 |
45-65 |
±6 |
– |
| 114-124 |
65-85 |
±7 |
– |
| 114-165 |
5-25 |
±4 |
– |
Inch : For 5-flute cutting tools
| Order No. |
Range (in) |
Graduation (in) |
Maximum permissible error JMPE (in) |
Anvil |
Remarks |
| Analog Anvil, Spindle (With carbide tip) |
| 114-135 |
0.09-1 |
0.0001 |
±0.0002 |
108º |
– |
