Mitutoyo

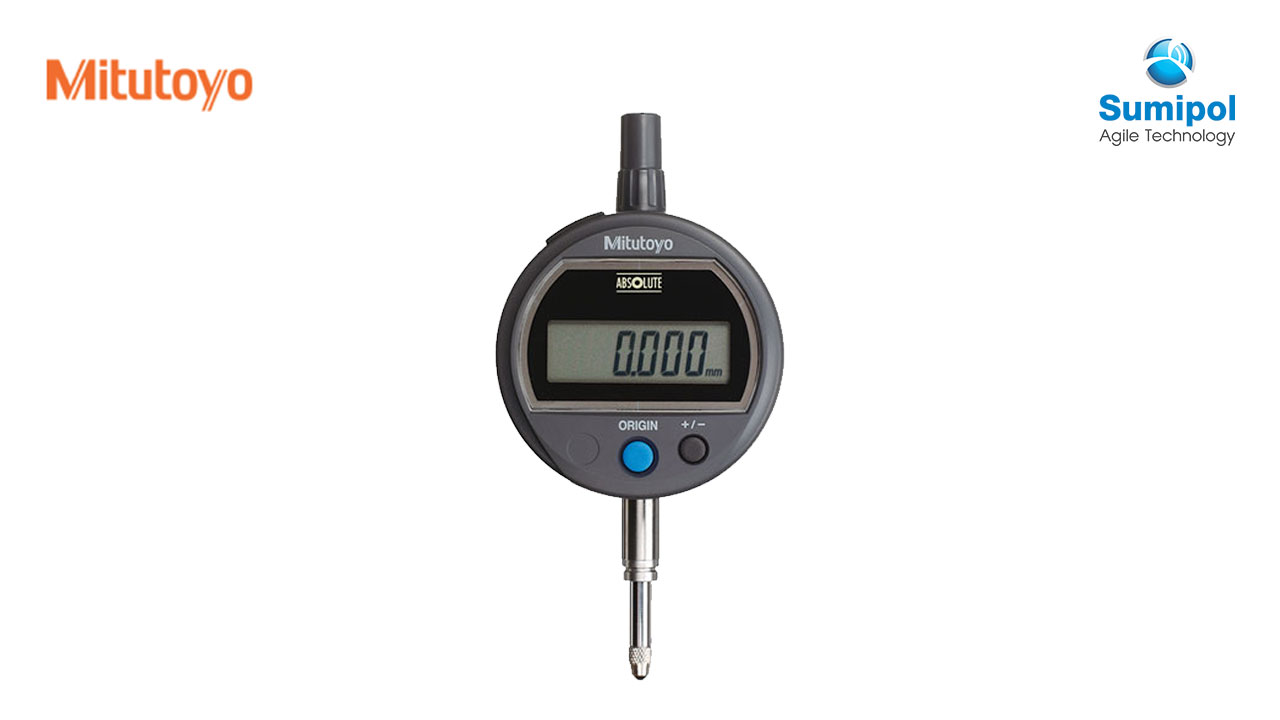

ABS Solar Digimatic Indicator ID-SS

  • Mitutoyo unique ABSOLUTE sensor automatically restores the last origin position when the indicator is turned on. This allows quick-start operation, which is especially useful in multipoint measurement.
  • Measurement tool with a solar power source. Ready for use from 40 lux illumination.
  • As compact as Series 2 dial indicators.
  • SPC Output provided
  • Two large buttons (three on inch/mm models) improve functionality

Solar powered

  • An environmentally friendly measuring instrument that does not require batteries, eliminating the hassle and cost of battery replacement. Can operate down to a minimum light level of 40 lux – lower than the level in a warehouse.

Built-in recharger

  • The large-capacity built-in reservoir capacitor allows you to use the indicator for long periods of time under lightconditions below the minimum level.

User-friendly buttons

  • All functions can be accessed by using the two or three large buttons on the front of the indicator.

Origin recorded even if display disappears.

  • The indicator includes an ABS (absolute) scale that allows the previously set origin to be restored even if the display disappears due to insufficient light, making it easy to resume measurement. This feature makes ID-SS ideal for long-time or multi-point measurement.

Equipped with a data output port that enables

  • incorporation into measurement networking and statistical process control systems
  • Accuracy: Refer to the list of specifications
  • Resolution: 0.01mm, 0.001mm, .00005”/0.001mm, or .0005”/0.01mm
  • Display: LCD
  • Length Standard: ABSOLUTE electrostatic capacitance type linear encoder
  • Max. Response Speed: Unlimited
  • Measuring Force: Refer to the list of specifications
  • Battery: Solar Battery*
  • Dust/Water Protection Level: IP42
    *can be used continuously above 40 lux
