Carbide Drill – AD・ADO

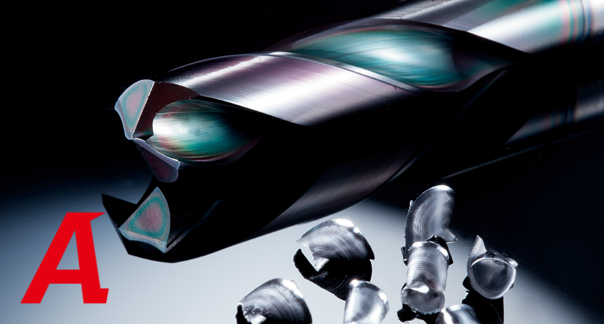

Superior point strength with low cutting force are achieved to accommodate a wide range of carbide drilling application.EgiAs coating constructed with extreme toughness, high wear and heat resistance characteristics to ensure stable and consistent tool life.

Download Catalogue
Categories: ,

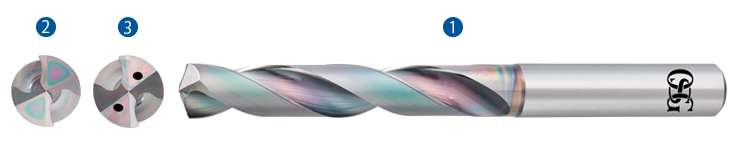

  1. EgiAs coating for exceptional wear resistance and toughnessOptimum specifications for every drilling depth
  2. 2D・3D・4D・5D・8D

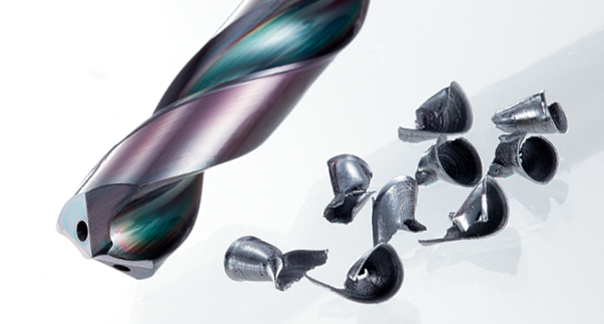

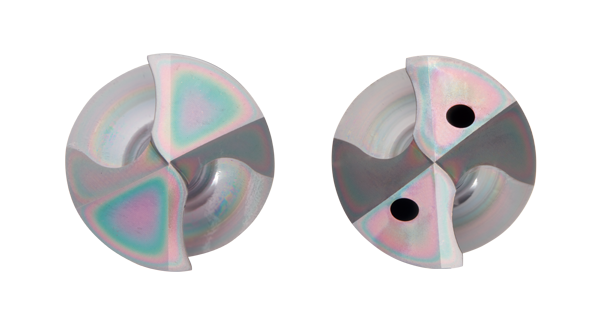

    ・Wide flute room facilitates stable chip evacuation ・Wavy point form breaks chip into small manageable pieces
  3. 8D・10D・15D・20D・25D・30D
    ・M (Middle) margin improves stability in deep-hole applications

Applications

  • Low Carbon Steel・Medium Carbon Steel・High Carbon Steel・Alloy Steel・Hardened Steel・Quenched and Tempered Steel（45~50HRC）・Stainless Steel・Tool Steel・Cast Iron・Ductile Cast Iron・Copper Alloy・Aluminum Alloy Casting・Titanium Alloy・Inconel・Magnesium Alloy

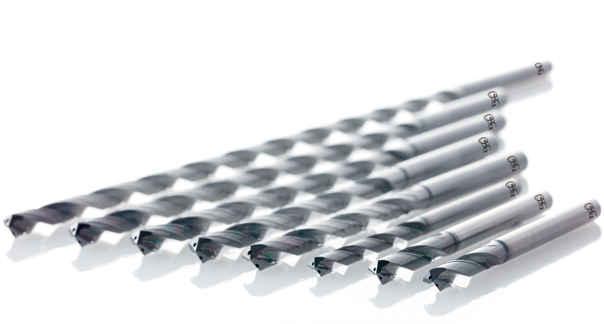

Lineup

Carbide Drill

  • AD-2D　φ2～φ20
  • AD-4D　φ2～φ20

Carbide Drill with Oil Hole

  • ADO-3D　φ2～φ20
  • ADO-5D　φ2～φ20
  • ADO-8D　φ3～φ16
  • ADO-10D　φ2～φ12.5
  • ADO-15D　φ3～φ12.5
  • ADO-20D　φ3～φ12.5
  • ADO-25D　φ3～φ12
  • ADO-30D　φ3～φ10

Pilot Drill

  • Pilot Drill for Extra Long Drill（ADO-PLT）　φ3.03～φ12.03

Long tool life can be achieved even at high feed rate with OSG’s EgiAs coating
