- Available for DC 24V applications
- Long-lasting LED’s greatly reduce maintenance costs
- A set of two stainless-steel mounting brackets is a standard accessory
- Operating temperature range from -30 to +60 degrees C.
- LED color temperature is Daylight (6500K)
PATLITE

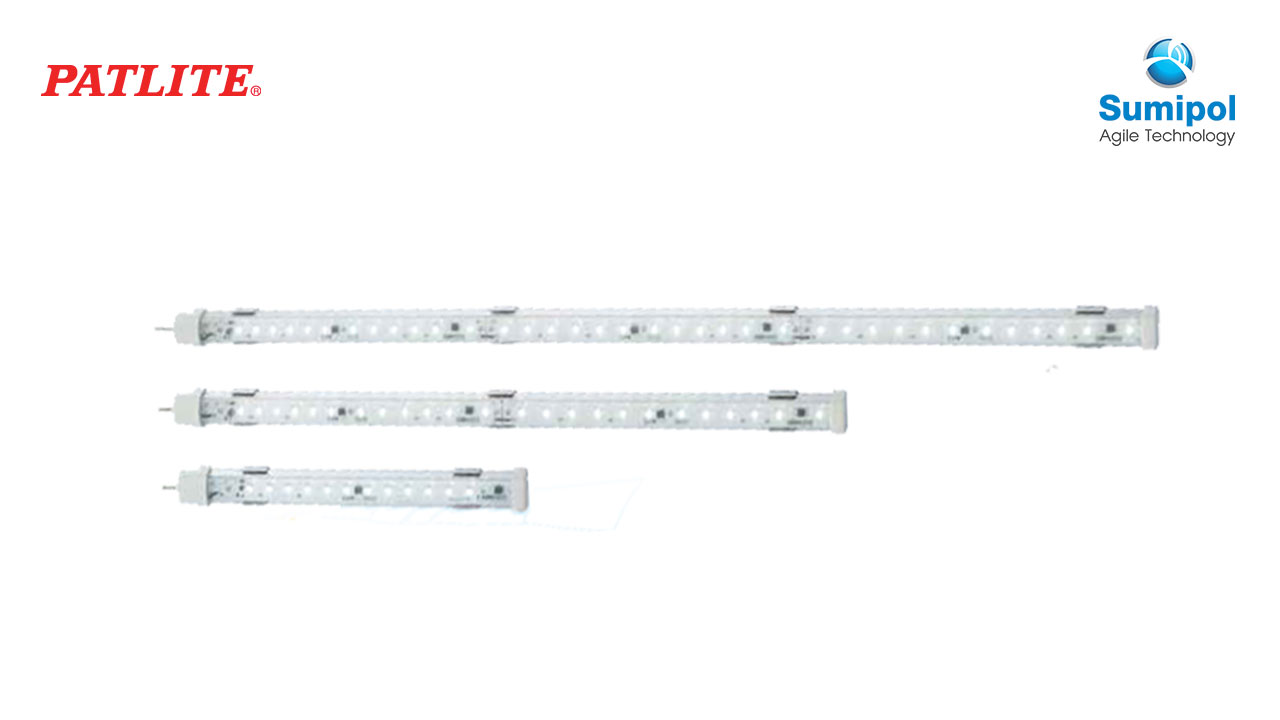

CWA LED Light Bar
An affordable replacement, the slim LED light bar can outperform a conventional fluorescent lamp. The protection rating of IP65 is a standard which allows installation in most common environments
| DIMENSIONS | Lengths: – 300mm – 600mm – 900mm |
|---|---|
| RATED VOLTAGE | – 300mm Length: DC24V, 180mA, – 600mm Length: DC24V, 360mA – 900mm Length: DC24V, 540mA |
| FUNCTIONS | – 300mm Length: 110 lux, 385 lum – 600mm Length: 220 lux, 770 lum – 900mm Length: 330 lux, 1155 lum |
| MOUNTING | – Mount in any direction with the brackets included |
| LIGHT SOURCE | – High power LED Array |
| LENS MATERIAL | – Polycarbonate Resin |
| CONFORMITY STANDARDS | – RoHS – CE – UL |
| PROTECTION RATING | – IP65(IEC 60529) |
