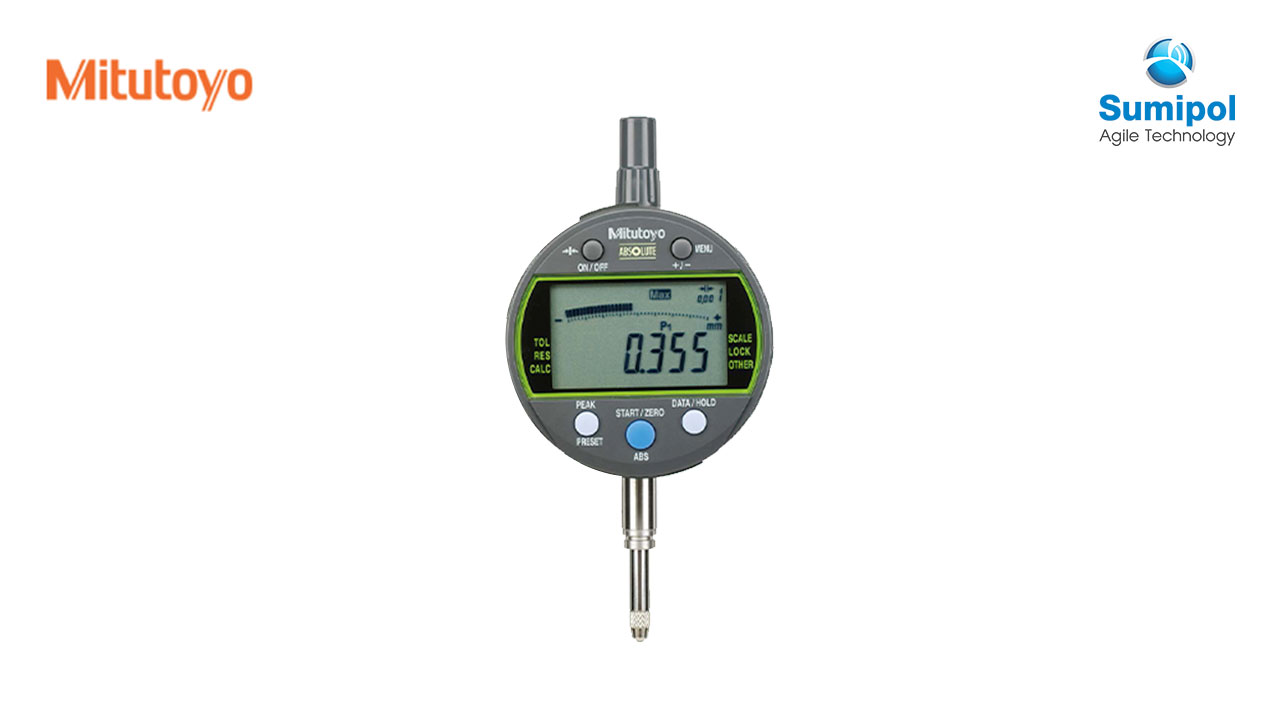

New feature of Digimatic Indicator is Peak Hold with both Key-Lock and Parameter-Lock to prevent unintentional setting change during operation.

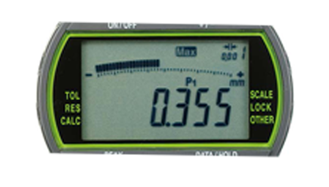

An analog bar provides easy-to-read values when scanning for Max, Min and TIR Values.
The maximum, minimum or runout value can be displayed during measurement.
Go/no-go judgment is performed by setting the upper and lower tolerances for max., min. and runout values.
High speed sampling ratio of 50 times/s and it enables to detect peak value more correctly.
Employing the ABSOLUTE linear encoder, the Signal ID-C always displays the spindle Absolute Position from the origin when turned on.
Peak-Value TIR/MAX/MIN Hold enables GO/±NG judgement for peak value.
Simple operation of many functions with 5 buttons and status icons.
Wide LCD and new analog bar graph are now standard on all models.

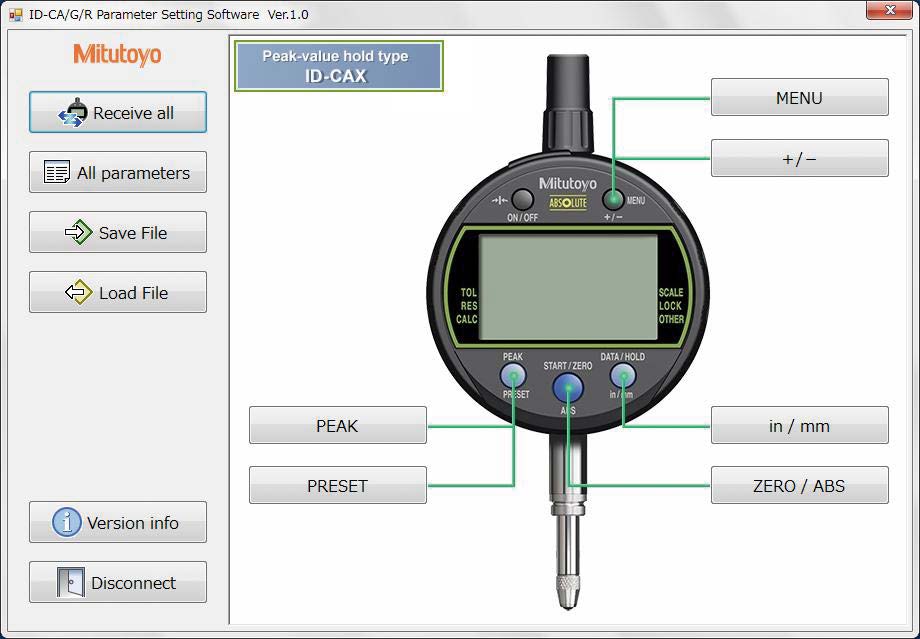

Parameter setting software makes it even eay to set all available parameters.

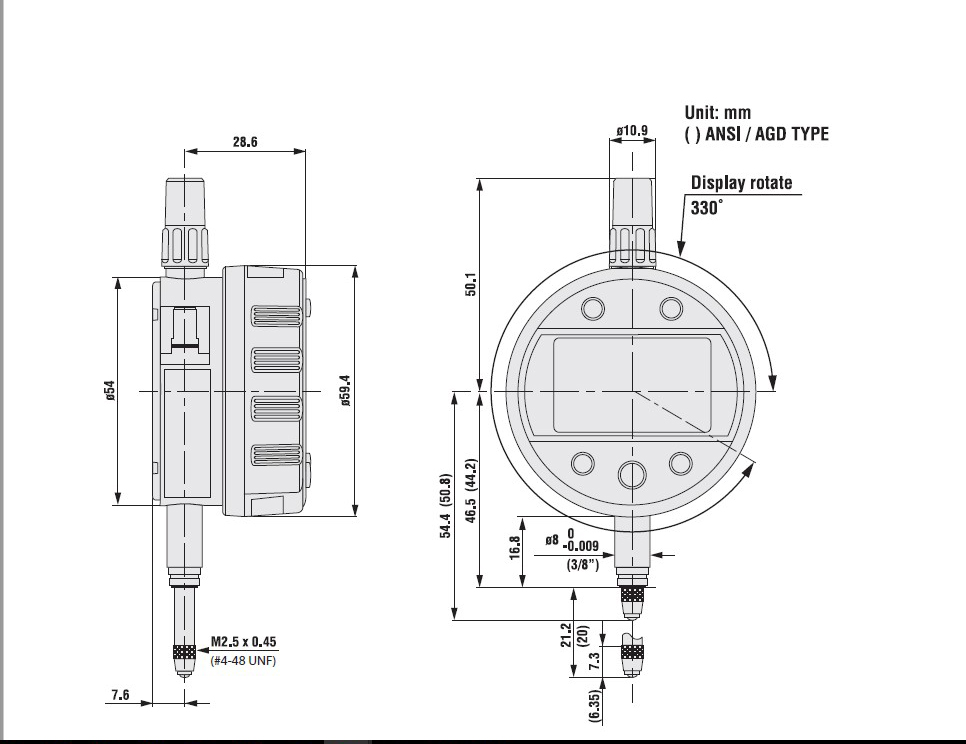

Technical Data
Resolution: 0.001-0.01mm or .00005-.0005”/ 0.001-0.01mm Display: LCD
Length standard: ABSOLUTE electrostatic capacitance-type linear encoder
Max. response speed: Unlimited
Measuring force: 1.5N or less
Battery: CR2032 (1 pc.), 05SAA217
Battery life: Approx. 12 months under normal use
IP Rating: Equivalent to IP-42*1
* 1 A protection class indication (IP=lnternational Protection) is based on the IEC 60529 /DIN40050 part 1/JIS D0207, C0920. The level indicated is valid only if the output connector cap is installed.
Function
Key Lock, Parameter Lock, PC-USB Input, Analog Bar, Fast measurement frequency, Preset (up to 3 values), Tolerance Judgment , Peak Detection , Calculation (Ax), inch/mm conversion (on inch/metric models only) Counting direction switching, Data Output Alarm: Low voltage, Counting value composition error, Overflow error, Tolerance limit setting error
Optional Accessories
905338: Connecting Cable (1m)
905409: Connecting Cable (2m)
21EZA313: Parameter Setting USB Cable
21EZA198: Spindle lifting lever (12.7mm ISO/JIS type)
21EZA199: Spindle lifting lever (12.7mm ASME/AGD type)
