SF Multi-Function Beacons

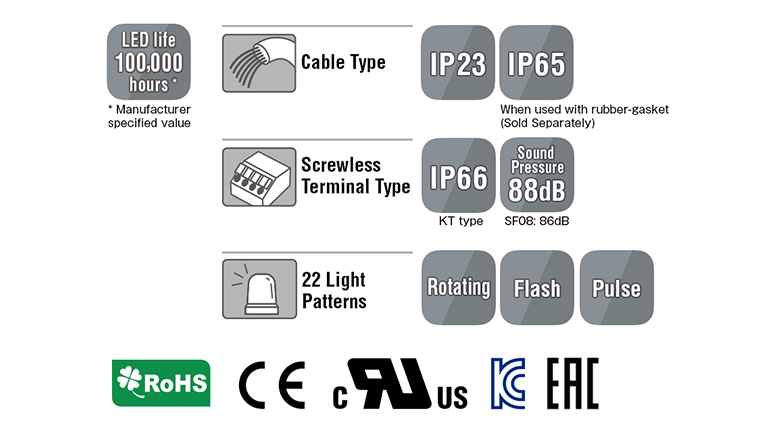

Multi-Function Beacons SF series. LED animations including simulated rotation. High efficiency and wide selection of light patterns.

  • Multi-function Beacons
    High Efficiency
    This motorless, maintenance-free design produces LED animations including simulated rotation, flashing, and pulsing effects.
    The SF is designed with PATLITE’s newly developed multi-fresnel lens. This thin, rigid lens is capable of collecting and diffusing light more effectively than a conventional lens.


  • Wide Selection of Light Patterns
    Select from 22 light patterns to indicate various statuses at your work field. The light pattern can easily be configured by adjusting the rotary switch and wiring channels.

    [ Examples of Usage ]
    ● Reduce brightness during night time
    ● Adjust flash speeds depending on urgency
    ● Adjust rotation speeds depending on level of danger


    »[Video] Rotary switch adjustment

Light Pattern


Application Examples


The SF is mounted on a fill machine to indicate multiple operation statuses using different rotation and flash settings. Select from 22 light patterns to provide unambiguous visual signals.

As the SF is powered on, visual signals will immediately begin to operate. This eliminates the need for a device to trigger operating functions for this type of application.

The SF is installed at a gate to warn pedestrians of large vehicles passing through. A timer switch is used to dim the light during the dark hours to avoid blinding drivers.
Model Number Configuration







Lorem Lorem ipsum dolor sit amet, conse ctetur adipiscing elit, sed do eiusmod tempor incididunt ut labore

Product Name : SF Multi-Function Beacons
