UNI MICROMETER

The tips on the anvil side are interchangeable. Interchangeable anvils are available

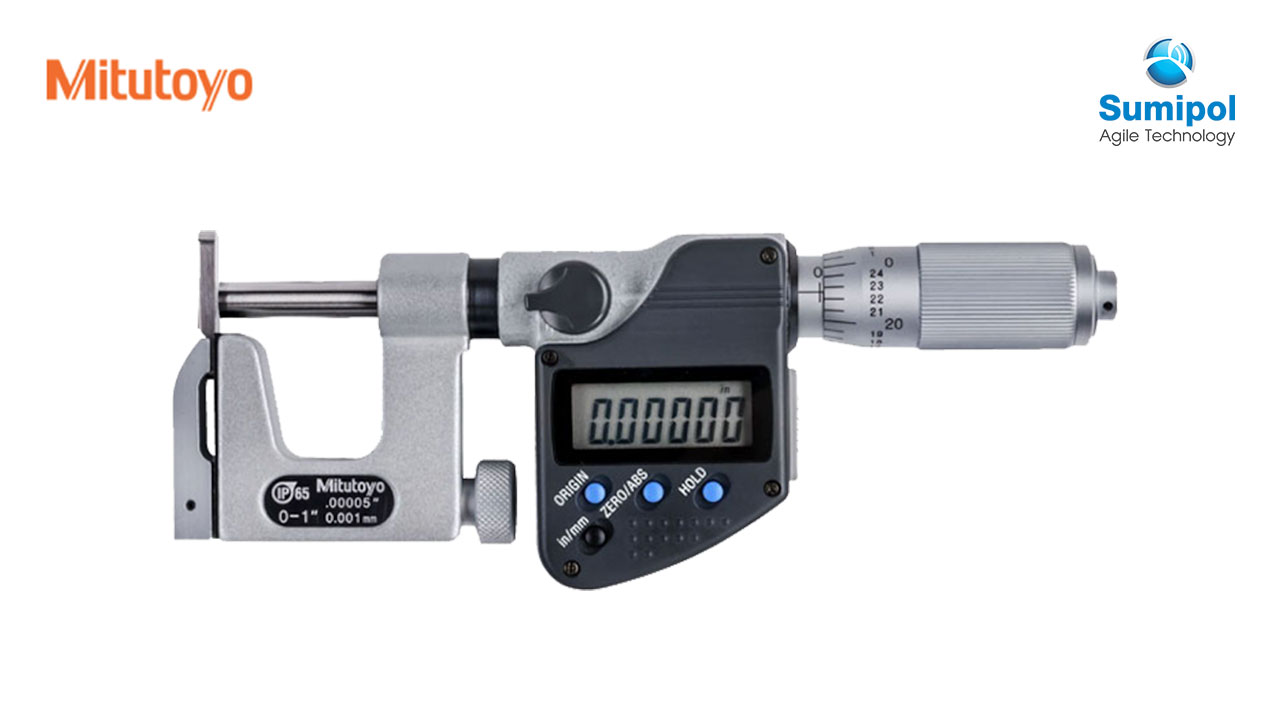

“Uni-Mike” SERIES 317, 117 — Interchangeable Anvil Type

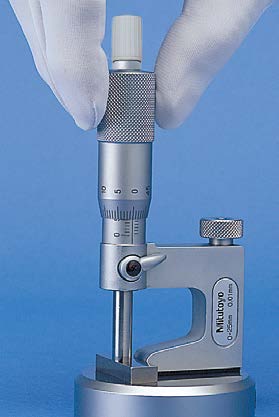

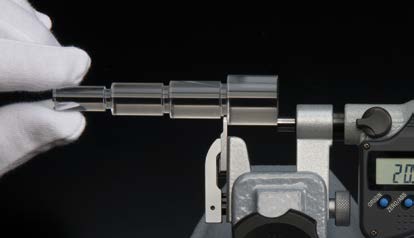

  • A selection of interchangeable anvils (rod anvils and V-anvils) enables measurement of tube thickness, rivet head height and similar features just by replacing the anvil to suit.
  • IP65 water / dust protection (series 317).
  • Equipped with Ratchet Stop for constant measuring force.



UNI MICROMETER   UNI MICROMETER

SPECIFICATIONS

Metric : Digimatic (LCD)

Order No
Range (mm)
Resolution (mm)
Spindle feed error (μm)
Flatness (μm)
Parallelism (μm)
317-251-30
0-25
0.001
3
0.6 (Spindle face) /
2 (Anvil face)
3
317-252-30
25-50

Metric : Analog

Order No
Range (mm)
Graduation (mm)
Spindle feed error (in)
Flatness (in)
Parallelism (in)
117-101
0-25
0.01
3
0.6 (Spindle face) /
2 (Anvil face)
3
117-102
25-50

Inch/Metric : Digimatic (LCD)

Order No
Range (in)
Resolution
Spindle feed error (in)
Flatness (in)
Parallelism (in)
317-351-30
0-1
0.00005 in/0.001 mm
0.00015
0.000024
(Spindle face)
0.00008
(Anvil face)
0.00012
317-352-30
1-2

Inch : Analog

Order No
Range (in)
Graduation (in)
Spindle feed error (in)
Flatness (in)
Parallelism (in)
117-101
0-25
0.0001
0.00015
0.000024
(Spindle face)
0.00008
(Anvil face)
0.00012
117-102
25-50

Technical Data

  • Battery for series 317 SR44 (1 pc.), 938882, for initial operational checks (standard accessory)
  • Battery life: Approx. 2.4 years under normal use (for series 317)
  • Length standard: Electromagnetic rotary sensor (for series 317)
  • Standard accessories: Reference bar, 1 pc. (except for measuring range 0 to 25 mm (0 to 1 in) models)
    Spanner (200877), 1 pc. (for series 117-XXX)
    Spanner (301336), 1 pc. (for series 317-XXX)

Optional Accessories

  • Connecting cables (series 317)
    1 m: 05CZA662
    2 m: 05CZA663
  • USB Input Tool Direct
    USB-ITN-B (2 m): 06AFM380B
  • U-WAVE-T dedicated connection cable
    160 mm: 02AZD790B
    For foot switch: 02AZE140B

Wireless Data Output

  • U-WAVE-TM
    264-622 (IP67 type)
    264-623 (Buzzer type)
  • U-WAVE-TMB Transmitter
    Mitutoyo Bluetooth® U-WAVE
    264-626 (IP type)
    264-627 (Buzzer type)
  • Connecting unit for U-WAVE-TM/TMB
    02AZF310 (IP67/buzzer type common specification)
