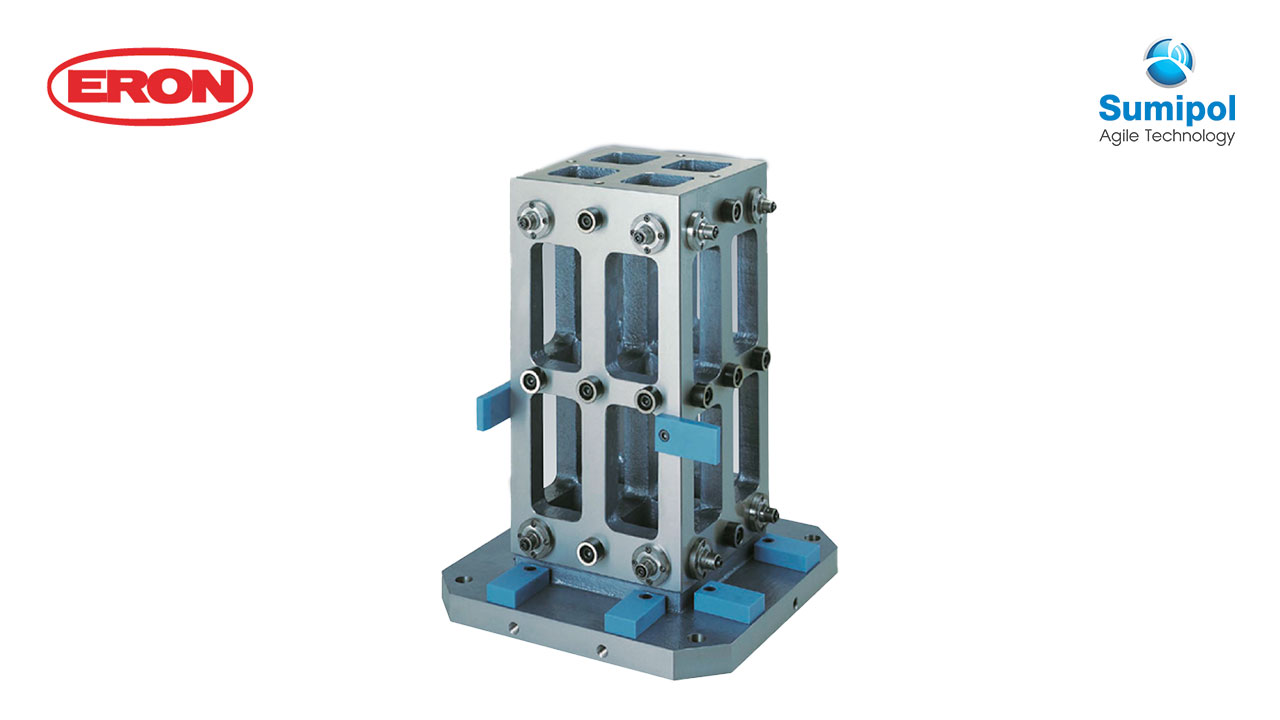

4 FACES/MC TOOLING BLOCKS WITH Q-LOCK ELEMENTS

Material

Main body:FC25
Q-Lock Elements:SCM44
Height Cylinder:SCM42
Rough Guide:MC Nylon
Bottom Surface Rough Guide:MC Nylon

Heat treatment

Main body:Annealing
Q-Lock Elements:Heat treatment (HRC55)
Height Cylinder:Heat treatment (HRC55)

Surface treatment

Main body:Painting (Cast Surface)
Q-Lock Elements:Non-electrolytic Plating
Height Cylinder:Blackened

Feature

  • 4-face tooling blocks with Q-Lock Elements.
  • Plates can be located and clamped with one touch by combining with compatible bushes.
  • The position repeatability accuracy when using E-659P Attachment Plates with Q-Lock Elements is 3 μm .

【Accessories】Eye bolt, Top plate

No.BasePostOverall diameterLocating PinDia. PinClamping PinWeight (kg)
TBQ400T400200550QLT26RPQLT26DPQLT26CP140
TBQ500T500300650QLT26RPQLT26DPQLT26CP210
TBQ630T630430750QLT32RPQLT32CPQLT32CP340
