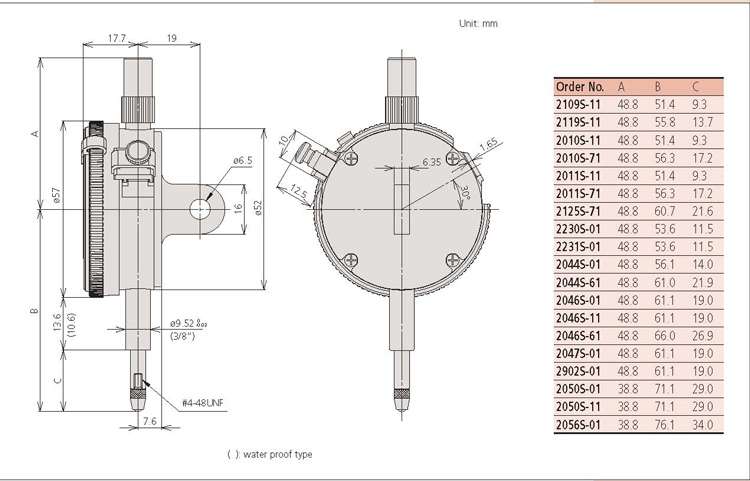

Dial Indicators – ANSI/AGD Type Metric Dial Indicator
Series 2

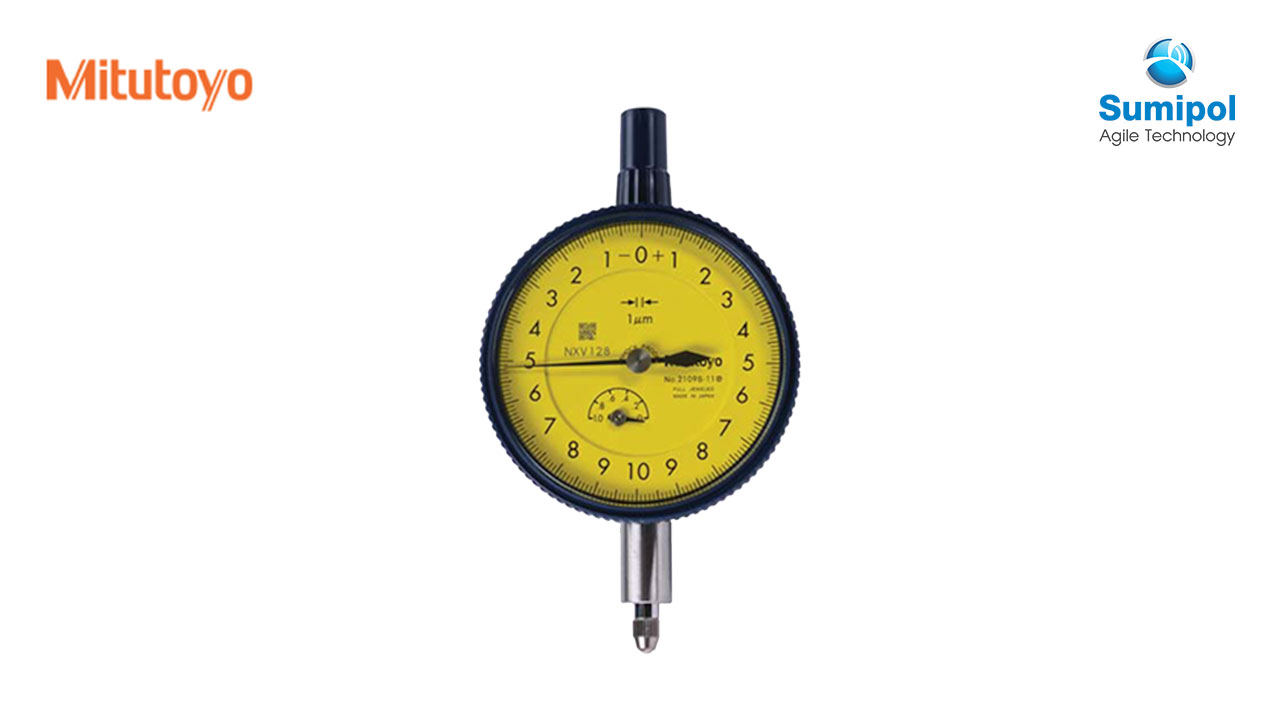

Stem dia. 3/8″, #4-48 UNF Thread Yellow Dial Face
Metric
| Graduation | Range Range/Rev | Order No | Type | Dial Reading | Accuracy First2.5/Overall | Force |
|---|---|---|---|---|---|---|
| 0.01mm | 5mm/1mm | 2044S-01 | w/lug | 0-100 | 0.01mm/0.01mm | 1.4N or less |
| 0.01mm | 5mm/1mm | 2044SB-01 | Flat-back | 0-100 | 0.01mm/0.01mm | 1.4N or less |
| 0.01mm | 10mm/1mm | 2046S-01 | w/lug | 0-100 | 0.01mm/0.01mm | 1.4N or less |
| 0.01mm | 10mm/1mm | 2046S-11 | w/lug | 0-100 | 0.01mm/0.013mm | 1.4N or less |
| 0.01mm | 10mm/1mm | 2046SB-01 | Flat-back | 0-100 | 0.01mm/0.013mm | 1.4N or less |
| 0.01mm | 10mm/1mm | 2046SB-11 | Flat-back | 0-100 | 0.01mm/0.013mm | 1.4N or less |
| 0.01mm | 10mm/1mm | 2047S-01 | w/lug | 0-50-0 | 0.01mm/0.013mm | 1.4N or less |
| 0.01mm | 10mm/1mm | 2047S-11 | w/lug | 0-50-0 | 0.01mm/0.013mm | 1.4N or less |
| 0.01mm | 10mm/1mm | 2047SB-01 | Flat-back | 0-50-0 | 0.01mm/0.013mm | 1.4N or less |
| 0.01mm | 10mm/1mm | 2047SB-11 | Flat-back | 0-50-0 | 0.01mm/0.013mm | 1.4N or less |
| 0.01mm | 20mm/1mm | 2050S-01 | w/lug | 0-100 | 0.01mm/0.02mm | 2.0N or less |
| 0.01mm | 20mm/1mm | 2050S-11 | w/lug | 0-100 | 0.01mm/0.02mm | 2.0N or less |
| 0.01mm | 20mm/1mm | 2050SB-01 | Flat-back | 0-100 | 0.01mm/0.02mm | 2.0N or less |
| 0.01mm | 20mm/1mm | 2050SB-11 | Flat-back | 0-100 | 0.01mm/0.02mm | 2.0N or less |
| 0.01mm | 25mm/1mm | 2056S-01 | w/lug | 0-100 | 0.01mm/0.025mm | 2.5N or less |
| 0.01mm | 25mm/1mm | 2056SB-01 | Flat-back | 0-100 | 0.01mm/0.025mm | 2.5N or less |
| 0.001mm | 1mm/0.2mm | 2109S-11 | w/lug | 0-100-0 | 0.003mm/0.004mm | 1.5N or less |
| 0.001mm | 1mm/0.2mm | 2109SB-11 | Flat-back | 0-100-0 | 0.003mm/0.004mm | 1.5N or less |
| 0.001mm | 5mm/0.2mm | 2119S-11 | w/lug | 0-100-0 | 0.007mm/0.01mm | 1.5N or less |
| 0.001mm | 5mm/0.2mm | 2119SB-11 | Flat-back | 0-100-0 | 0.007mm/0.01mm | 1.5N or less |
| 0.01mm | 2.5mm/1mm | 2230S-01 | w/lug | 0-100 | 0.01mm/0.01mm | 2.5N or less |
| 0.01mm | 2.5mm/1mm | 2230SB-01 | Flat-back | 0-100 | 0.01mm/0.01mm | 2.5N or less |
| 0.01mm | 2.5mm/1mm | 2231S-01 | w/lug | 0-50-0 | 0.01mm/0.01mm | 1.5N or less |
| 0.01mm | 2.5mm/1mm | 2231SB-01 | Flat-back | 0-50-0 | 0.01mm/0.01mm | 1.5N or less |
| 0.01mm | 10mm/1mm | 2902S-01 | w/lug | 100-0 | 0.01mm/0.013mm | 1.4N or less |
| 0.01mm | 10mm/1mm | 2902SB-01 | Flat-back | 100-0 | 0.01mm/0.013mm | 1.4N or less |
