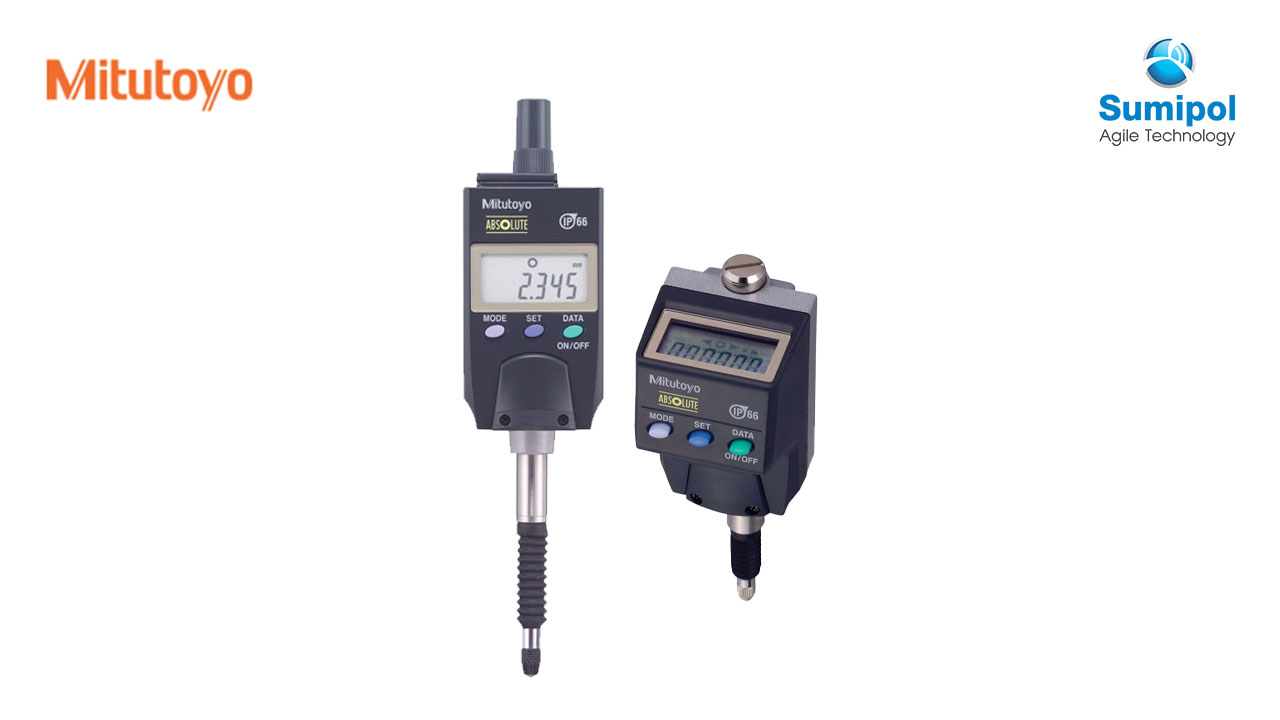

ABS Digimatic Indicator ID-N/B

  • Proven ABSOLUTE sensor.
  • Rated to IP66 water- and dust-proofing standard and oil resistance improved.
  • Slim body design is advantageous for multi-point measurements.
  • Improvement in workability with the LCD readout-rotation function.
  • Back plunger design (ID-B).
  • Built-in tolerance judgment function.
  • Switchable resolution.
  • Waterproof data output connector.
  • Built-in hold/preset function

Technical Data
Resolution: 0.01mm, 0.01mm/0.001mm, .0005”/0.01mm
or .0005”/.00005”/0.01mm/0.001mm
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance type
linear encoder
Max. response speed: Unlimited
Measuring force: 2.5N (2.0N: Back plunger type)
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 7000 hours under normal use
Dust/Water protection level: IP66
