ABS Digimatic Indicator ID-S

  • หลังจากตั้งค่า zero-setting ด้วยปุ่ม Origin button
    ก็ไม่จำเป็นต้องการกำหนดตำแหน่งซ้ำ จนกว่าแบตเตอรี่จะหมด
  • ความเร็วในการตอบสนองไม่จำกัด ช่วยลด overspeed errors
  • มีขนาดใกล้เคียงกับ Standard Series 2 dial indicators
  • SPC data output.

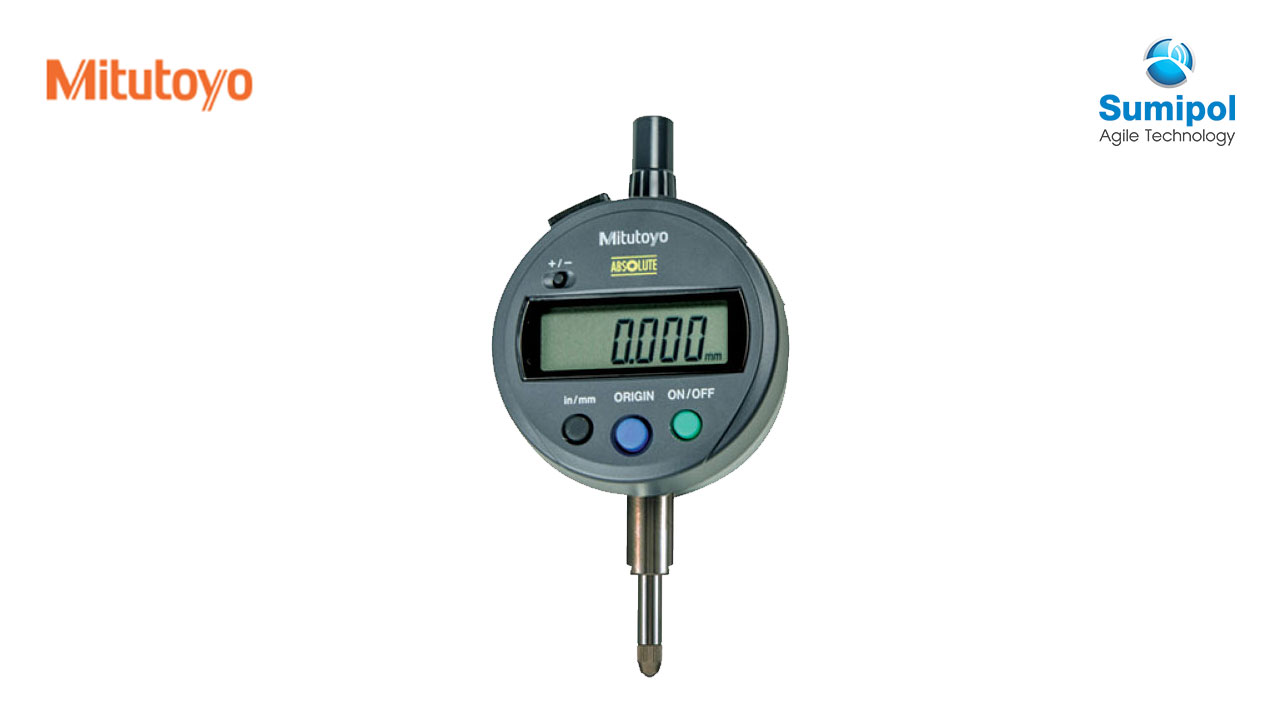

ABSOLUTE Digimatic Indicator ID-S Series 543-with Simple Design

Technical Data
Accuracy: Refer to the list of specifications
Resolution: 0.01mm, 0.001mm, .0005″/0.01mm .0001”/0.001mm or .00005”/0.001mm
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance-type linear encoder
Max. response speed: Unlimited
Measuring force: Refer to the list of specifications
Battery: SR44 (1 pc.) 938882
Battery life: Approx. 20,000 hours under normal use
Dust/Water protection level: IP42 (IP53: 543-794B,543-795B, 543-796B)
Inspection certificate is included.


Function
Origin-set, Zeroset, Counting direction switching, Power ON/OFF, Data output,
inch/mm conversion (on inch/metric models only)
Alarm: Low voltage, Counting value composition error,Over-flow error


Optional Accessories
905338: SPC cable (40”/1m)
905409: SPC cable (80”/2m)
21EZA198: Spindle lifting lever (ISO/JIS type)
21EZA199: Spindle lifting lever (ANSI/AGD type)
540774: Spindle lifting cable (stroke: .4” / 10mm)
21EZA105 Lifting knob (mm)
21EZA150 Lifting knob (inch)
125317: Spare rubber boot (for dust-proof type)

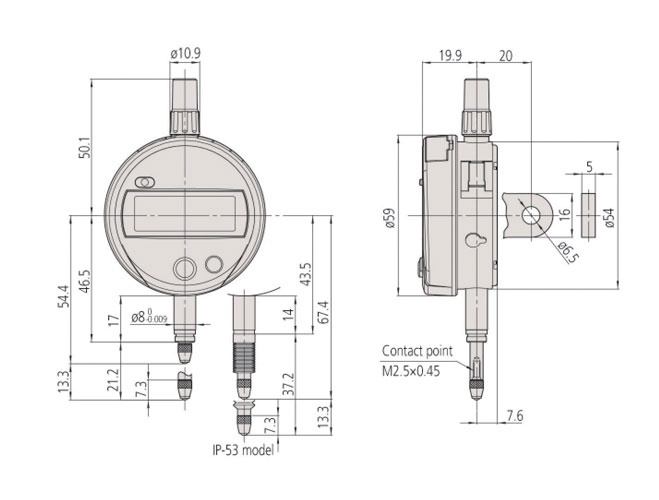

ABS Digimatic Indicator ID-S 2




Inch/Metric

Order No
Model No
Resolution
Range
Accuracy
Stem DIA
Force
Contact Point
543-782 ID-S1012MX .0005in 0.01mm .5in 12.7mm .0008in 5/16in 2.0N or less M2.5×0.45 Thread
543-782B ID-S1012MBX .0005in 0.01mm .5in 12.7mm .0008in 5/16in 2.0N or less M2.5×0.45 Thread
543-783 ID-S1012E .0005in 0.01mm .5in 12.7mm .0008in 3/8in 2.0N or less 4-48 UNF Thread
543-783B ID-S1012EB .0005in 0.01mm .5in 12.7mm .0008in 3/8in 2.0N or less 4-48 UNF Thread
543-791 ID-S112MX .00005in 0.001mm .5in 12.7mm .0001in 5/16in 2.0N or less M2.5×0.45 Thread
543-791B ID-S112MBX .00005in 0.001mm .5in 12.7mm .0001in 5/16in 2.0N or less M2.5×0.45 Thread
543-792 ID-S112EX .00005in 0.001mm .5in 12.7mm .0001in 3/8in 2.0N or less 4-48 UNF Thread
543-792B ID-S112EBX .00005in 0.001mm .5in 12.7mm .0001in 3/8in 2.0N or less 4-48 UNF Thread
543-793 ID-S112TX .0001in 0.001mm .5in 12.7mm .0001in 3/8in 2.0N or less 4-48 UNF Thread
543-793B ID-S112TBX .0001in 0.001mm .5in 12.7mm .0001in 3/8in 2.0N or less 4-48 UNF Thread
543-795 ID-S112PMX .00005in 0.001mm .5in 12.7mm .0001in 5/16in 2.5N or less M2.5×0.45 Thread
543-795B ID-S112PMBX .00005in 0.001mm .5in 12.7mm .0001in 5/16in 2.5N or less M2.5×0.45 Thread
543-796 ID-S112PEX .00005in 0.001mm .5in 12.7mm .0001in 3/8in 2.5N or less 4-48 UNF Thread
543-796B ID-S112PEBX .00005in 0.001mm .5in 12.7mm .0001in 3/8in 2.5N or less 4-48 UNF Thread
