Mitutoyo

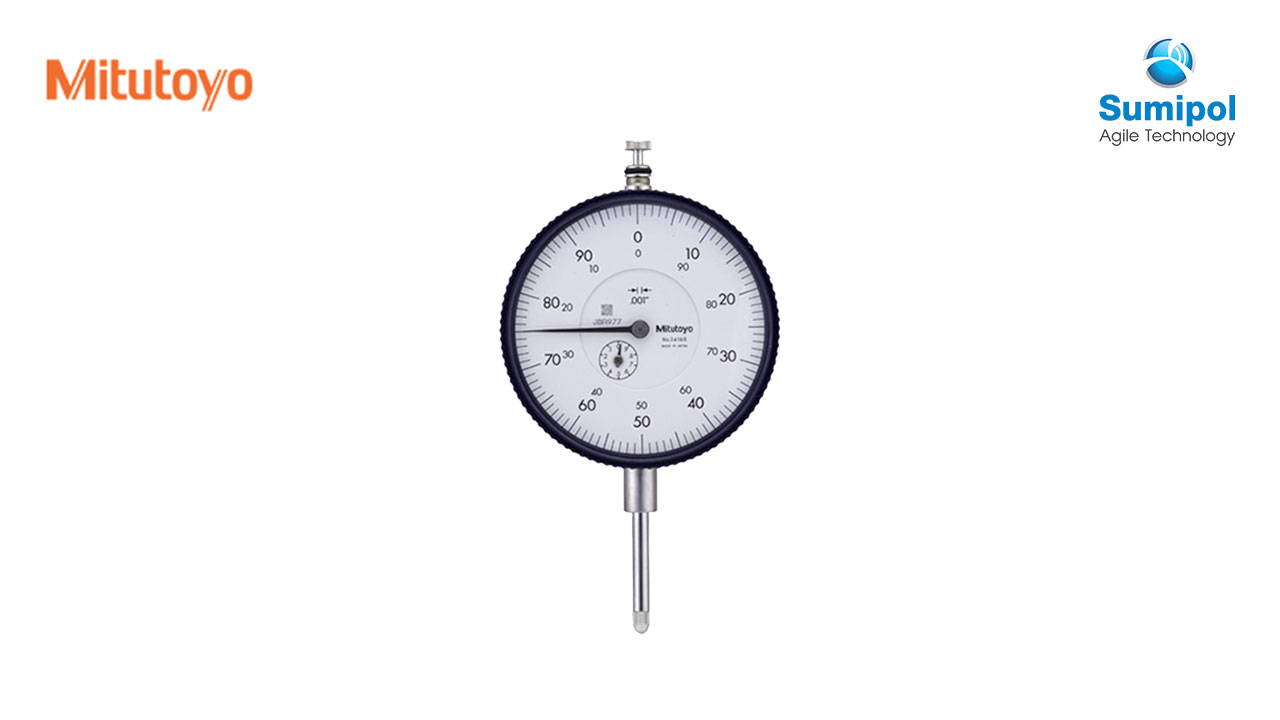

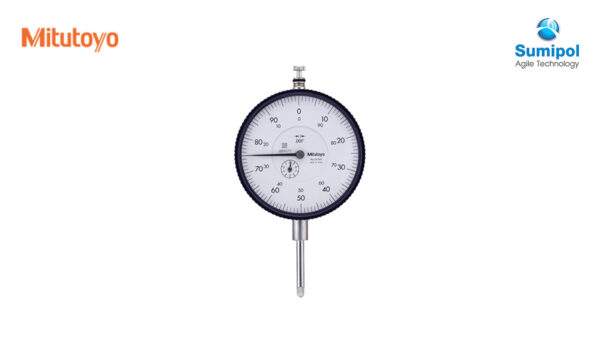

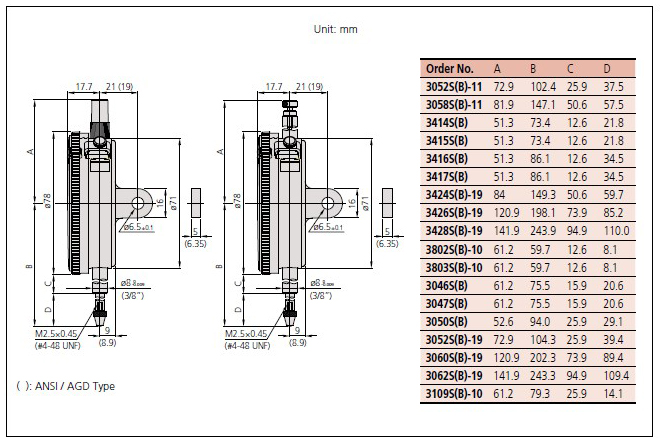

Dial Indicators Series 3-Large Dial Face
- Dial gages ที่มีหน้าปัดขนาดใหญ่ (78 มม. / 3.07 นิ้ว) เพื่อความสะดวกในการอ่าน
- ทุกประเภทมาพร้อมกับ limit pins และตัวยึดเฟรมด้านนอกตามมาตรฐาน
*ใช้งานในแนวตั้งเท่านั้น
Inch
| Graduation | Range Range/rev | Dial Reading | Order No | Accuracy First 2.5 Rev/Overall | Force | Stem | Type |
|---|---|---|---|---|---|---|---|
| .001in | .5in/.1in | ±0-100 | 3414S | .001″/.001″ | 1.8N or less | Stem 3/8in dia #4-48 UNF Thread ANSI/AGD TYPE |
w/lug |
| .001in | .5in/.1in | ±0-100 | 3414SB | .001″/.001″ | 1.8N or less | Stem 3/8in dia #4-48 UNF Thread ANSI/AGD TYPE |
Flat-back |
| .001in | .5in/.1in | 0-50-0 | 3415S | .001″/.001″ | 1.8N or less | Stem 3/8in dia #4-48 UNF Thread ANSI/AGD TYPE |
w/lug |
| .001in | .5in/.1in | 0-50-0 | 3415SB | .001″/.001″ | 1.8N or less | Stem 3/8in dia #4-48 UNF Thread ANSI/AGD TYPE |
Flat-back |
| .001in | 1in/.1in | ±0-100 | 3416S | .001″/.002″ | 1.8N or less | Stem 3/8in dia #4-48 UNF Thread ANSI/AGD TYPE |
w/lug |
| .001in | 1in/.1in | ±0-100 | 3416SB | .001″/.002″ | 1.8N or less | Stem 3/8in dia #4-48 UNF Thread ANSI/AGD TYPE |
Flat-back |
| .001in | 1in/.1in | 0-50-0 | 3417S | .001″/.002″ | 1.8N or less | Stem 3/8in dia #4-48 UNF Thread ANSI/AGD TYPE |
w/lug |
| .001in | 1in/.1in | 0-50-0 | 3417SB | .001″/.002″ | 1.8N or less | Stem 3/8in dia #4-48 UNF Thread ANSI/AGD TYPE |
Flat-back |
| .001in | 2in/.1in | ±0-100 | 3424S-19 | .001″/.003″ | 3.0N or less | Stem 3/8in dia #4-48 UNF Thread ANSI/AGD TYPE |
w/lug |
| .001in | 2in/.1in | ±0-100 | 3424SB-19 | .001″/.003″ | 3.0N or less | Stem 3/8in dia #4-48 UNF Thread ANSI/AGD TYPE |
Flat-back |
| .001in | 3in/.1in | ±0-100 | 3426S-19 | .001″/.005″ | 3.0N or less | Stem 3/8in dia #4-48 UNF Thread ANSI/AGD TYPE |
w/lug |
| .001in | 3in/.1in | ±0-100 | 3426SB-19 | .001″/.005″ | 3.0N or less | Stem 3/8in dia #4-48 UNF Thread ANSI/AGD TYPE |
Flat-back |
| .001in | 4in/.1in | ±0-100 | 3428S-19 | .001″/.005″ | 3.2N or less | Stem 3/8in dia #4-48 UNF Thread ANSI/AGD TYPE |
w/lug |
| .001in | 4in/.1in | ±0-100 | 3428SB-19 | .001″/.005″ | 3.2N or less | Stem 3/8in dia #4-48 UNF Thread ANSI/AGD TYPE |
Flat-back |
| .0001in | .025in/.01in | 0-10 | 3802S-10 | .0001″/.0001″ | 2.0N or less | Stem 3/8in dia #4-48 UNF Thread ANSI/AGD TYPE |
w/lug |
| .0001in | .025in/.01in | 0-10 | 3802SB-10 | .0001″/.0001″ | 2.0N or less | Stem 3/8in dia #4-48 UNF Thread ANSI/AGD TYPE |
Flat-back |
| .0001in | .025in/.01in | 0-5-0 | 3803S-10 | .0001″/.0001″ | 2.0N or less | Stem 3/8in dia #4-48 UNF Thread ANSI/AGD TYPE |
w/lug |
| .0001in | .025in/.01in | 0-5-0 | 3803SB-10 | .0001″/.0001″ | 2.0N or less | Stem 3/8in dia #4-48 UNF Thread ANSI/AGD TYPE |
Flat-back |
Metric
| Graduation | Range Range/rev | Dial Reading | Order No | Accuracy First 2.5 Rev/Overall | Force | Type | Stem |
|---|---|---|---|---|---|---|---|
| 0.01mm | 30mm/1mm | ±0-100 | 3052S-11 | 0.01mm/0.03mm | 2.5N or less | w/lug | Stem 3/8in dia #4-48 UNF Thread,Yellow dial face ANSI/AGD TYPE |
| 0.01mm | 30mm/1mm | ±0-100 | 3052SB-11 | 0.01mm/0.03mm | 2.5N or less | Flat-back | Stem 3/8in dia #4-48 UNF Thread,Yellow dial face ANSI/AGD TYPE |
| 0.01mm | 50mm/1mm | ±0-100 | 3058S-11 | 0.01mm/0.04mm | 3.0N or less | w/lug | Stem 3/8in dia #4-48 UNF Thread,Yellow dial face ANSI/AGD TYPE |
| 0.01mm | 50mm/1mm | ±0-100 | 3058SB-11 | 0.01mm/0.04mm | 3.0N or less | Flat-back | Stem 3/8in dia #4-48 UNF Thread,Yellow dial face ANSI/AGD TYPE |
Metric Stem ø8mm M2.5×0.45 Thread
| Graduation | Range Range/rev | Dial Reading | Order No | Type | Accuracy | Force |
|---|---|---|---|---|---|---|
| 0.01 | 10mm/1mm | 0-100 | 3046S | w/lug | 0.015 | 1.4N or less |
| 0.01 | 10mm/1mm | 0-100 | 3046SB | Flat-back | 0.015 | 1.4N or less |
| 0.01 | 10mm/1mm | 0-50-0 | 3047S | w/lug | 0.015 | 1.4N or less |
| 0.01 | 10mm/1mm | 0-100 | 3047SB | Flat-back | 0.015 | 1.4N or less |
| 0.01 | 20mm/1mm | 0-100 | 3050S | w/lug | 0.020 | 2.0N or less |
| 0.01 | 20mm/1mm | 0-100 | 3050SB | Flat-back | 0.020 | 2.0N or less |
| 0.01 | 30mm/1mm | 0-100 | 3052S-19 | w/lug | 0.025 | 2.5N or less |
| 0.01 | 30mm/1mm | 0-100 | 3052SB-19 | Flat-back | 0.025 | 2.5N or less |
| 0.01 | 50mm/1mm | 0-100 | 3058S-19 | w/lug | 0.035 | 3.0N or less |
| 0.01 | 50mm/1mm | 0-100 | 3058SB-19 | Flat-back | 0.035 | 3.0N or less |
| 0.01 | 80mm/1mm | 0-100 | 3060S-19* | w/lug | 0.045 | 3.0N or less |
| 0.01 | 80mm/1mm | 0-100 | 3060SB-19* | Flat-back | 0.045 | 3.0N or less |
| 0.01 | 100mm/1mm | 0-100 | 3062S-19* | w/lug | 0.050 | 3.2N or less |
| 0.01 | 100mm/1mm | 0-100 | 3062SB-19* | Flat-back | 0.050 | 3.2N or less |
| 0.001 | 1mm/0.2mm | 0-10-0 | 3109S-10 | w/lug | 0.0004 | 1.5N or less |
| 0.001 | 1mm/0.2mm | 0-10-0 | 3109SB-10 | Flat-back | 0.0004 | 1.5N or less |
