Mitutoyo

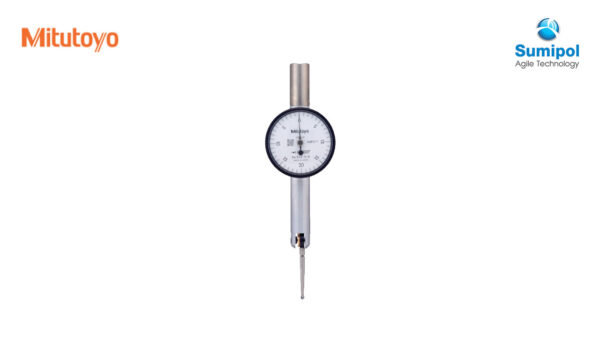

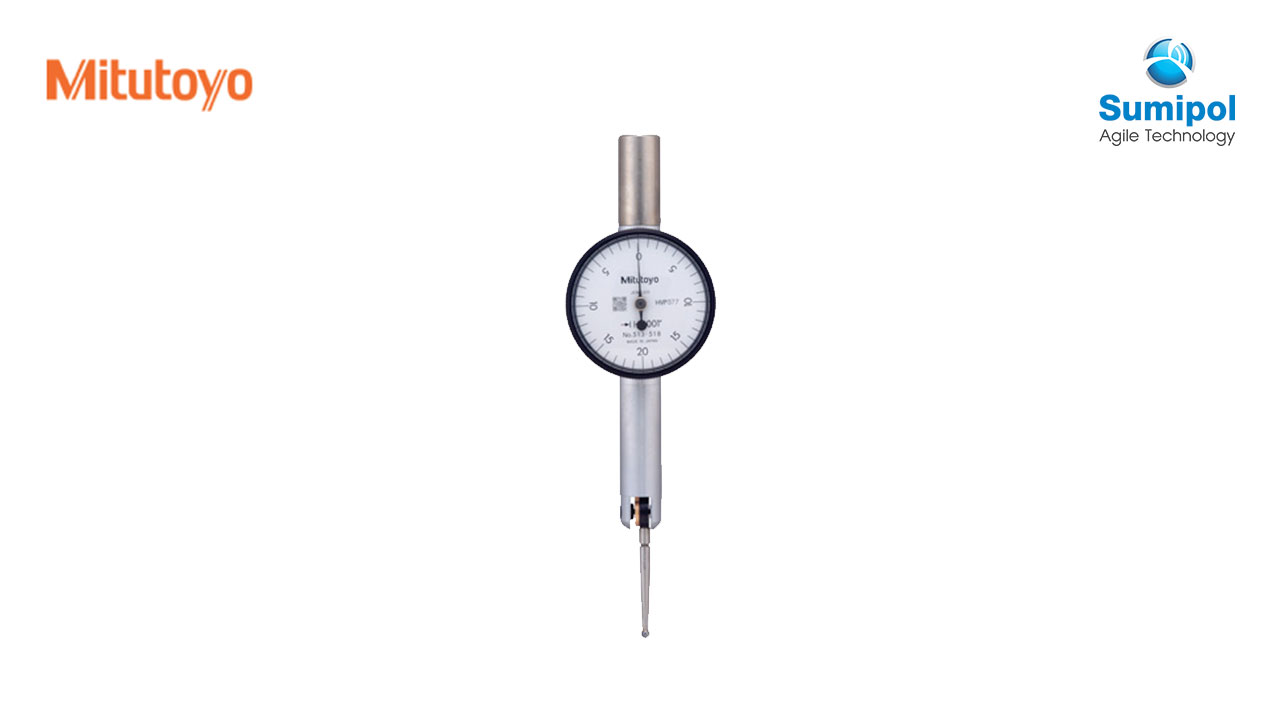

Pocket Type Dial Test Indicators
Series 513
- Jeweled bearings รับรองความไวและความแม่นยำที่สูงขึ้น
- กลับทิศทางการวัดได้ – Reversible measuring direction.
- มีอะไหล่สำหรับยึดไดอัลเกจ (holding bars) สองอัน (ครบชุดเท่านั้น)
- ขอบหน้าปัด/หน้าปัดแบบปรับได้อย่างเต็มที่
- จุดสัมผัส Contact point สามารถปรับได้ 220 °
- ขอบหน้าปัด (Bezel) ปิดด้วย O-ring เพื่อป้องกันน้ำ/น้ำมัน เข้า
Inch
Order No | Model | Grad | Range | Accuracy | Dial Reading | Measuring Force | Length |
---|---|---|---|---|---|---|---|
Set Confi:Inch | – | – | – | – | – | – | – |
513-518 | BASIC SET | .001in | .04in | .001in | 0-20-0 | .03N or less | 26.5m |
513-518T | FULL SET | .001in | .04in | .001in | 0-20-0 | .03N or less | 26.5m |
513-528 | BASIC SET | .001in | .04in | .001in | 0-20-0 | .03N or less | 18.7m |
513-528T | FULL SET | .001in | .04in | .001in | 0-20-0 | .03N or less | 18.7m |
513-512 | BASIC SET | .0005in | .02in | .0005in | 0-10-0 | .03N or less | 37.4m |
513-512T | FULL SET | .0005in | .02in | .0005in | 0-10-0 | .03N or less | 37.4m |
513-504 | BASIC SET | .0001in | .01in | .0002in | 0-5-0 | .03N or less | 18.7m |
513-504T | FULL SET | .0001in | .01in | .0002in | 0-5-0 | .03N or less | 18.7m |
Metric
Order No | Model | Grad | Range | Accuracy | Dial Reading | Measuring Force | Length |
---|---|---|---|---|---|---|---|
513-501E | BASIC SET | 0.001mm | 0.14mm | 3µm | 0-70-0 | 0.4 | 12mm |
513-501T | FULL SET | 0.001mm | 0.14mm | 3µm | 0-70-0 | 0.4 | 12mm |
513-503E | BASIC SET | 0.002mm | 0.2mm | 3µm | 0-100-0 | 0.3 | 14.7mm |
513-503T | FULL SET | 0.002mm | 0.2mm | 3µm | 0-100-0 | 0.3 | 14.7mm |
513-514E | BASIC SET | 0.01mm | 0.5mm | 10µm | 0-25-0 | 0.3 | 36.8mm |
513-514T | FULL SET | 0.01mm | 0.5mm | 10µm | 0-25-0 | 0.3 | 36.8mm |
513-515T | FULL SET | 0.01mm | 1mm | 10µm | 0-50-0 | 0.3 | 44.5mm |
513-517E | BASIC SET | 0.01mm | 0.8mm | 8µm | 0-40-0 | 0.3 | 20.9mm |
513-517T | FULL SET | 0.01mm | 0.8mm | 8µm | 0-40-0 | 0.3 | 20.9mm |
513-527E | BASIC SET | 0.01mm | 0.8mm | 8µm | 0-40-0 | 0.3 | 14.7mm |
513-527T | FULL SET | 0.01mm | 0.8mm | 8µm | 0-40-0 | 0.3 | 14.7mm |
Set Confi:Metric | – | – | – | – | – | – | – |
