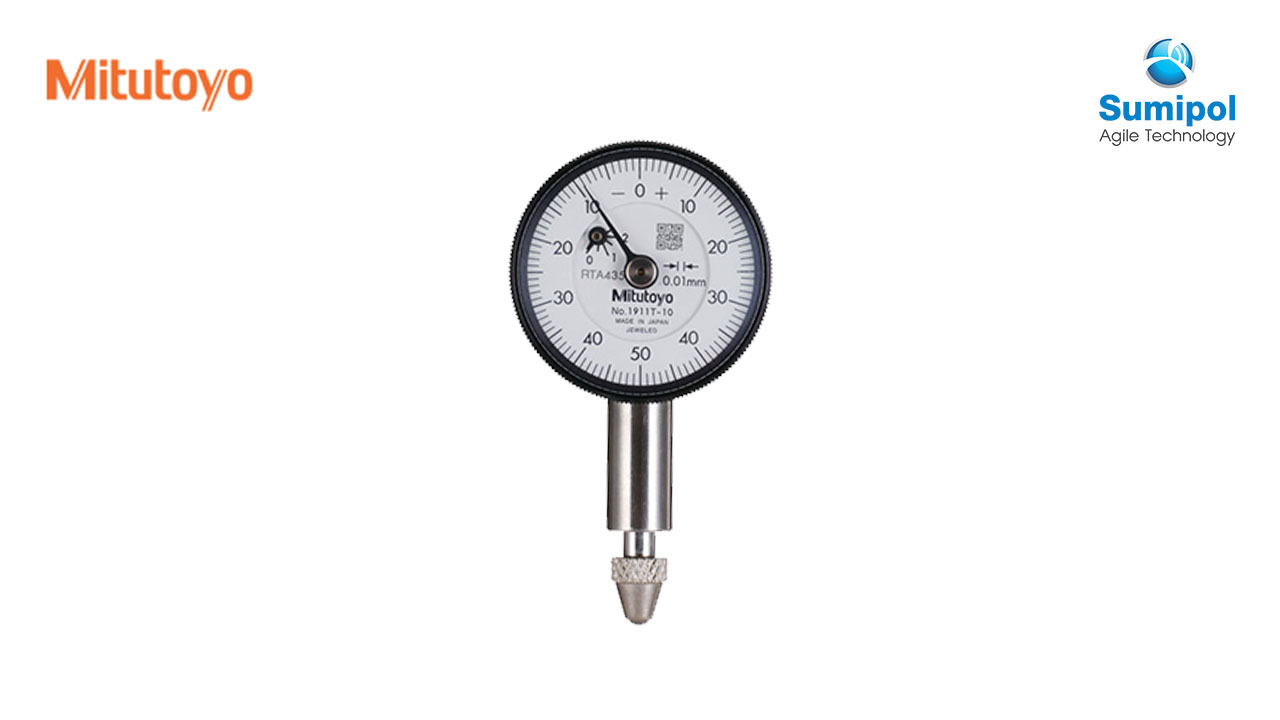

Dial Indicators Series 0-Compact type

Dial indicators ขนาดเล็ก ที่มีเส้นผ่านศูนย์กลางหน้าปัด ø31หรือ ø36มม. สำหรับการใช้งานในพื้นที่จำกัด ใน gaging jigs

Download Catalogue
หมวดหมู่: ,

Inch

Order No.
Graduation
Range
Range Per Revolution
Dial Reading
Type
Accuracy
Force
1921T-10
.001in
0-.1in
.04in
0-20-0
w/lug
Accuracy First 2.5 Rev=±.001 inch, Overall=±.001 inch
1.4N or less
1921TB-10
.001in
0-.1in
.04in
0-20-0
Flat-back
Accuracy First 2.5 Rev=±.001 inch, Overall=±.001 inch
1.4N or less
1923T-10
.0005in
0-.05in
.02in
0-10-0
w/lug
Accuracy First 2.5 Rev=±.0005 inch, Overall=±.0005 inch
1.4N or less
1923TB-10
.0005in
0-.05in
.02in
0-10-0
Flat-back
Accuracy First 2.5 Rev=±.0005 inch, Overall=±.0005 inch
1.4N or less
1925T-10
.0001in
0-.025in
.01in
0-5-0
w/lug
Accuracy First 2.5 Rev=±.0002 inch, Overall=±.0002 inch
1.4N or less
1925TB-10
.0001in
0-.025in
.01in
0-5-0
Flat-back
Accuracy First 2.5 Rev=±.0002 inch, Overall=±.0002 inch
1.4N or less

Metric

Order No.
Graduation
Range
Range Per Revolution
Dial Reading
Type
Accuracy
Force
1911T-10
0.01mm
0-2.5mm
1mm
0-50-0
w/lug
Accuracy First 2.5 Rev=±0.011mm, Overall=±0.011mm
1.4N or less
1911TB-10
0.01mm
0-2.5mm
1mm
0-50-0
Flat-back
Accuracy First 2.5 Rev=±0.011mm, Overall=±0.011mm
1.4N or less
1913T-10
0.002mm
0-0.5mm
0.2mm
0-100-0
w/lug
Accuracy First 2.5 Rev=±0.011mm, Overall=±0.011mm
1.4N or less
1913TB-10
0.002mm
0-0.5mm
0.2mm
0-100-0
Flat-back
Accuracy First 2.5 Rev=±0.011mm, Overall=±0.011mm
1.4N or less
