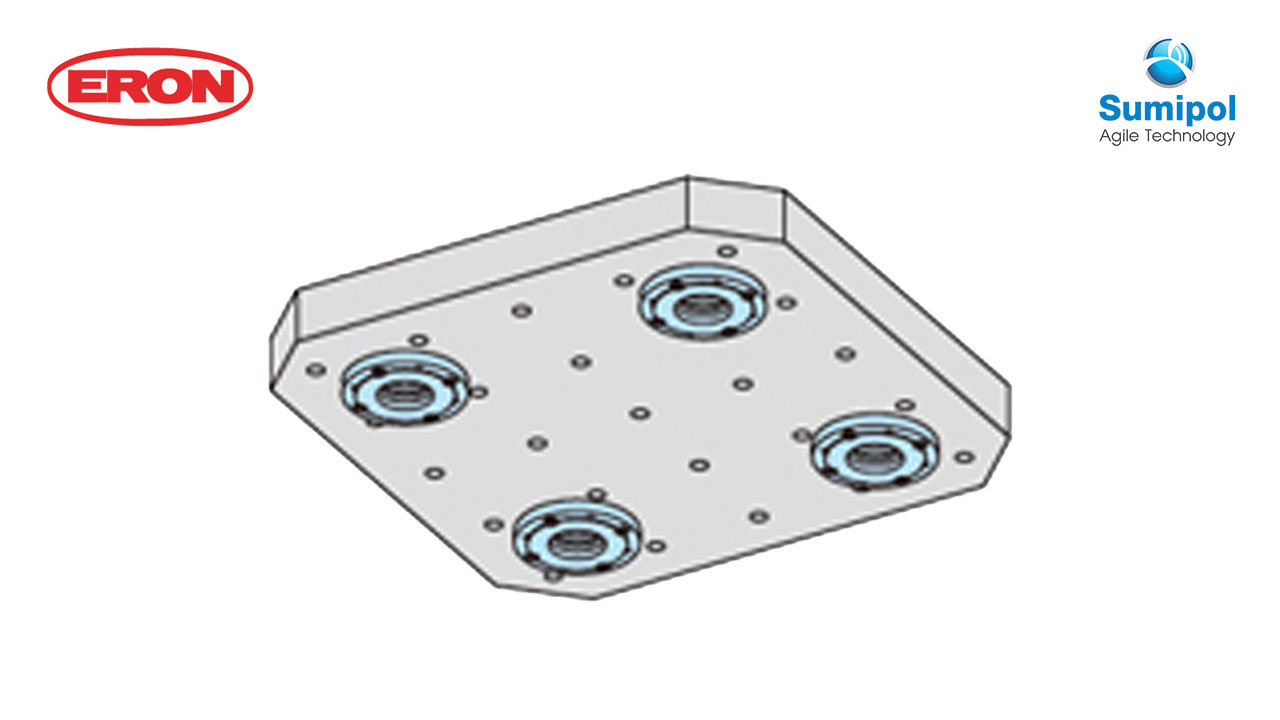

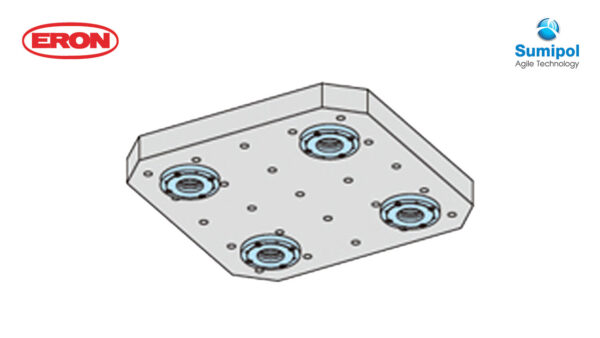

Q-LOCK ELEMENTS EMBEDDED PLATES (Tapped Hole Hydraulic Type)

Material

Plate : Medium carbon steel(S50C)
Q-lock element : CRMO(SCM420)
Height cylinder : CRMO(SCM420

Heat treatment

Q-lock element/Height cylinder : Hardened (HRC55)

Surface treatment

Q-lock element : Electroless plating
Height cylinder : Blackened

Feature

  • Pallet table with Q-lock embedded (Hydraulic type)
  • Quick locating, locking with combination of compatible bushes.
  • Location repeatability is 3 microns.
No.Locating bushClamping bushWeight (㎏)
MCQH400-40HQLA32RBQLA32CB51
MCQH500-50HQLA40RBQLA40CB96
MCQH630-50HQLA40RBQLA40CB152
