| No. | Base | Overall diameter | Mounting ole Diameter | Number of Mounting Holes | Locating pin | Dia. Pin | Clamping pin | Weight (kg) |
| TBQ400TS | 400 | 550 | φ18 | 4 | QLT26RP | QLT26DP | QLT26CP | 126 |
| TBQ500TS | 500 | 650 | φ18 | 4 | QLT26RP | QLT26DP | QLT26CP | 195 |
| TBQ630TS | 630 | 750 | φ18 | 6 | QLT32RP | QLT32DP | QLT32CP | 315 |
ERON

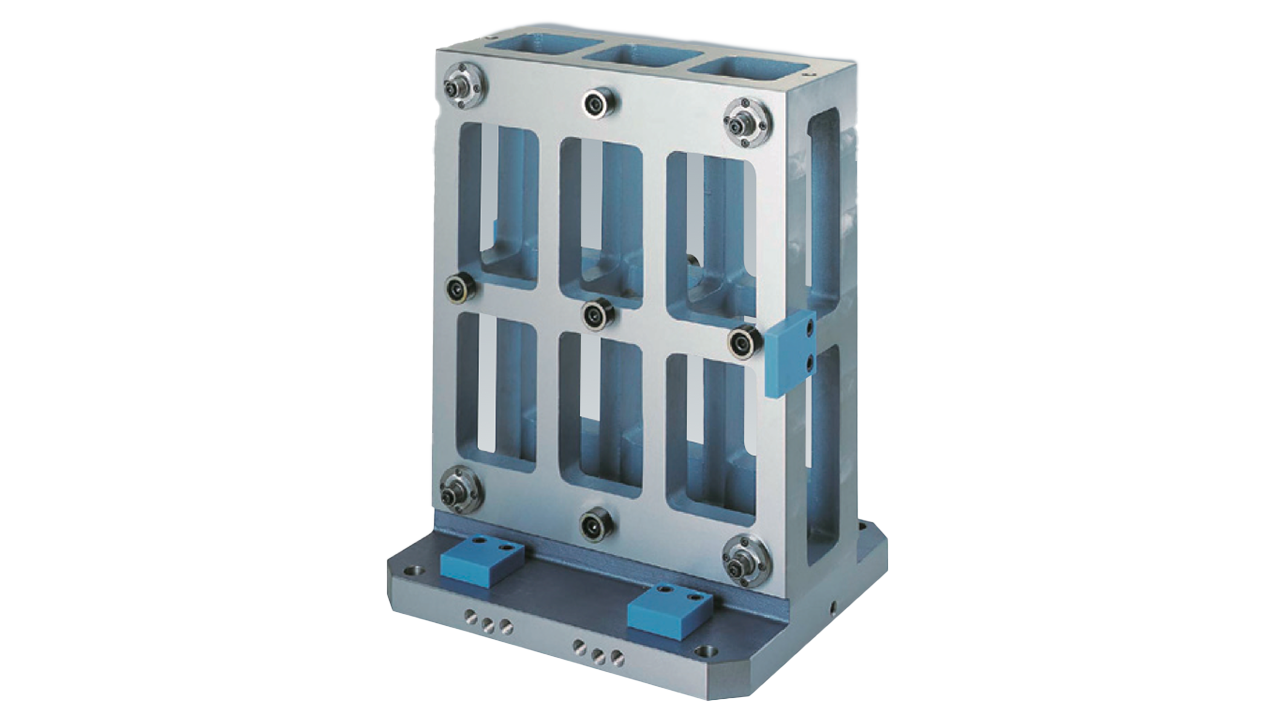

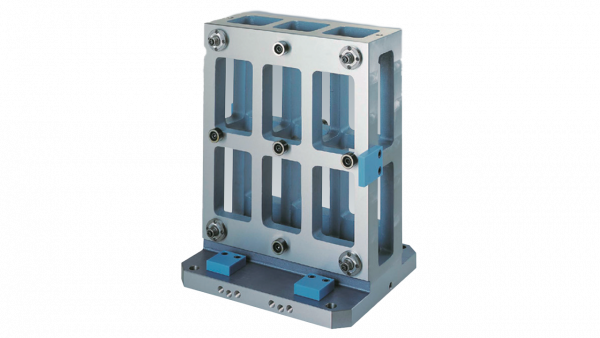

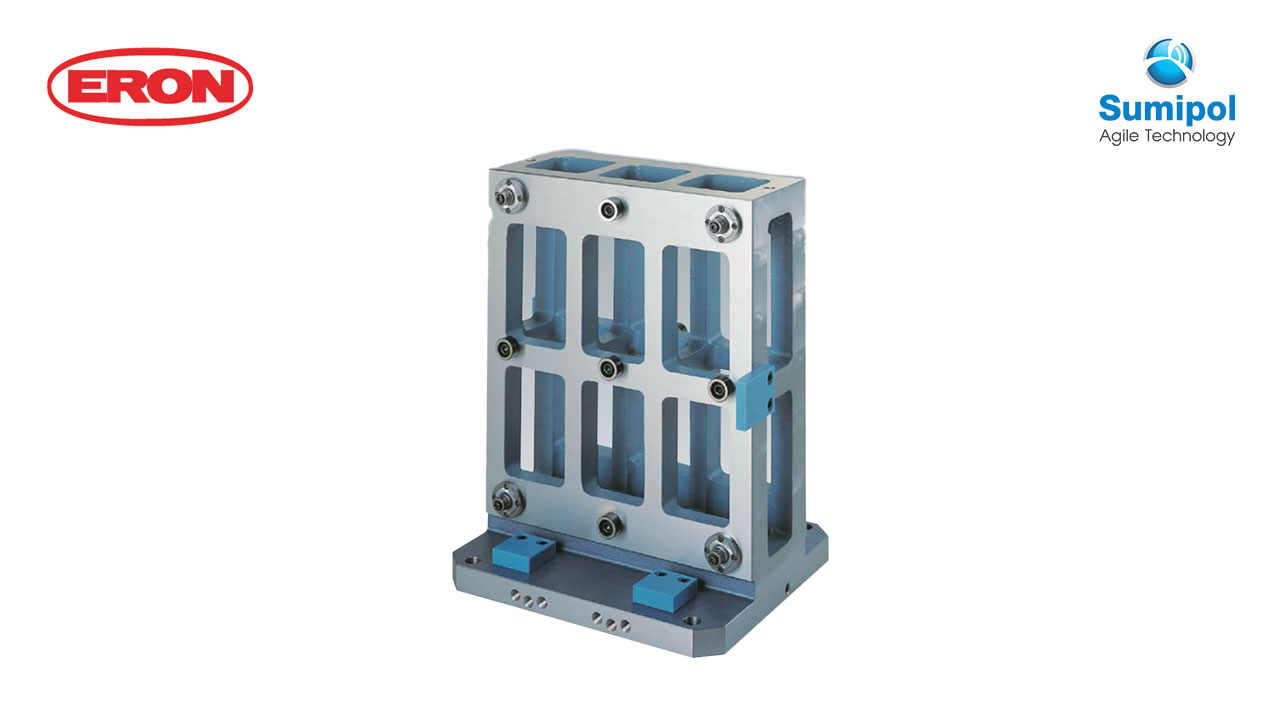

2 FACES/MC TOOLING BLOCKS WITH Q-LOCK ELEMENTS
Material
Main body：FC25
Q-Lock Element:：SCM44
Height Cylinder：SCM42
Rough Guide：MC Nylon
Bottom Surface Rough Guide：MC Nylon
Spacer：S45C
Heat treatment
Main body：Annealing
Q-Lock Element：Heat treatment (HRC55)
Height Cylinder：Heat treatment (HRC55)
Surface treatment
Main body：Painting (Cast Surface)
Q-Lock Element：Non-electrolytic Plating
Height Cylinder：Blackened
Feature
- 2-face tooling blocks with Q-Lock Elements.
- Plates can be located and clamped with one touch by combining with compatible bushes.
- The position repeatability accuracy when using E-659P Attachment Plates with Q-Lock Elements is 3 μｍ .【Accessories】Eye bolt, Top plate
