Mitutoyo

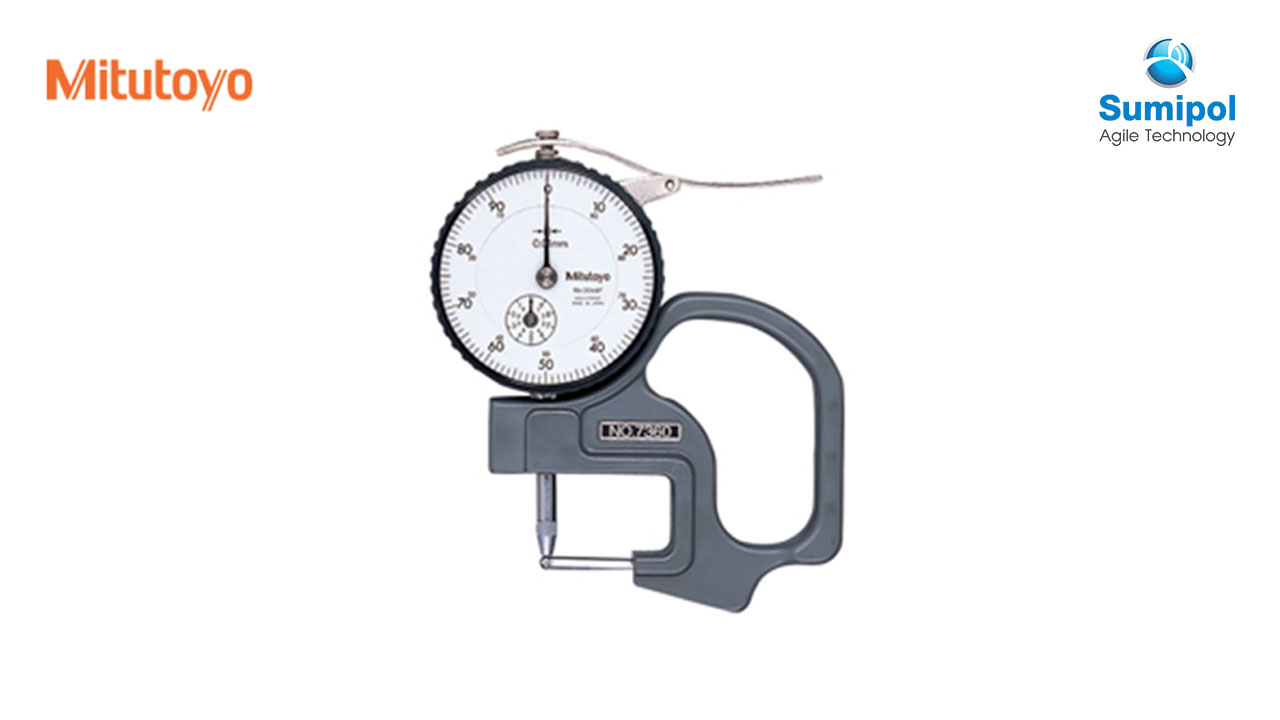

Thickness Gages – Tube Thickness Measurement

Series 547,7

เกจวัดความหนา ใช้วัดความหนาของท่อ

Optional Accessories
905338: SPC cable (40″ / 1m) for digital type
905409: SPC cable (80″ / 2m) for digital type
902794: Spindle lifting lever for IDS digimatic type (stroke .5″ / 12.7mm)
21AZB149: Spindle lifting lever for digimatic and dial thickness gage (stroke .5″ / 12.7mm)
21AZB150: Spindle lifting lever for dial indicator (stroke 1″ / 25.4mm)

Inch

Order NoRangeGraduationAccuracyForceRemarks
7361S0-.5in.001in.001inless than 1.4Tube thickness

Inch/Metric

Order NoRangeResolutionAccuracyForceIndicator
547-361S0-.47in
0-12mm
.0005in 0.01mm.001in1.5Digimatic IDC
547-561S0-.47in
0-12mm
.0005in 0.01mm.001in1.5Digimatic IDS

Metric

Order NoRangeGraduationAccuracyForceRemarks
73600-10mm0.01mm15µmless than 1.4NTube Thickness

แบบสอบถาม

Product Name : Thickness Gages – Tube Thickness Measurement
