Mitutoyo

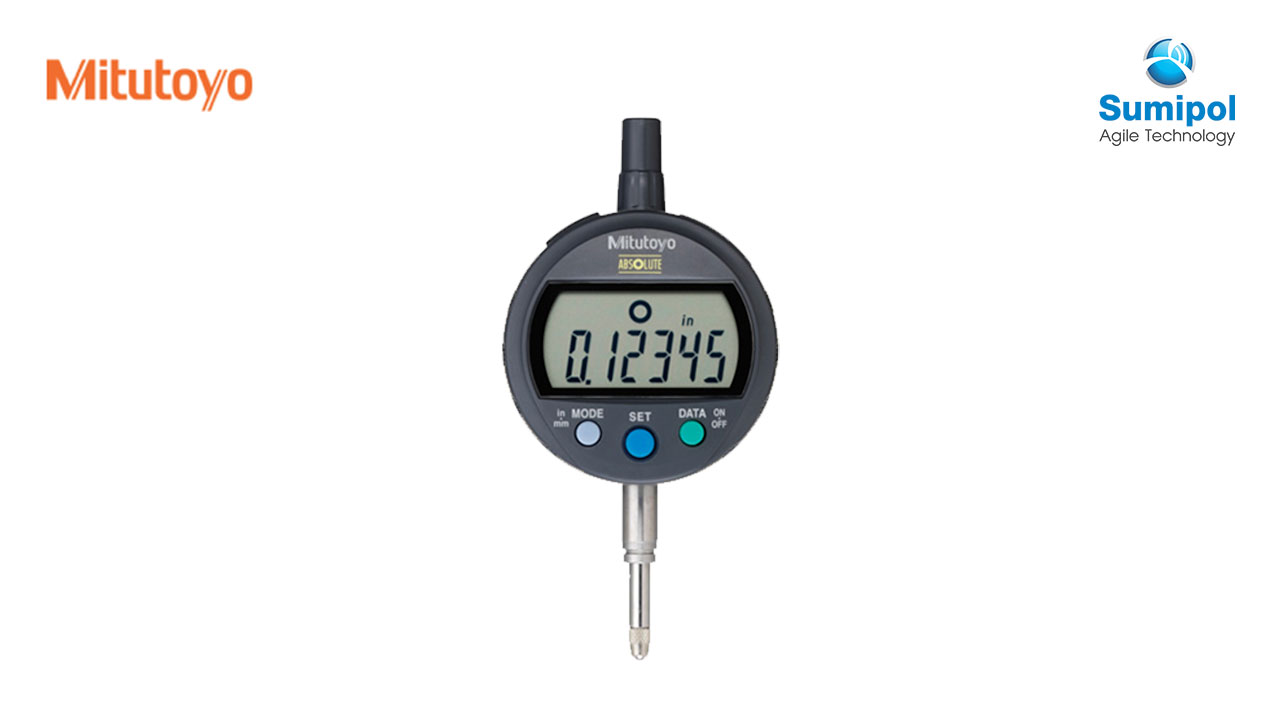

ABS Digimatic Indicator ID-CX

  • Similar in size to Series 2 dial indicators.
  • As compact as standard Series 2 dial indicators.
  • Large, easy-to-read LCD.
  • GO/±NG judgment can be performed by setting upper and lower tolerance limits. The judgment result (GO/±NG) can be displayed in full-size characters.
  • The positive/negative count resulting from the spindle’s up/down movement can be toggled.
  • Internal calculations using the simple formula of [F(x)=Ax)] are available
  • Employing the ABSOLUTE linear encoder, the ID-C always displays the spindle “Absolute Position” from the origin at power-on. Also unlimited response speed eliminates over-speed errors.
  • The ID-C indicator face can be rotated 330° to an appropriate angle for easy reading.
Categories: ,

Technical Data
Accuracy: Refer to the list of specifications.
Resolution: 0.01mm, 0.001mm, .0005″/0.01mm, .0001”/0.001mm or .00005”/0.001mm
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance type linear encoder
Max. Response speed: Unlimited
Measuring force: Refer to the list of specifications
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 5,000 hours under normal use
Dust/Water protection level: IP42 or IP53 (dust-proof type)
