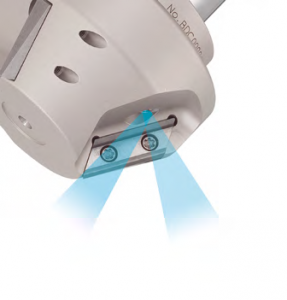

Coolant delivery features (30°, 45° and 60° models)
Uses adjustable coolant nozzles. So you can set the direction to match the desired point. With the sharpness of the inserts combined with the accurate coolant supply, the work surface is beautiful. No worries even when milling tough materials that are difficult to machine. Can deburring materials that are difficult to cut or materials that are easily fused.
Reduced number of chucks and milling time

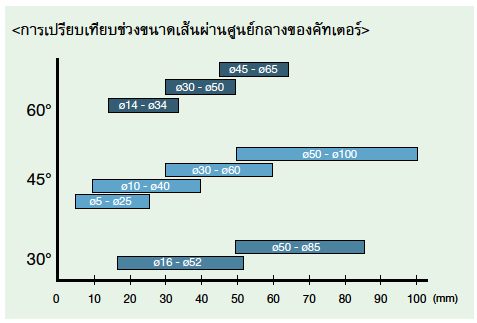

A wide deburring range reduces the number of chucks and knife changes. This results in efficient use of the magazine pot and shortens milling time.
Stable milling with double screw
Long rectangular insert for deburring. and uses two screws to hold it firmly for stable milling.

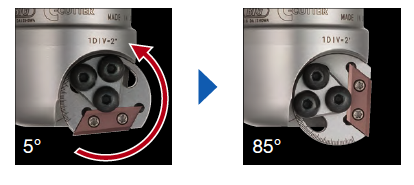

Chamfering angle can be easily adjusted by 5° to 85°.

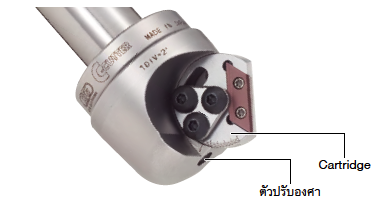

When using a hex wrench to turn the angle adjuster, the cartridge will rotate accordingly. The chamfering angle can be adjusted from 5° to 85° by adjusting the position of the scale. Cartridge to match the marking point on the body.
