Mitutoyo

CAN SEAM MICROMETER

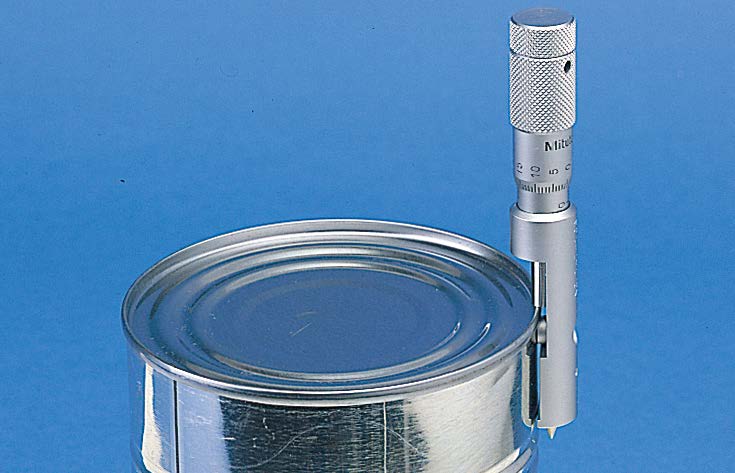

Dedicated to measuring the edge height etc. of can seams

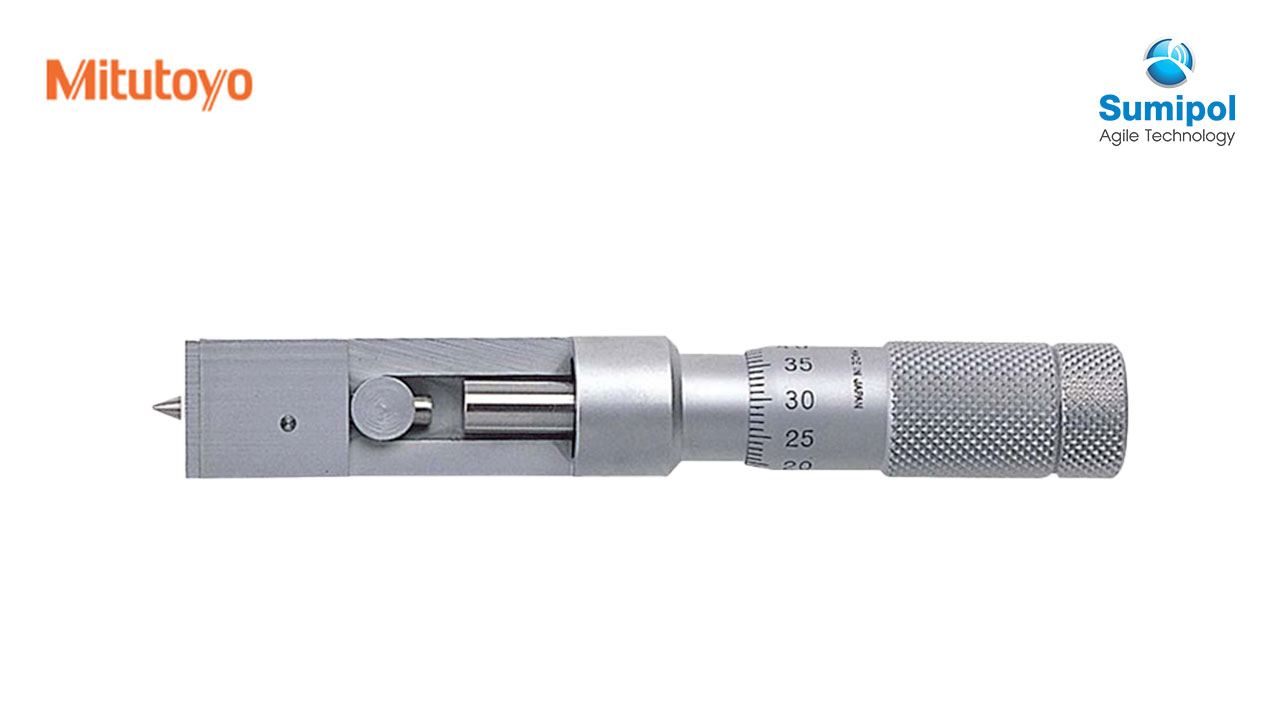

Can Seam Micrometers SERIES 147

This Can Seam Micrometer allows you to measure different types of can seams.
It offers the following benefits:

  • Designed to measure the width, height and depth of can seams.
  • Three types are available, for steel, aluminium and spray cans.

CAN SEAM MICROMETER

Standard Accessories
Spanner (200168), 1 pc.
Spanner (202863), 1 pc.


SPECIFICATIONS

Metric

Order No.
Range (mm)
Graduation (mm)
Maximum permissible error JMPE (µm)
Remarks
147-103
0-13
0.01
±3
for steel cans
147-105
for aluminum cans
147-202
for spray cans

Inch

Order No.
Range (in)
Graduation (in)
Maximum permissible error JMPE (in)
Remarks
147-103
0 – 0.5
0.001
±0.00015
for steel cans
147-105
for aluminum cans
147-202
for spray cans
