PATLITE

NE-USB – USB Controlled Multicolor Signal Beacon

USB Bus Power & Easy Control

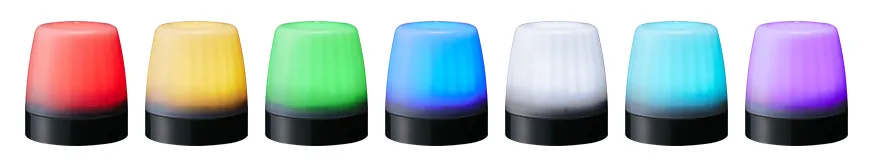

Multi-color: 7 colors can be displayed to meet your application requirements.

Product Features

NE-USB



  • Supply power through bus power and controls with one cable when connected to a PC.
  • Easy programming using the DLL software library.
    It can also be controlled by various protocols, so operating systems other than Windows can be used.
  • Control is possible without installing dedicated drivers because it is an HID class device.
  • Ideal for office and retail applications. Get gentle yet noticeable notification with the soft light from the translucent lens and alarms that are easy on the ear.
  • Neodymium magnet type allows easy installation on desks and walls.
    In addition, the 1/4 inch screw receptacle supports a wide range of mounting methods such as tripods. ※NE-SN-USB
  • Pole mount and wall mount options available (NE-001D for pole-mounting and NE-002D wall-mounting).
※A USB cable (type A male to type C male) is not provided. To be obtained separately by the customer.
※Programming knowledge required to control unit from PC via USB port.

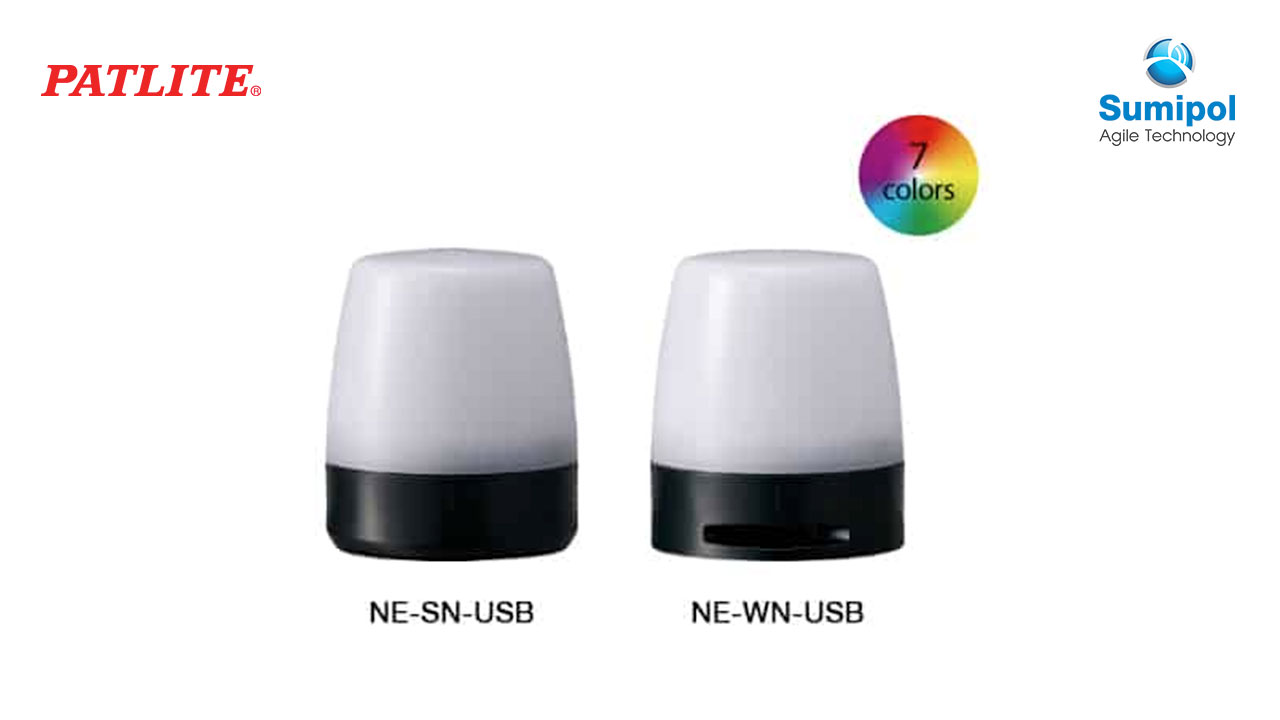

Model NE-SN-USB NE-WN-USB
Rated Voltage 5V DC (USB Bus Power)
Size Φ56
Protection Rating IP 20 IP 65 (Upright)
Installation Example snマグネット取付イメージ sn三脚取付イメージ wnNE-002Dイメージ wnポール取付イメージ
Magnet mounting 1/4-inch screw mounting
※Please obtain tripod
separately.
Wall mounting bracket Pole mounting
(pole bracket)
