NON ROTATING SPINDLE/ INTERCHANGEABLE TYPE UNIVERSAL MICROMETER

Supports measurement of various shapes with 7 types of interchangeable anvils.

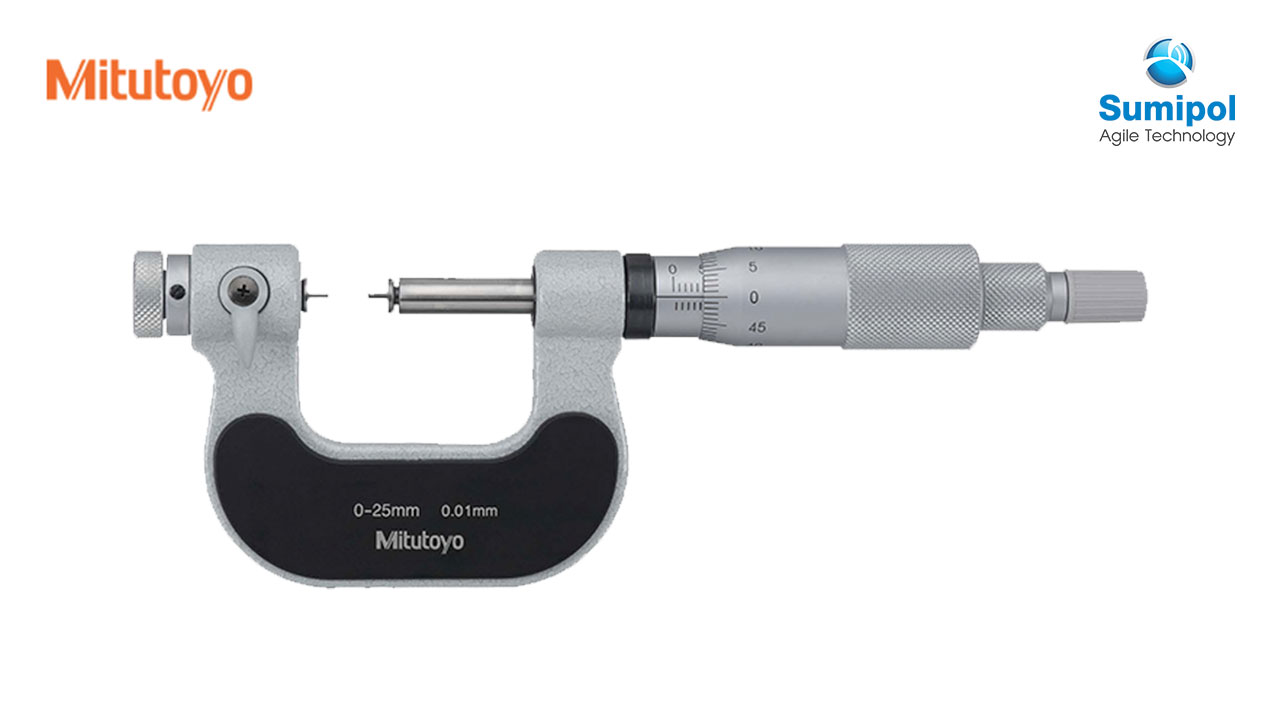

Universal Micrometer SERIES 116 — Interchangeable Anvil Type

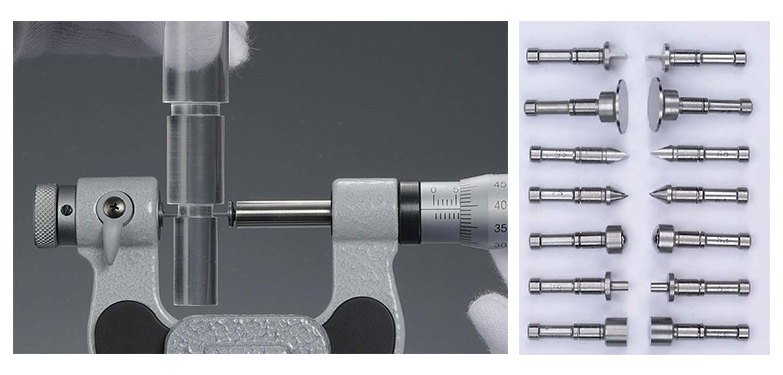

  • Non-rotating spindle type which accepts seven forms of optional interchangeable anvil / spindle tip (flat, spline, spherical, point, knife-edge, disk, and blade) for a wide range of applications.
  • Equipped with Ratchet Stop for constant measuring force.
  • Interchangeable anvils / spindle tips are optional.

NON ROTATING SPINDLE & INTERCHANGEABLE TYPE UNIVERSAL MICROMETER

Standard Accessories : Spanner (301336), 1 pc.

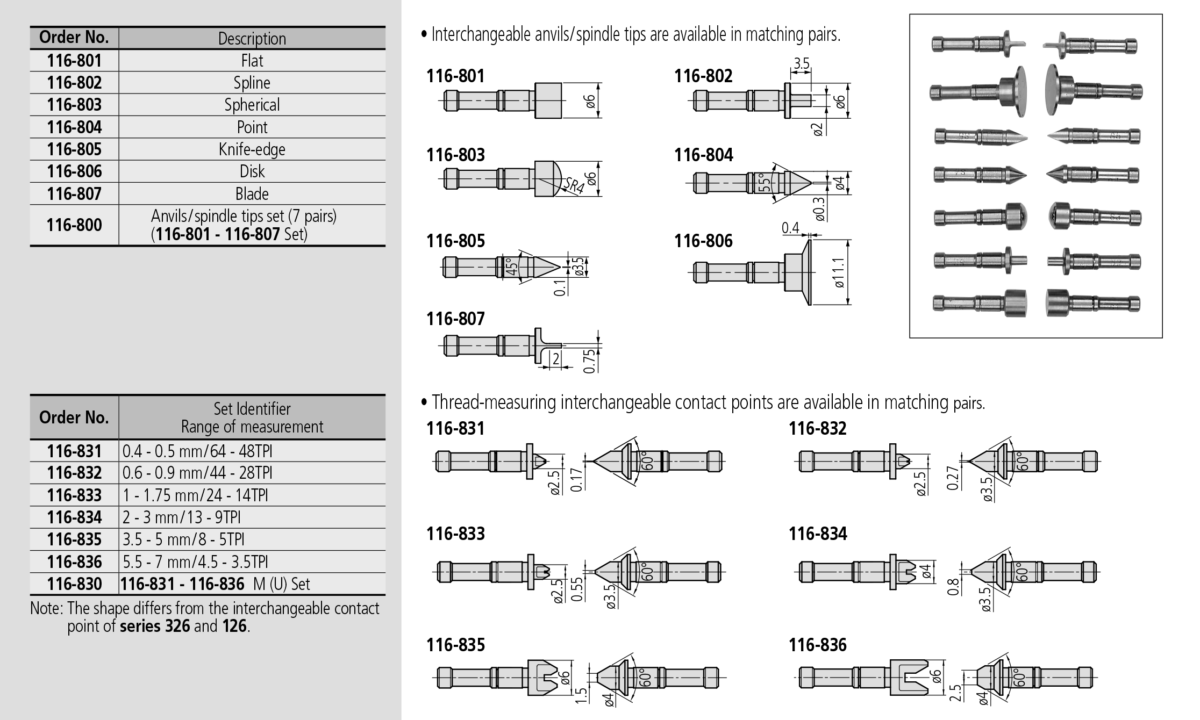

Optional Accessories

  • Interchangeable anvils/spindle tips are available in matching pairs.
  • Thread-measuring interchangeable contact points are available in matching pairs.

NON-ROTATING-SPINDLE-&-INTERCHANGEABLE-TYPE-UNIVERSAL-MICROMETER-3


SPECIFICATIONS
Metric

Order No.
Range (mm)
Graduation (mm)
Spindle feed error (μm)
116-101-10
0 – 25
0.01
3
116-102-10*
25 – 50

* Provided with a plain setting standard (167-101) and a 60°-thread setting standard (167-261) for adjusting the minimum range point according to the application.



Inch

Order No.
Range (in)
Graduation (in)
Spindle feed error (in)
116-105-10
0 – 1
0.001
0.00015
116-106-10*
1 – 2

* Provided with a plain setting standard (167-141) and a 60°-thread setting standard (167-294) for adjusting the minimum range point according to the application.
