Q-LOCK-ELEMENTS-PINS-02
ERON

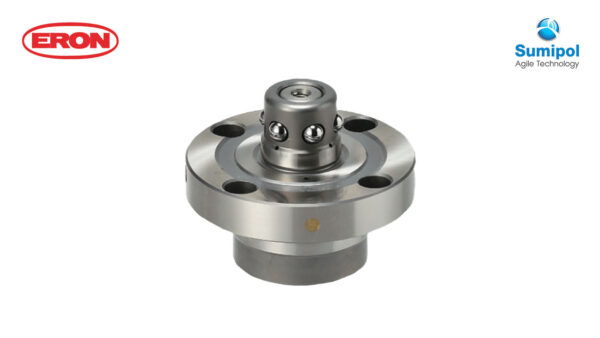

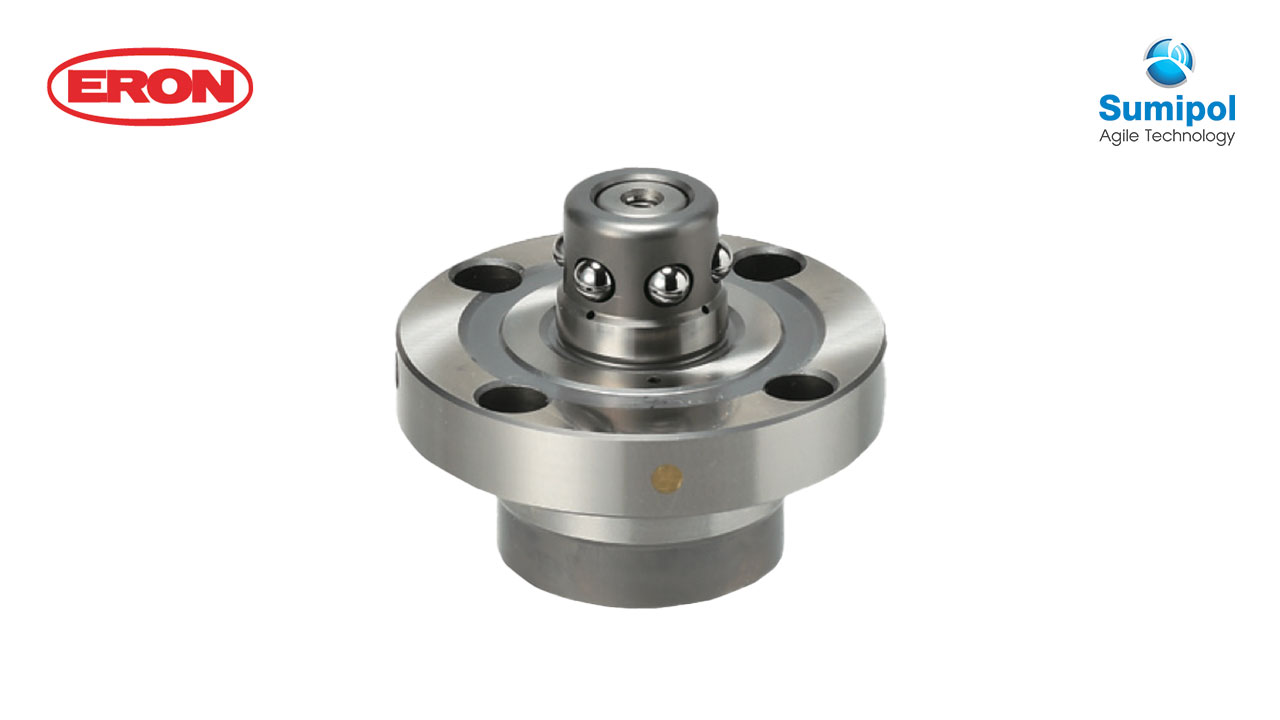

Q-LOCK ELEMENTS PINS (Pneumatic Type, Double Action)

Material
Main body: Stainless steel(SUS440C)

Heat treatment
Main body: Hardened(HRC55)

Feature

  • Double action (clamping by air)
  • Air blowing, checking seating
  • Suitable for light cutting on vertical machining centers.
  • Both clamp, and un-clamp are by pneumatic power.
  • By switching of electronic valve, automatic exchanges of jigs can be arranged.
  • System construction is easy by taking use of air piping in factory.
Download Catalogue
Categories: ,
Usage

  • Clamp, and unclamp the exchanged jigs with small workpieces by valve operations.

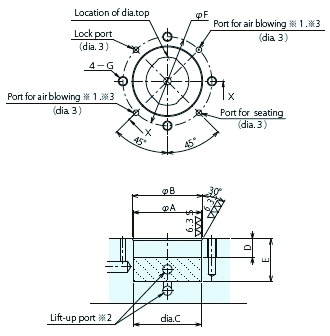

Dimensions of mounting process

※Need to machine tapped, port holes to follow the directions of dia. By checking the relations between top position of dia. and tapped holes.。

※1.There are 2 air-blowing ports and take use of one.
※2.Lift-up port must within area.
※3.O-ring contacted surface must be without burrs(roughness 6.33 or under).







Specifications

Drive system Clamping Pneumatic
Un-clamp
№ QLA19D QLA26D QLA32D
Clamping force (kN) at 0.5MPa 1 1.5 2.4
Lift up force(kN) at 0.5MPa 0.28 0.36 0.62
Clamping stroke(mm) 4 4.5 5
Lift-up amount (mm) 1
Cylinder volume(cm3) Clamping side 2.6 3.65 6.2
Un-clamp side 2.7 3.85 6.76
Max. working pressure(MPa) 1
Min. working pressure(MPa) 0.4
Proof pressure(MPa) 1.5
Recommended air blowing pressure(MPa) 0.5
Fluid Dry air
Ambient temperature (℃) 0～65
Weight(kg) 0.23 0.3 0.63

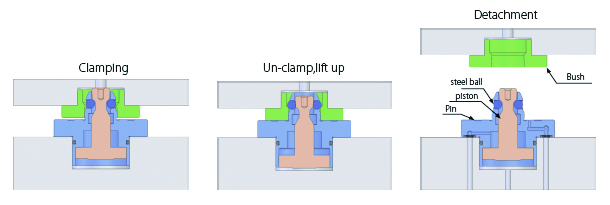

Structural drawing



Type № OUTER
DIAMETER		 PIN
DIAMETER		 Overall
diameter		 Weight (Kg)
Locating pin QLA19DRP 54 10 42.5 0.23
Locating pin QLA26DRP 60 12 53 0.3
Locating pin QLA32DRP 72 14 65.5 0.63
Dia. Pin QLA19DDP 54 10 42.5 0.23
Dia. Pin QLA26DDP 60 12 53 0.3
Dia. Pin QLA32DDP 72 14 65.5 0.63
Clamping pin QLA19DCP 54 10 42.5 0.23
Clamping pin QLA26DCP 60 12 53 0.3
Clamping pin QLA32DCP 72 14 65.5 0.63
