STUD-BOLTS-02
ERON

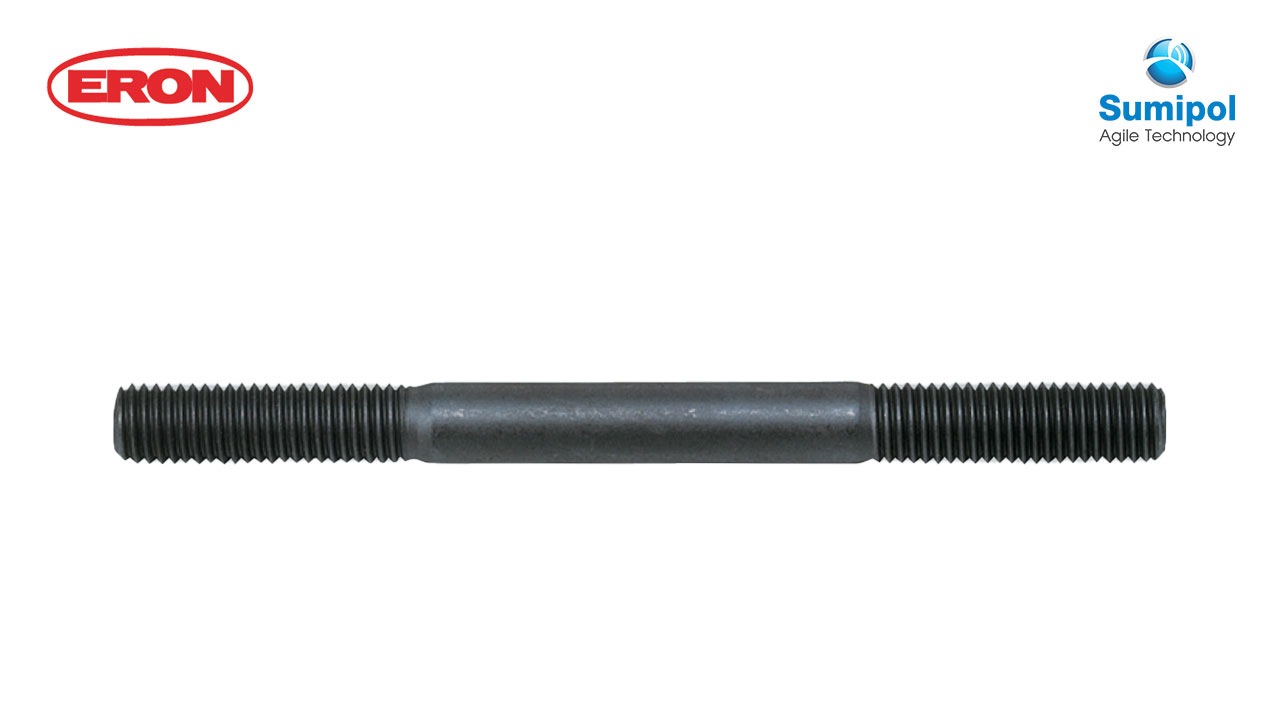

STUD BOLTS

Material : S45C

Heat treatment : HRC3 ± 5 HEAT TREATMENT

Surface treatment : BLACKENED

Download Catalogue
Categories: ,
No. Screw Diameter (Coarse Thread) Total length Weight(g)
BM00850 M8x1.25 50 20
BM00875 M8x1.25 75 30
BM08100 M8x1.25 100 40
BM08125 M8x1.25 125 50
BM08150 M8x1.25 150 60
BM08175 M8x1.25 175 70
BM08200 M8x1.25 200 80
BM01050 M10x1.5 50 31
BM01075 M10x1.5 75 47
BM10100 M10x1.5 100 63
BM10125 M10x1.5 125 78
BM10150 M10x1.5 150 94
BM10175 M10x1.5 175 109
BM10200 M10x1.5 200 125
BM01250 M12x1.75 50 35
BM01275 M12x1.75 75 55
BM12100 M12x1.75 100 70
BM12125 M12x1.75 125 95
BM12150 M12x1.75 150 115
BM12175 M12x1.75 175 140
BM12200 M12x1.75 200 160
BM12225 M12x1.75 225 180
BM12250 M12x1.75 250 200
BM12300 M12x1.75 300 240
BM12350 M12x1.75 350 285
BM12400 M12x1.75 400 330
BM12450 M12x1.75 450 375
BM12500 M12x1.75 500 420
BM01450 M14x2 50 61
BM01475 M14x2 75 92
BM14100 M14x2 100 123
BM14125 M14x2 125 153
BM14150 M14x2 150 184
BM14175 M14x2 175 215
BM14200 M14x2 200 246
BM14225 M14x2 225 276
BM14250 M14x2 250 367
BM14300 M14x2 300 369
BM14350 M14x2 350 430
BM14400 M14x2 400 492
BM01675 M16x2 75 120
BM16100 M16x2 100 160
BM16125 M16x2 125 200
BM16150 M16x2 150 241
BM16175 M16x2 175 281
BM16200 M16x2 200 321
BM16225 M16x2 225 361
BM16250 M16x2 250 401
BM16300 M16x2 300 482
BM16350 M16x2 350 562
BM16400 M16x2 400 643
BM16450 M16x2 450 723
BM16500 M16x2 500 803
BM01875 M18x2.5 75 152
BM18100 M18x2.5 100 203
BM18125 M18x2.5 125 254
BM18150 M18x2.5 150 305
BM18175 M18x2.5 175 356
BM18200 M18x2.5 200 406
BM18225 M18x2.5 225 457
BM18250 M18x2.5 250 508
BM18300 M18x2.5 300 610
BM18350 M18x2.5 350 712
BM18400 M18x2.5 400 813
BM18450 M18x2.5 450 915
BM18500 M18x2.5 500 1017
BM02075 M20x2.5 75 188
BM20100 M20x2.5 100 251
BM20125 M20x2.5 125 314
BM20150 M20x2.5 150 376
BM20175 M20x2.5 175 439
BM20200 M20x2.5 200 502
BM20225 M20x2.5 225 565
BM20250 M20x2.5 250 628
BM20300 M20x2.5 300 753
BM20350 M20x2.5 350 879
BM20400 M20x2.5 400 1004
BM20450 M20x2.5 450 1130
BM20500 M20x2.5 500 1256
BM02275 M22x2.5 75 227
BM22100 M22x2.5 100 303
BM22125 M22x2.5 125 379
BM22150 M22x2.5 150 455
BM22175 M22x2.5 175 531
BM22200 M22x2.5 200 607
BM22250 M22x2.5 250 759
BM22300 M22x2.5 300 911
BM22350 M22x2.5 350 1063
BM22400 M22x2.5 400 1215
BM22450 M22x2.5 450 1367
BM22500 M22x2.5 500 1519
BM02475 M24x3 75 271
BM24100 M24x3 100 361
BM24125 M24x3 125 452
BM24150 M24x3 150 542
BM24175 M24x3 175 633
BM24200 M24x3 200 723
BM24250 M24x3 250 904
BM24300 M24x3 300 1085
BM24350 M24x3 350 1266
BM24400 M24x3 400 1446
BM24450 M24x3 450 1627
BM24500 M24x3 500 1808
BM30200 M30x3.5 200 1100
BM30250 M30x3.5 250 1380
BM30300 M30x3.5 300 1650
BM30350 M30x3.5 350 1930
BM30400 M30x3.5 400 2200
BM30450 M30x3.5 450 2480
BM30500 M30x3.5 500 2760
BM30550 M30x3.5 550 3030
BM30600 M30x3.5 600 3310
BM30650 M30x3.5 650 3580
BM30700 M30x3.5 700 3860
BM30750 M30x3.5 750 4130
BM30800 M30x3.5 800 4410
BM30850 M30x3.5 850 4680
BM30900 M30x3.5 900 4960
BM30950 M30x3.5 950 5240
BM301000 M30x3.5 1000 5510
