Fast, accurate measurements for large-scale applications
optimize workflow productivity for large-scale metrology applications including, but not limited to, assembly alignment, part and assembly inspection, machine installation and alignment, and reverse engineering.
High accuracy, portable large volume measurement up to 80 meters.
Large part inspection, assembly alignment, machine calibration.
LARGE-SCALE, 3D MEASUREMENT IS NOW FASTER AND EASIER THAN EVER WITH FARO LASER TRACKERS
FARO Vantage® Laser Trackers optimize workflow productivity for large-scale metrology applications including, but not limited to, assembly alignment, part and assembly inspection, machine installation and alignment, and reverse engineering.
The FARO Vantage Laser Trackers are high-performance, high-value laser trackers that allow users to maximize productivity and reduce inspection cycle times by 50% to 75%. So these laser trackers set the standard in workflow productivity management for metrology applications.
Vantage Laser Tracker Features
Both compact and portable; the Vantage line of laser trackers offers an array of amazing features:
ActiveSeekTM Technology : Follow a moving target, even behind obstructions, with the industry’s widest field of view.

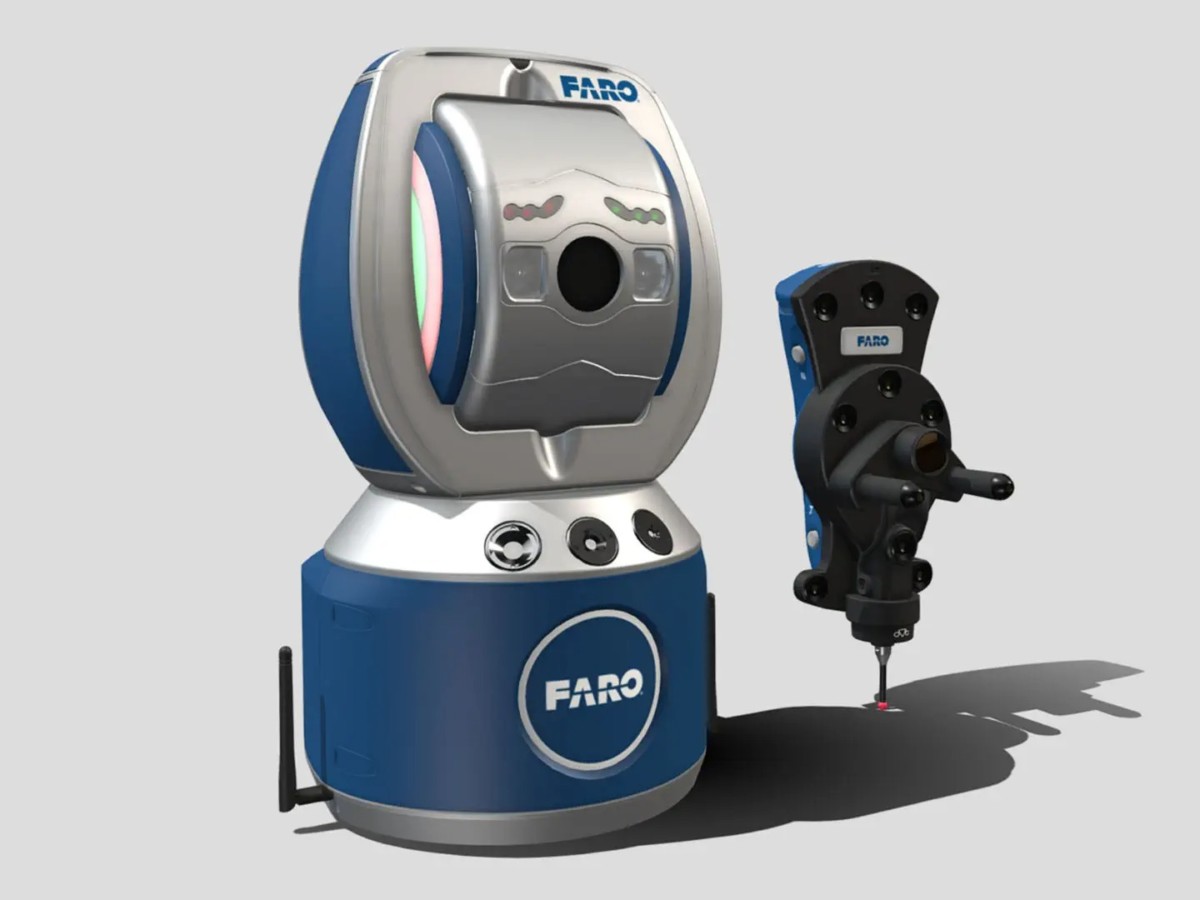

6Probe : Use the handheld 6Probe with interchangeable styli for 6DoF measurement — the ability to measure hidden areas that are not in the direct line of sight.
Fast Data Acquisition : Capture data quickly for high-speed motion control and high-density scanning.
Integrated Absolute Distance Measurement System (iADM) : Ensure reliable distance and angle measurement with a single beam, Class 1 (eye-safe) laser system.
RemoteControlsTM Workflow : Control the laser tracker with a mobile device.
Exceptional Portability : Use in any environment and ship easily.
Proven Resistance : Know that Vantage Laser Trackers can withstand shock, vibration, temperature cycle and humidity.
Hot-swappable Battery : Just swap a battery to operate continuously.
Integrated Wi-Fi : Operate without cables.
Versatile Mounting : Set up in nearly any configuration.
Integrated Weather Station : Ensure accuracy in any atmospheric condition.
Vantage Laser Trackers By Performance Level

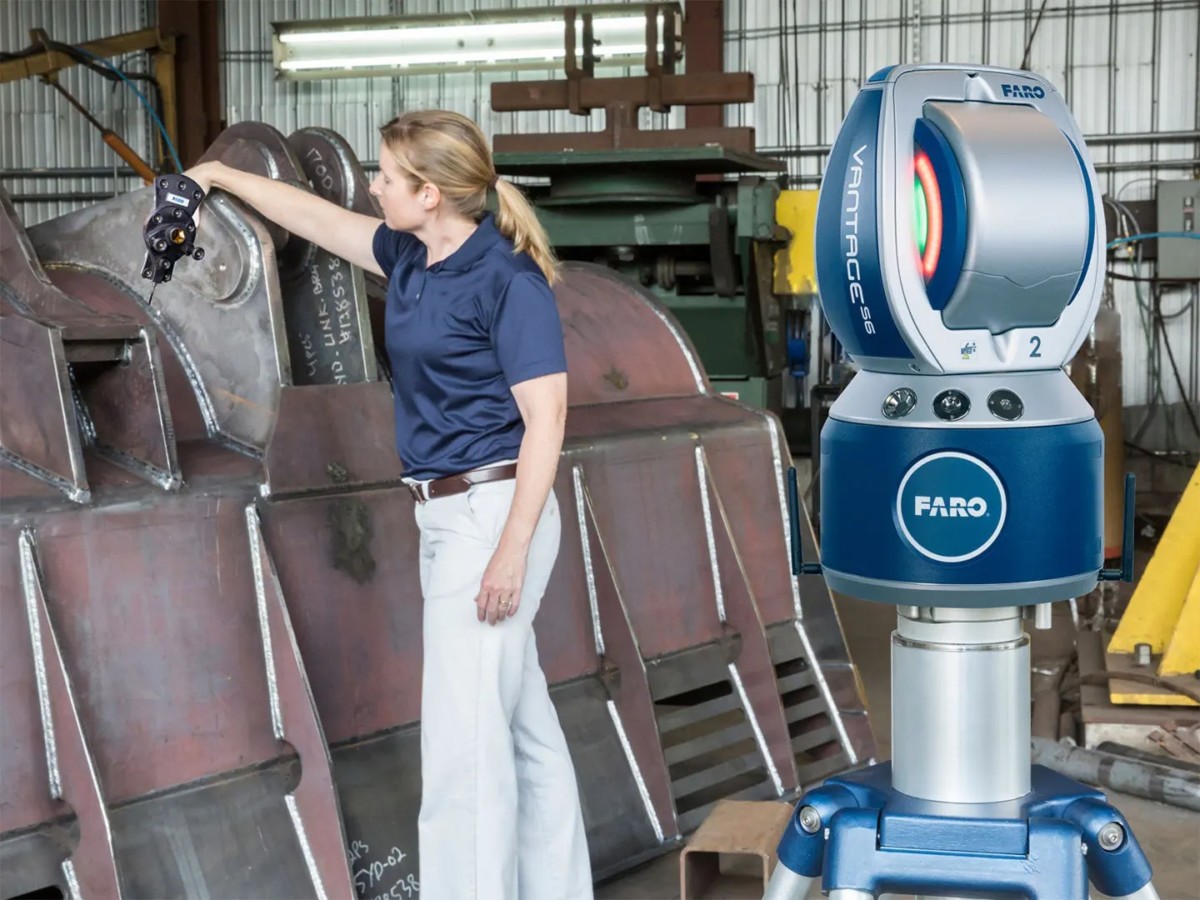

VANTAGES6 LASER TRACKER / Highest Level of 3DoF and 6DoF Performance
This top-performing laser tracker offers a measurement range of up to 80m with a spherically mounted retroreflector (SMR) and has six degrees of freedom (6DoF) probing capability for maximum inspection throughput.
VANTAGEE6 LASER TRACKER / Standard Level of 3DoF and 6DoF Performance
This laser tracker offers a measurement range of up to 35m with an SMR and has 6DoF probing capability for maximum inspection throughput.

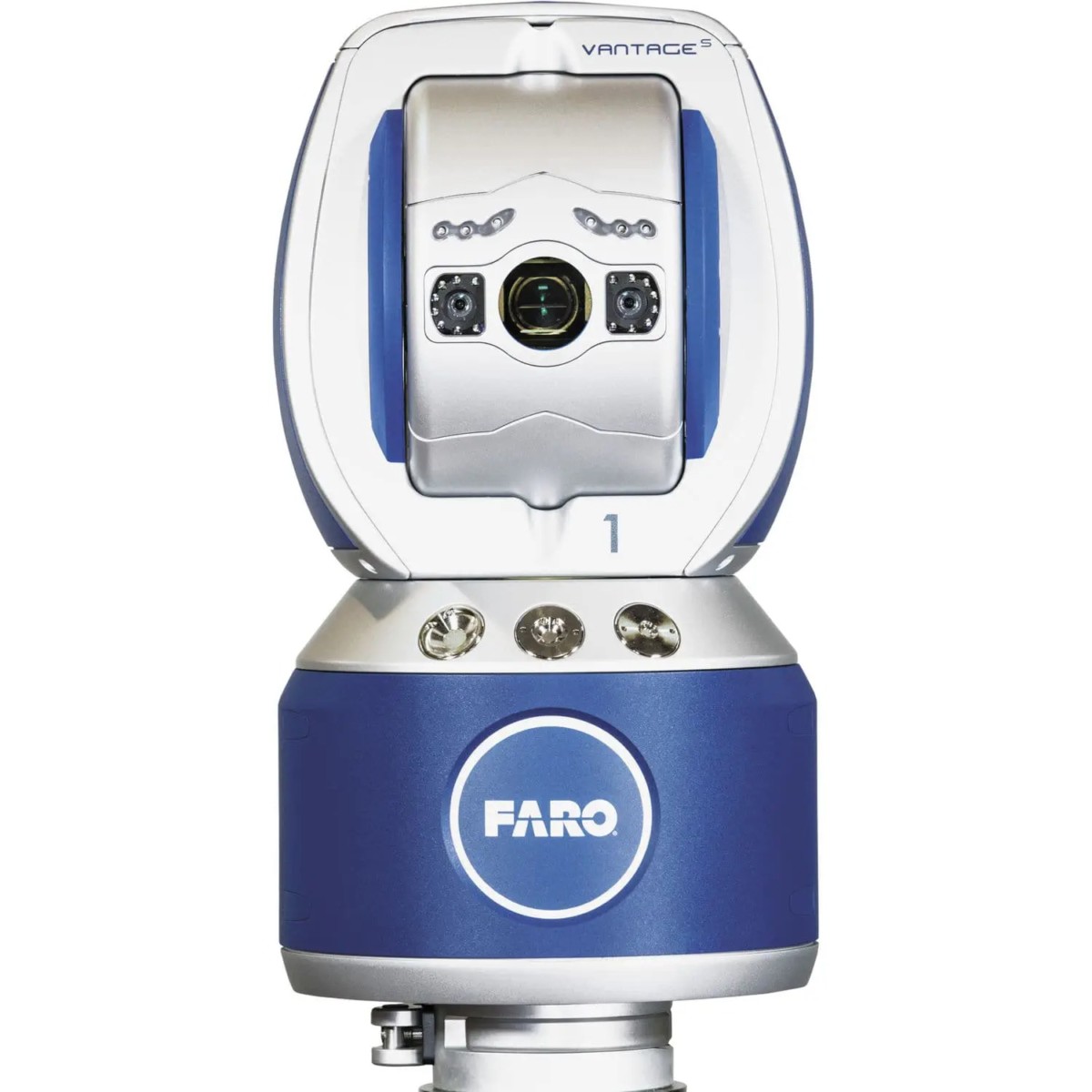

VANTAGES LASER TRACKER / Highest Level of 3DoF Performance
The VantageS offers a measurement range of up to 80m with an SMR for the largest volume applications.
VANTAGEE LASER TRACKER /Standard Level of 3DoF Performance
The VantageE offers a measurement range of up to 35m with an SMR.

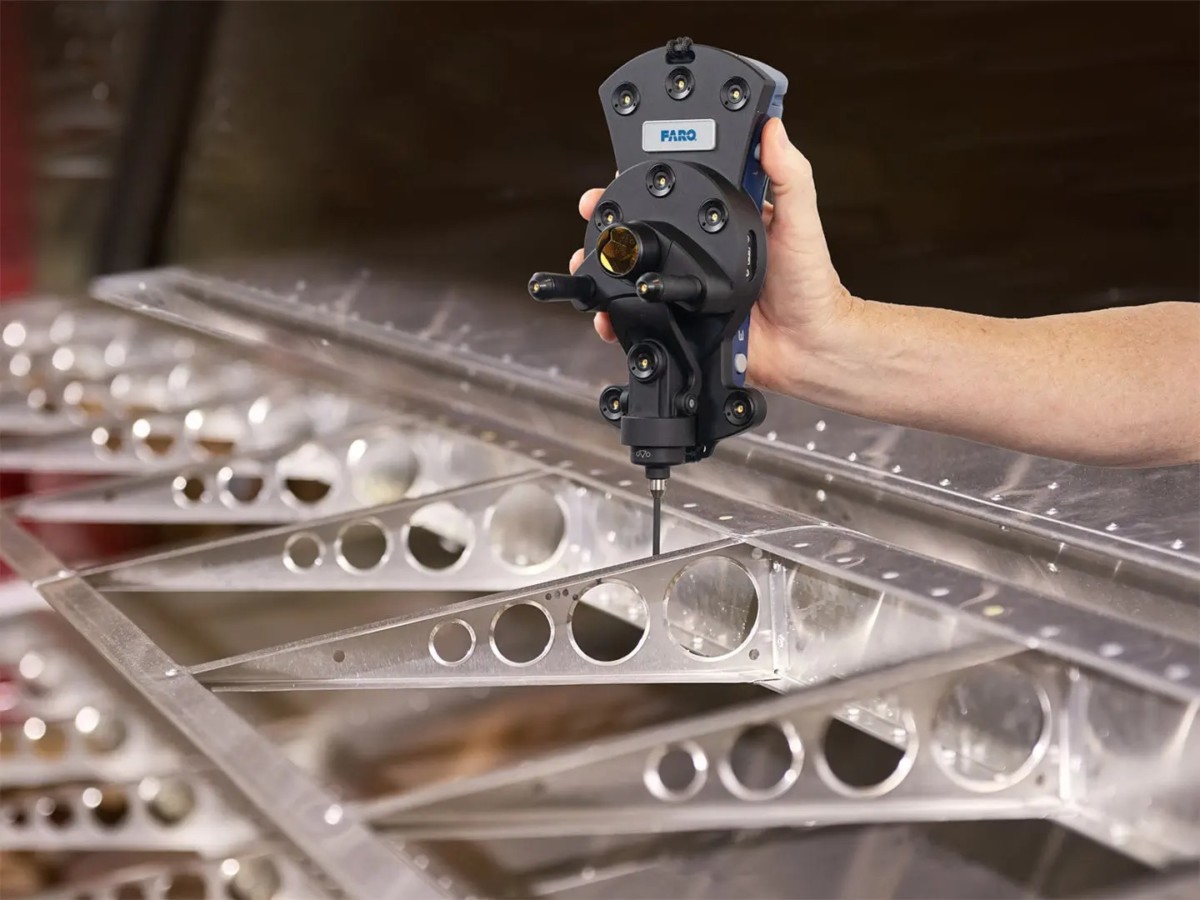

6DoF Probe
Speed up inspection and tool building
• Change tooling without compensation
• Measure more locations without device moves
Easy to use
• Less PC interactions
• Reduce errors
• Seamless use with multiple trackers
Ergonomic
• Rubber coated handle for better grip
• Adjustable strap for secure one-handed use
3D Metrology Target Markets
FARO products focus primarily, but not exclusively, on segments of the 3D Manufacturing industry which produce for, or supply to these sectors: Automotive, Aerospace/Defense, Metal Working.
3D Metrology Applications
Large-scale Production with Precision

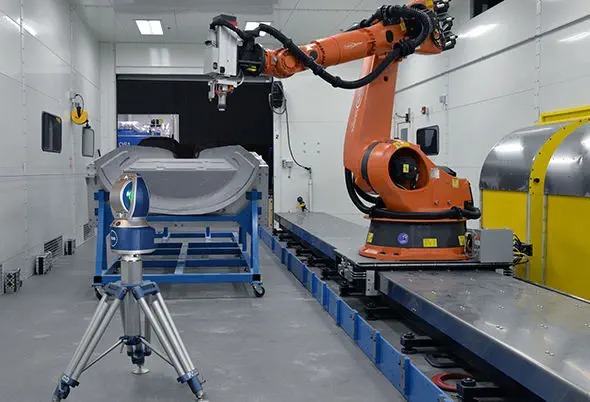

Ensure equipment alignment and adherence to the tightest tolerances when producing large parts, guiding assemblies, calibrating robots and manufacturing tooling, From aerospace to shipbuilding, leaders in the most innovative industries rely on Vantage Laser Trackers from FARO to produce the most advanced parts, assemblies and composites with speed and accuracy.
Enhanced Quality Control for Large Parts
Inspect large parts and assemblies and composites up to 75% faster than with traditional measurement methods. Vantage Laser Trackers produce a digital record of actual versus nominal data to validate conformance to specification for complete quality assurance.
Faster Engineering of Large-scale Parts and Assemblies
Accelerate the design process and your product improvement initiatives with Vantage Laser Trackers. Whether your work involves replacement parts or documenting as-built products and tooling, the Vantage trackers ensure accuracy during rapid prototyping and integrate well with reverse engineering software.
Business Value of Vantage Laser Trackers
Improve Quality : Complex 3D inspections and automatic reports help users pinpoint defects, while high-accuracy alignment of machinery and robotic systems improves manufacturing quality.
Enhance Yield : Faster troubleshooting and root-cause analysis help increase overall yield.
Increase Throughput : Higher production rates and reduced downtime for verification mean greater throughput.
Accelerate Revenue Generation : Installs with production equipment and brings products to market faster.
Keep Customers and End Users Happy : Delivering higher-quality products that can be used with confidence makes everyone happy and keeps customers loyal.
Make Informed Decisions : With the information at your team’s fingertips, they’ll be equipped to make smarter decisions faster and stay ahead of any problems.
