PATLITE

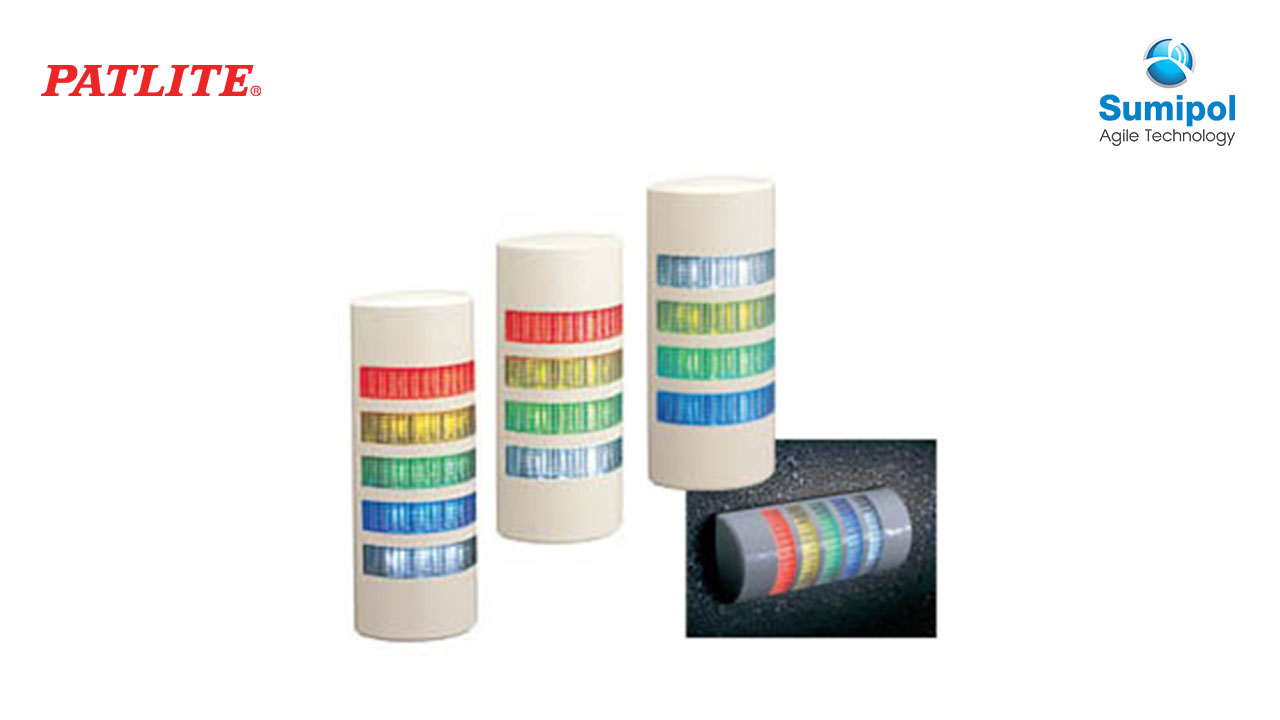

WEP 37.5mm Profile

The WEP Series is an ivory colored, slim-styled body “half-moon” signal tower to integrate seamlessly with equipment.

  • Clear Vertical Cut Lens: For enhanced illumination over a wide perspective.
  • FB type: Built-in audible alarm with 90dB at 1m.
  • Installation: Vertical and horizontal.
  • Body Color: Light gray.
  • Lens: Superior impact and heat resistant polycarbonate resin for superior durability and light transmission.
  • NPN/PNP Compatible: Direct connection to PLC (24V DC ONLY)
  • Lighting Pattern: Flashing and Continuous.
  • Dust-proof and waterproof IP65 (except for FB type: IP54).
  • Available Colors: Red, Amber, Green, Blue, Clear/White.
DIMENSIONS– 37.5mm profile
RATED VOLTAGE– 24V AC/DC
FUNCTIONS– Continuous Only
– Continuous, Alarms
MOUNTING– Wall Mount
BODY STYLE– Pre-assembled, pre-wired
BODY COLOR– Body: Light gray
STACKABLE TIERS– Available from 3 to 5 tier versions
MODULE COLORS– Red
– Amber
– Green
– Blue
– Clear
AUDIBLE STYLE– Alarm 1: selectable, single-tone, intermittent (fast beep) alarm, 90dB (at 1m)
– Alarm 2: selectable, single-tone, intermittent (slow beep) alarm, 90dB (at 1m)
CONFORMITY STANDARDS– UL Listed (E215660)
PROTECTION RATINGIP65 (except for FB type: IP54)
