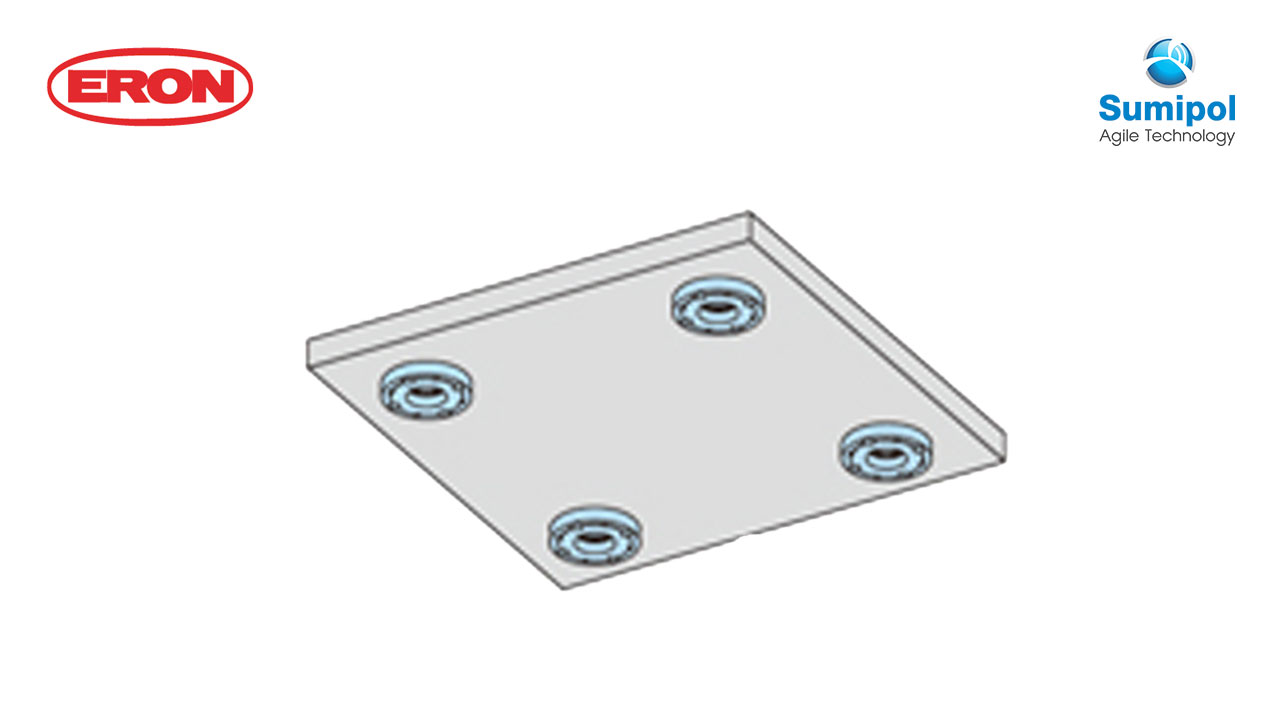

ATTACHMENT PLATE FOR 2-FACE ANGLE PLATES (FLAT)

Material

Plate：S5C
Q-Lock Elements：SCM44

Heat treatment

Plate：Annealing
Q-Lock Elements：Heat treatment (HRC55)

Surface treatment

Q-Lock Elements：Non-electrolytic plating

Feature

• Attachment plates for 2 Faces/MC Tooling Blocks with Q-Lock Elements.
• Locating holes are fitted with hardened bushes, and finished with a high pitch accuracy of ± .15.
• Should be used with holes and grooves machined by the user to match the workpiece as an attachment plate for the angle plates.
