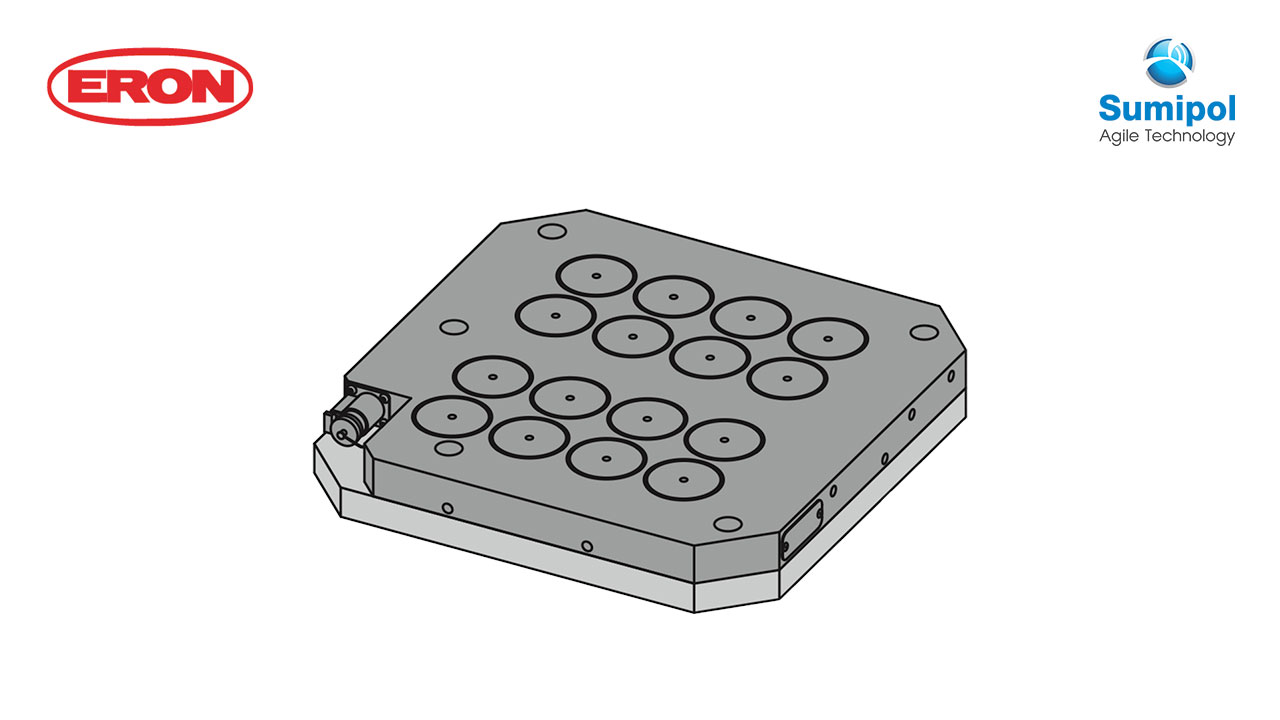

ATTACHMENT PLATE FOR 2-FACE ANGLE PLATES (WITH MAGNETIC CHUCKS)

Material

Plate：S5C
Magnetic Chuck：Structural steel
Q-Lock Elements：SCM44

Heat treatment

Plate：Annealing
Q-Lock Elements：Heat treatment (HRC55)

Surface treatment

Q-Lock Elements：Non-electrolytic plating

Feature

• This is an attachment plate with magnetic chuck for 2 Faces/MC Tooling Blocks with Q-Lock Elements.
• Locating holes are fitted with hardened bushes, and finished with a high pitch accuracy of ± .15.

【Accessories】Controller 1 unit
