| NO. | Width | Length | ThickNess | Locating bush | Clamp bush | Weight (kg) |
| TBQ400TS-PL | 400 | 485 | 30 | QLT26RB | QLT26CB | 46 |
| TBQ500TS-PL | 500 | 580 | 30 | QLT26RB | QLT26CB | 67 |
| TBQ630TS-PL | 630 | 680 | 35 | QLT32RB | QLT32CB | 100 |
ERON

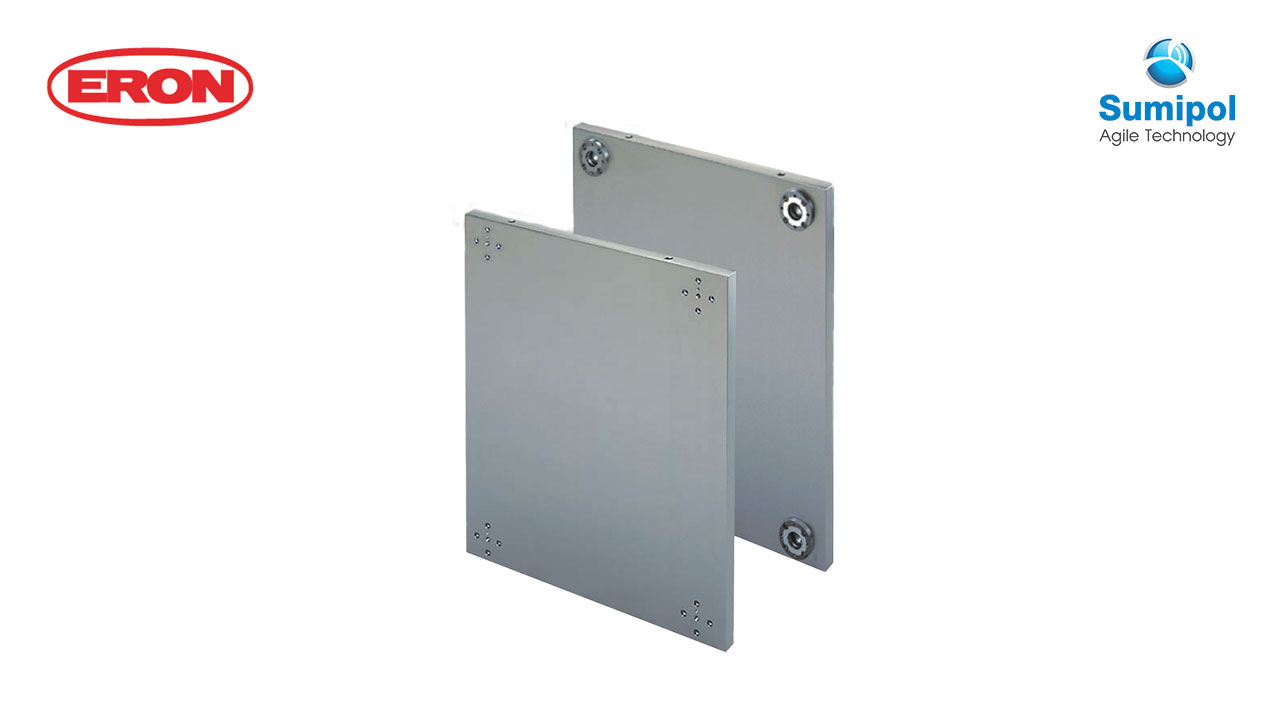

ATTACHMENT PLATES WITH Q-LOCK ELEMENTS
Material
Plate：S5C
Q-Lock Elements：SCM44
Heat treatment
Q-Lock Elements：Heat treatment (HRC55)
Surface treatment
Q-Lock Elements：Non-electrolytic plating
Feature
- Attachment plates for 2 Faces/MC Tooling Blocks with Q-Lock Elements.
- Locating holes are fitted with hardened bushes, and finished with a high pitch accuracy of ± .15.
- Should be used with holes and grooves machined by the user to match the workpiece as an attachment plate for the tooling blocks.【Accessories】Eye bolt
