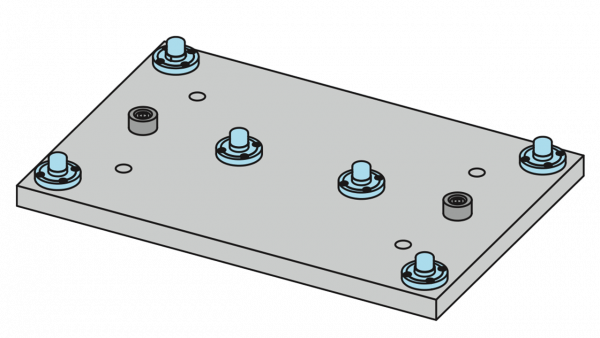

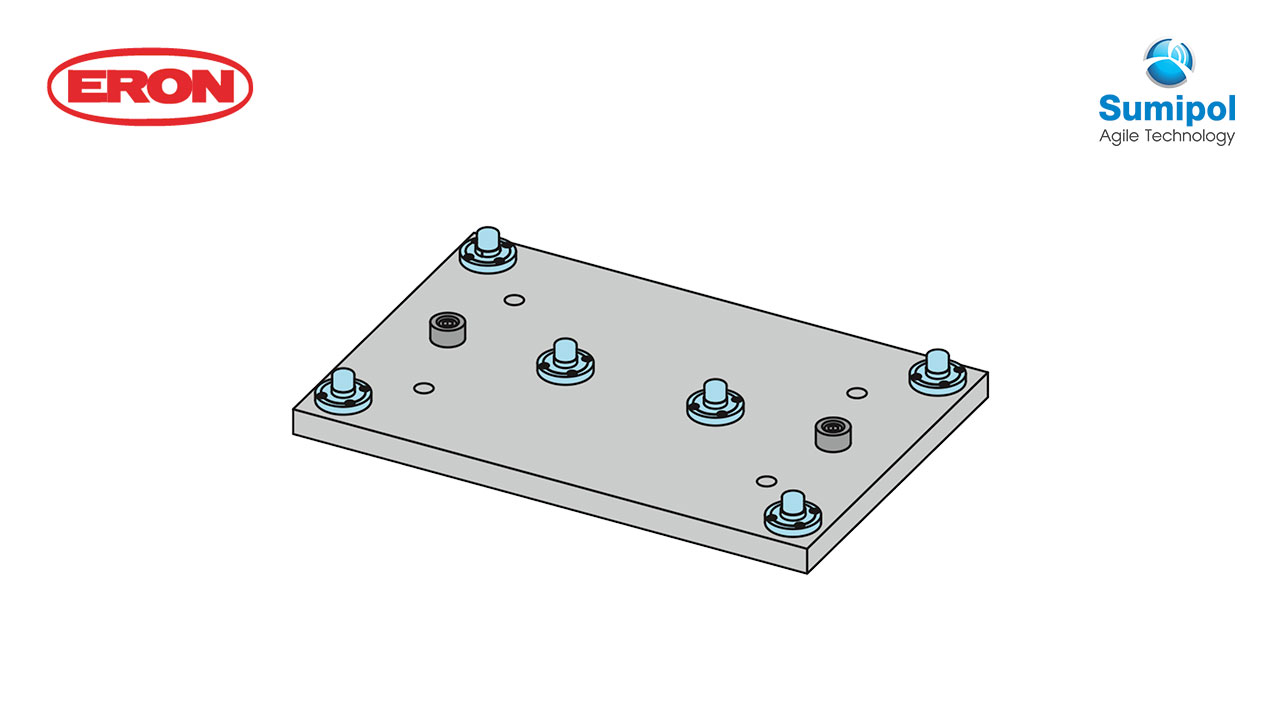

BASE PLATE WITH Q-LOCK ELEMENTS

Material

Plate:S5C
Q-Lock element:SCM44
Height cylinder:SCM42

Heat treatment

Plate:Annealing
Q-Lock element・Height cylinder:Heat treatment (HRC55)

Surface treatment

Q-Lock Element:Non-electrolytic plating
Height cylinder:Blackened

Feature

  • This is a base plate with screw-type Q-Lock Elements.
  • Plates can be located and clamped with one-touch operation by combining with compatible bushes.
  • The position repeatability accuracy is within 3μm.
No.Locating pinDia. PinClamp pinWEIGHT kg
MCQ0540QLT26RPQLT26DPQLT26CP49
MCQ0640QLT26RPQLT26DPQLT26CP58
MCQ1060QLT540RPQLT540DPQLT540CP252

แบบสอบถาม

Product Name : BASE PLATE WITH Q-LOCK ELEMENTS
