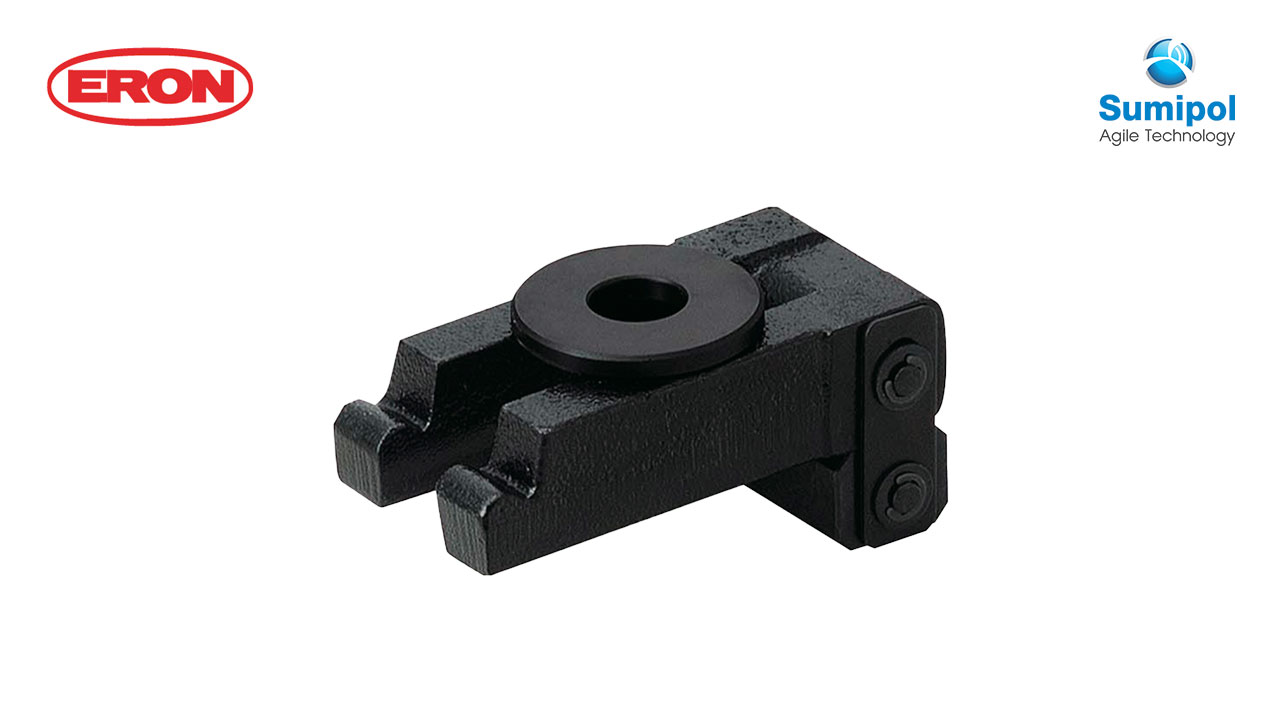

INJECTION CLAMPS TYPE Q

Material

CLAMP BAR : FCAD9
STEP BLOCKS : S45C
WASHER : S45C

Heat treatment WASHER : HRC3±5 HEAT TREATMENT

Surface treatment

CLAMP BAR : CATIONIC COATING
STEP BLOCKS :BLACKENED
WASHER :BLACKENED

Feature

  • Mold base can be clamped quickly.
  • The clamps and step blocks are connected, and cannot be lost.
  • The slotted hole of the clamp is open, making it easy to insert and remove from the side.
No.Compatible BoltOverall widthWeight(kg)
ICQ12M12370.78
ICQ16M16471.2
ICQ20M20602.5
ICQ24M24754
