ERON

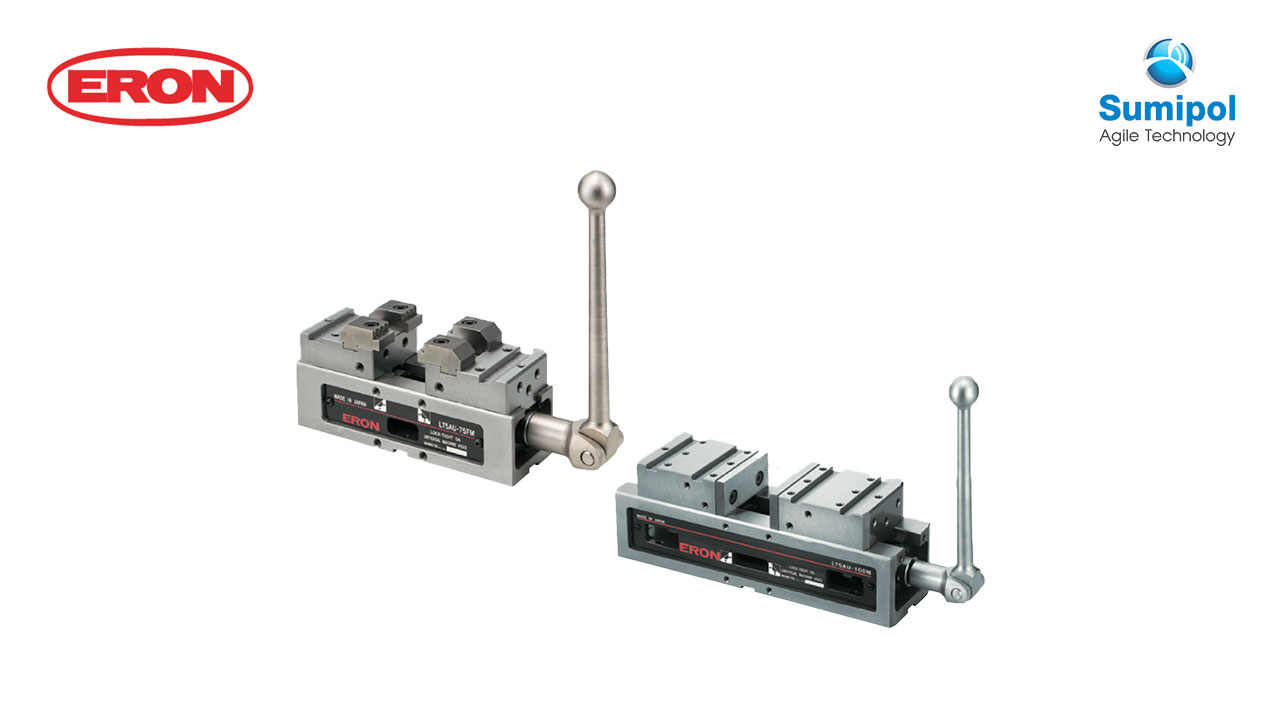

LOCK-TIGHT 5 AXIS MACHINE VISES

Feature

  • Supports a wide variety of workpieces
    Attachment of the jaw plates can be selected from four different positions, making it possible to support a wide variety of different workpieces.
  • Lock-tight anti-floating mechanism
    Workpieces can be prevented from lifting up by applying force onto the sliding jaw at an angle of 45 degrees downwards using a semi-spherical segment.
  • Replaceable jaw plates
    Includes 2 different jaw plates as standard, allowing you to use the best jaw plates for the machining conditions.
  • Workpieces can always be clamped in the center position of the vise, removing the work of programming.

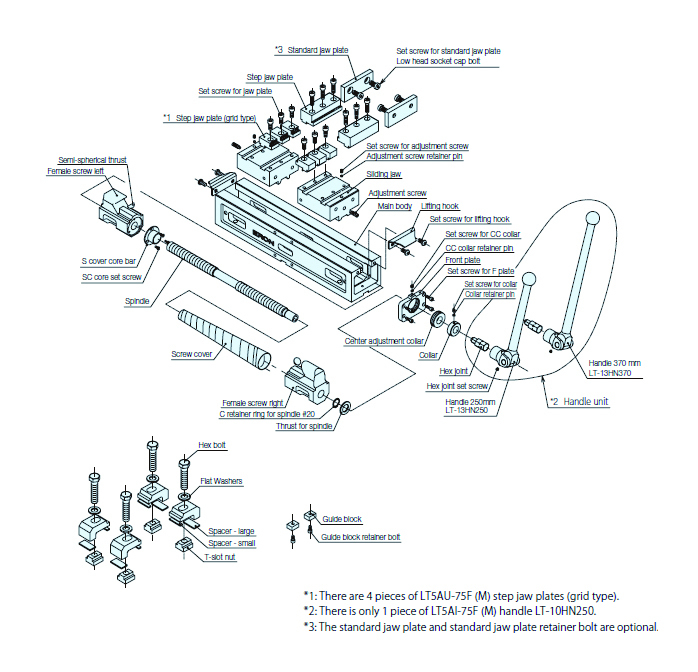

【Accessories】
LT5AU-75F(M)
Step sliding jaws (grid type) LT5AU-75SJG-8 (2 pieces per set) … 2 sets
Step sliding jaws (depth 2) LT5AU-75SJ-2 (2 pieces per set) … 1 set
Standard clamping set BCS14Q1 (2 pieces per set) … 2 sets
Standard guide block LTGB14-14 (2 pieces per set) … 1 set
Standard handle LT-1HN25 … 1 piece

LT5AU-1F (M)
Step sliding jaws (grid type) LT5AU-1SJG-8 (6 pieces per set) … 1 set
Step sliding jaws (depth 2) LT5AU-1SJ-2 (2 pieces per set) … 1 set
Standard clamping set BCS18Q1 (2 pieces per set) … 2 sets
Standard guide block LTGB18-18 (2 pieces per set) … 1 set
Standard handle LT-13HN25, LT-13HN37 … 1 piece of each

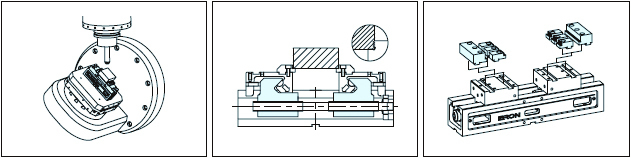

Level raising structure that          Lock-tight anti-floating               2 types of jaw plates included as
avoids interference with the         mechanism                               standard
main axis



Total LengthJaw WidthStandard Guide Block WidthStandard Clamp Compatible T-Slot WidthClamping Force (kN)Weight (kg)
LT5AU75FM2367514141610
LT5AU75F2867514141612
LT5AU100FM38610218182024
LT5AU100F48410218182026
LT5AU125F59612718182543
