Component Parts
Component Parts | Quantity | |
1 | Clamp Block | 1 |
2 | Clamp pin (input) | 1 |
3 | Clamp pin (output) | 1 |
Optional
Extension Bar MT12-S
* For guide bars and extension bars, provide us with the A dimension and we will give you a separate quote.
Material
Heat treatment
Component Parts | Quantity | |
1 | Clamp Block | 1 |
2 | Clamp pin (input) | 1 |
3 | Clamp pin (output) | 1 |
Extension Bar MT12-S
* For guide bars and extension bars, provide us with the A dimension and we will give you a separate quote.
Type | Name | № | Tapped Hole | Weight (kg) | |
Input Side | Output Side | ||||

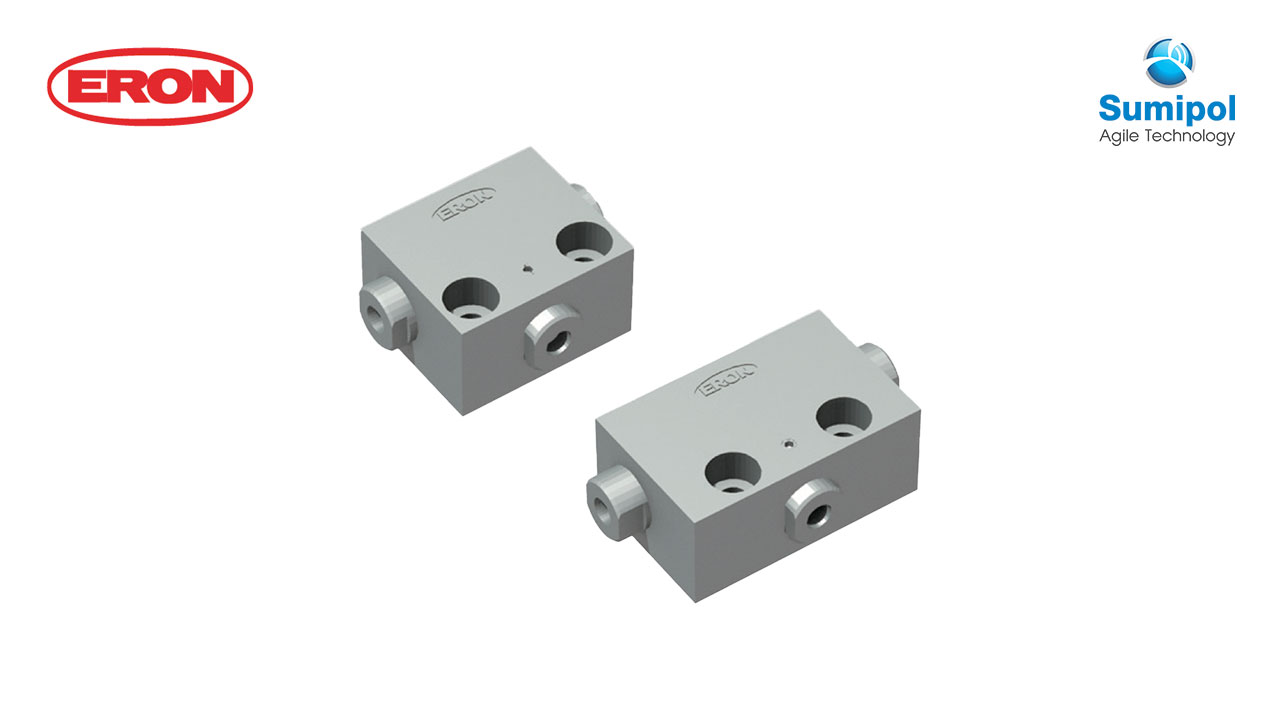

Standard | Branch 2-side push | MT122 | Yes | Yes | 0.16 |
Standard | Branch 2-side push | MT123 | Yes | No | 0.17 |
Type with Return Mechanism | Branch 2-side push | MR122 | Yes | Yes | 0.23 |
