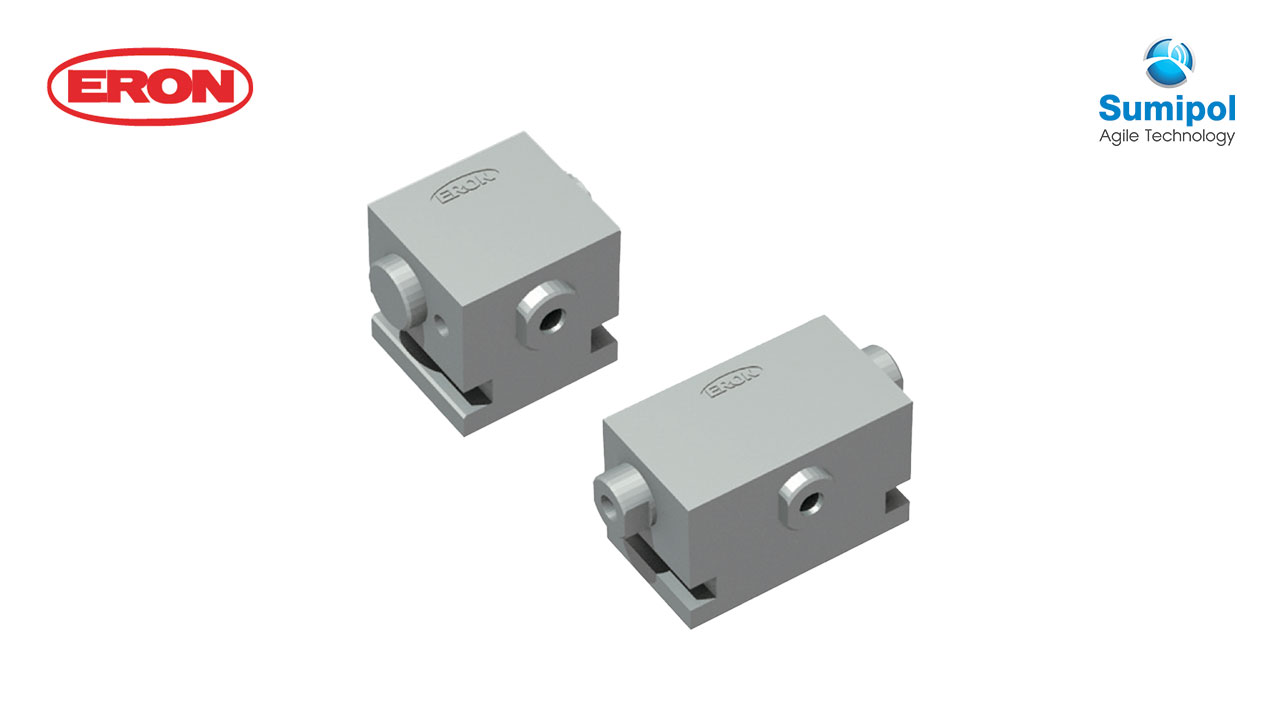

MULTI AUTO CLAMPS – GUIDE PLATE TYPE [SERIES TYPE]

Material

CLAMP BLOCK : S5C
CLAMP PIN : SKD11

Heat treatment

CLAMP BLOCK : HRC5 HEAT TREATMENT
CLAMP PIN : HRC6 HEAT TREATMENT

Component Parts


Component PartsQuantity
1Clamp Block1
2Clamp pin (input)1
3Clamp pin (output)1



Optional

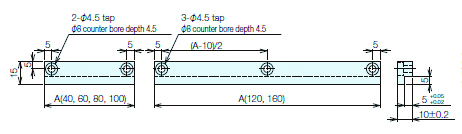

Guide Plate MT12-BG

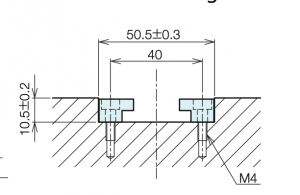

Guide Plate Mounting Dimensions

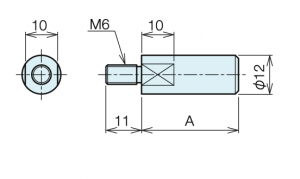

Extension Bar MT12-S

TypeNameTapped HoleWeight (kg)
Input SideOutput Side
StandardGuide Plate TypeMT121BYesYes0.18
StandardGuide Plate TypeMT122BYesNo0.17
Type with Return MechanismMain Body (Groove Type)MR121BYesYes0.3
