Model No. | Full Stroke | Clamping Stroke | Stroke Allowance | Max Torque N/m | Max Clamping Force kN | Weight kg |
NRCL03 | 25 | 23 | 3.6 | 11 | 3 | 0.8 |
NRCL06 | 31 | 25 | 4.7 | 38 | 6 | 1.1 |
NRCL10 | 40 | 30.5 | 4.4 | 48 | 10 | 1.9 |
ERON

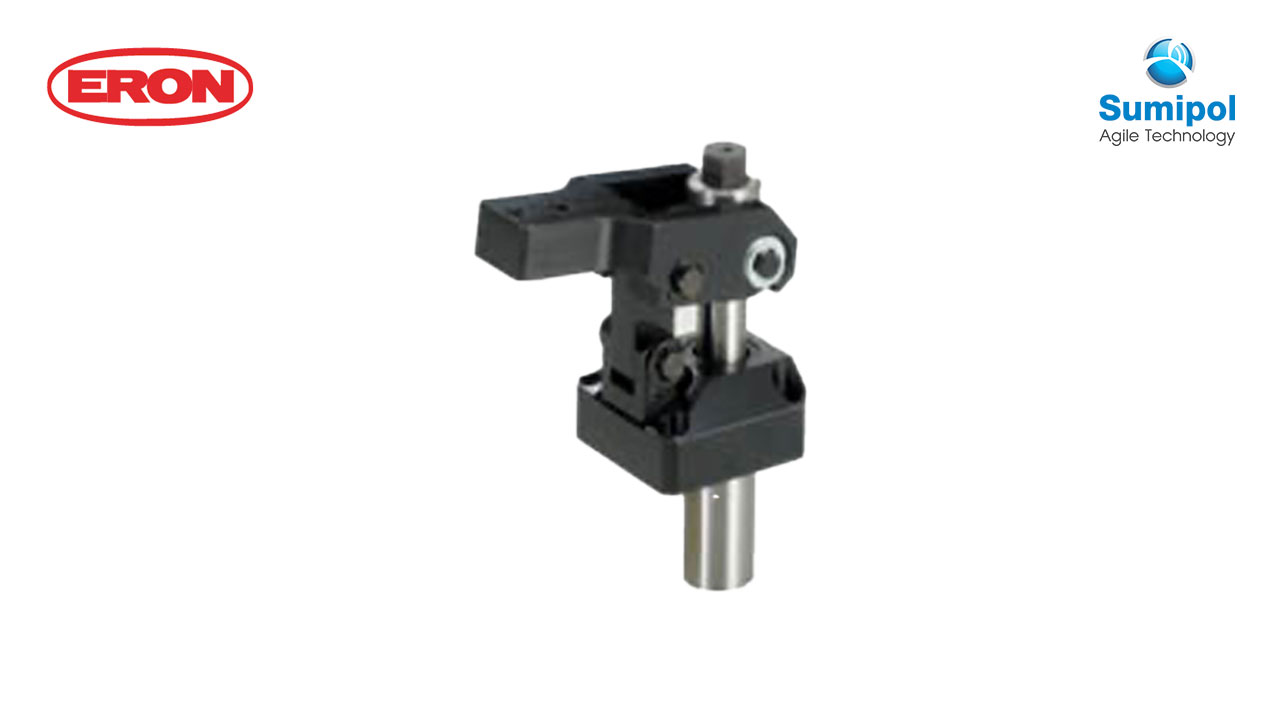

Nut Ranner Type L
Material
Flanged Base :SCM435
Female Screw : SCM420
Ring Plate : S45C
Joint Block: S45C
Heat treatment
Flanged Base :Hardening HRC23
Female Screw : Hardening HRC50
Ring Plate : Hardening HRC23
Joint Block: Hardening HRC42
Clamping Lever : Hardening HRC23
Surface treatment
Flanged Base, Ring Plate, Clamping Lever : Blackening
Feature
- Torque controlling, quick clamping is possible with a nutrunner.
- Automated system without hydraulic piping can be established easily.
- High speed clamping by using Nut runner
- Clamp bar moves to unclamping position quickly. Easy to remove workpiece.
- Oil less application. No Oil leakage problem.
