ERON

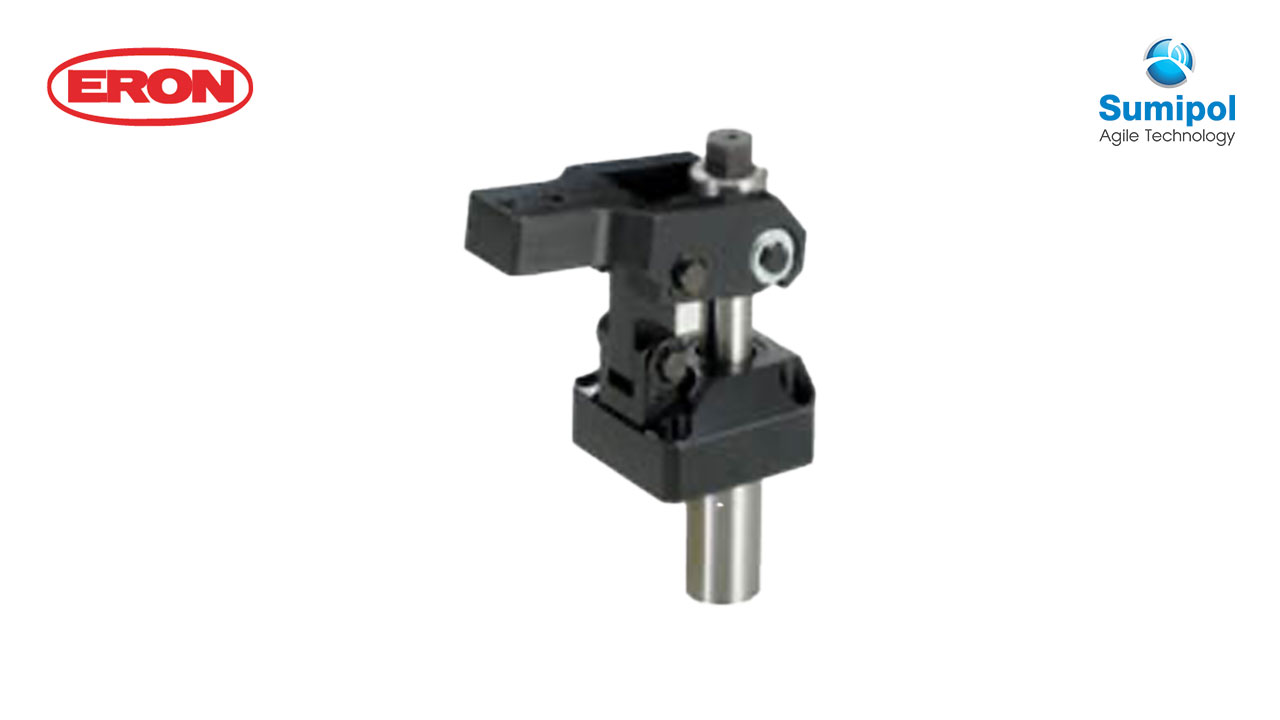

Nut Ranner Type S

Material

Cylinder：A7075
Piston：SCM440
Clamping Bolt：SCM435

Heat treatment

Piston, Clamping Bolt ： Hardened HRC45

Feature

  • Torque management, fast clamping are possible with a nutrunners.
  • Higher operability such as hydraulic one without piping arrangement.
  • High speed clamping by using Nut runner
  • Clamp bar can be turned by 90°. Flexible turning directions.
  • Non oil applications mean no trouble such as oil-leakages.
    ※Clamping bar is option
หมวดหมู่: ,
Model No. Recommended Clamp Bar Length Clamping Stroke Swing Stroke Lock Stroke Max Torque N/m Max Clamping Force kN Weight kg
NRCS03R 30-60 18 10 8 12 3 0.7
NRCS03L 30-60 18 10 8 12 3 0.7
NRCS06R 30-60 20 12 8 20 6 1.1
NRCS06L 30-60 20 12 8 20 6 1.1
NRCS10R 30-70 23.5 13.5 10 33 10 1.6
NRCS10L 30-70 23.5 13.5 10 33 10 1.6
