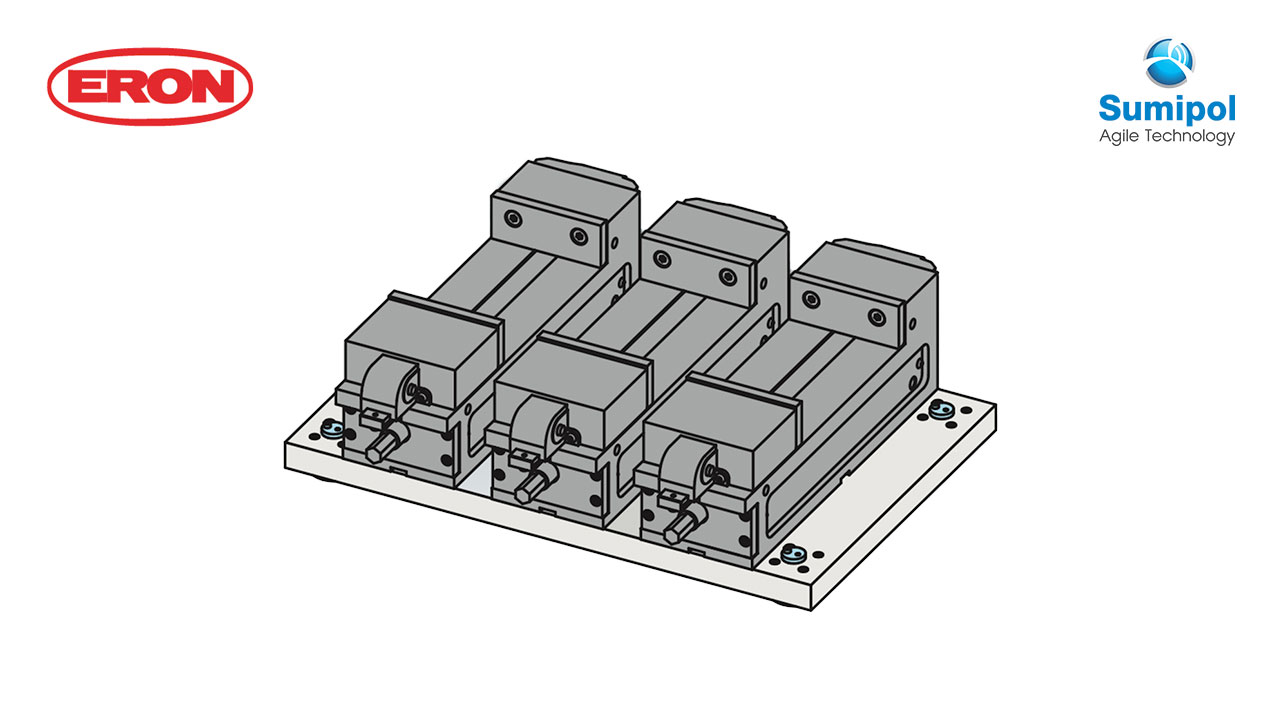

PLATE WITH Q-LOCK ELEMENTS (WITH MACHINE VISES)

Material

Plate:S5C
Q-Lock Elements:SCM44

Heat treatment

Plate:Annealing
Q-Lock Elements:Heat treatment (HRC55)

Surface treatment

Q-Lock Elements:Non-electrolytic plating

Feature

  • This is an attachment plate with CV vises for the table with screw-type Q-Lock Elements.
  • Locating holes are fitted with hardened bushes, and finished with a high pitch accuracy of ± .15.
No.Built-in ViseVise (pcs)Locating BushClamp BushWeight kg
MCQ0540-CV100LTCV1002QLT26RBQLT26CB93
MCQ0640-CV125LTCV1253QLT26RBQLT26CB158
MCQ1060-CV160LTCV1604QLT40RBQLT40CB426
