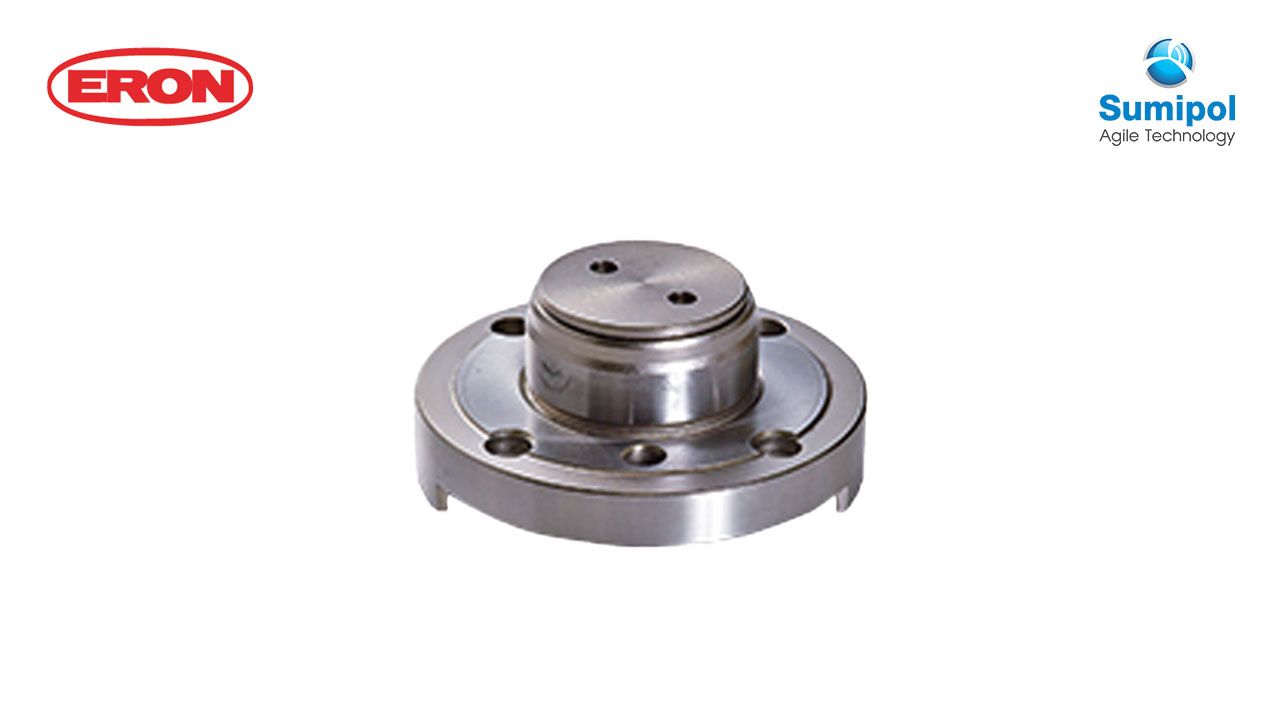

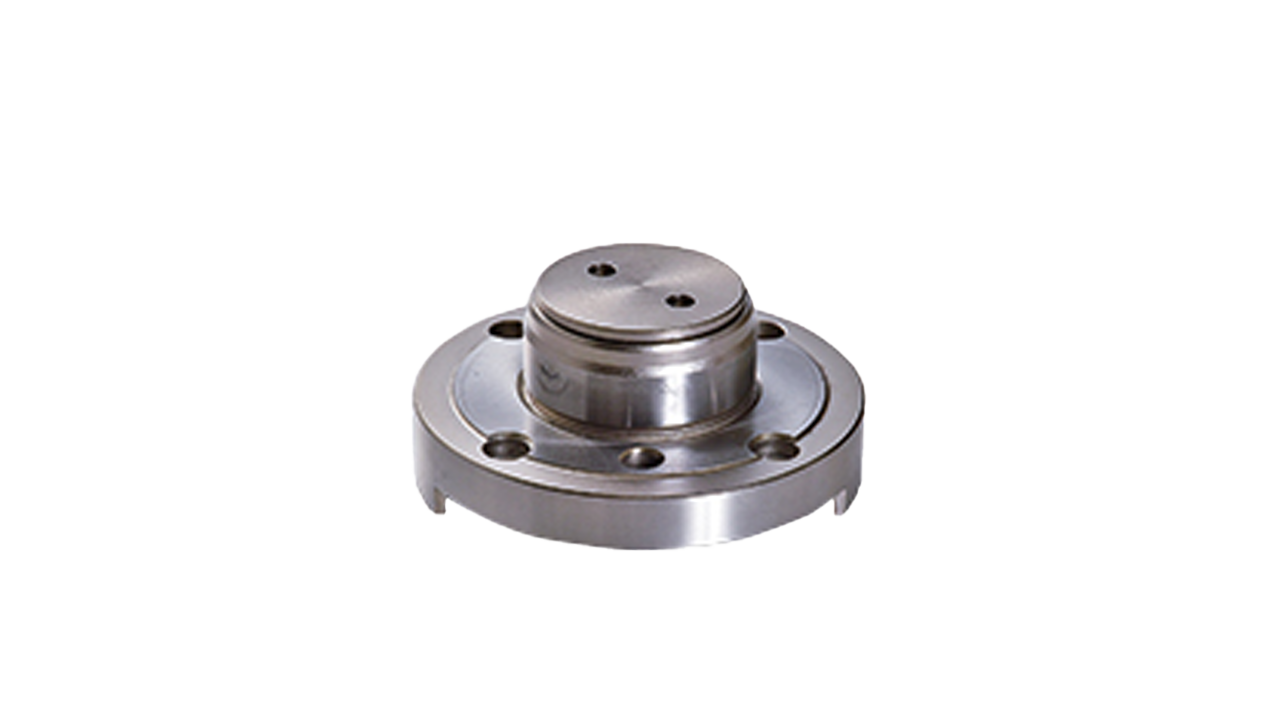

Q-LOCK ELEMENTS/BUSH(Side Screw, Single Type)

Material CRMO(SCM440)
Heat treatment Main body : Hardened HRC55
Feature
■Side operation single type bushes.

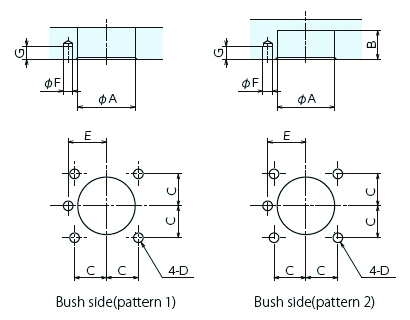

Dimensions of mounting process


ABCDEFG
QLTSS26B36 +0.025/+0.0091820M 6 depth 1224 ±0.0156 +0.018/08
QLTSS40B58 +0.029/+0.0102430M10 depth 2035 ±0.01510 +0.022/010
No.Outer DiameterOverall DiameterInner DiameterWeight (g)
QLTSS26B7014.558300
QLTSS40B10821861100

แบบสอบถาม

Product Name : Q-LOCK ELEMENTS/BUSH(Side Screw, Single Type)
