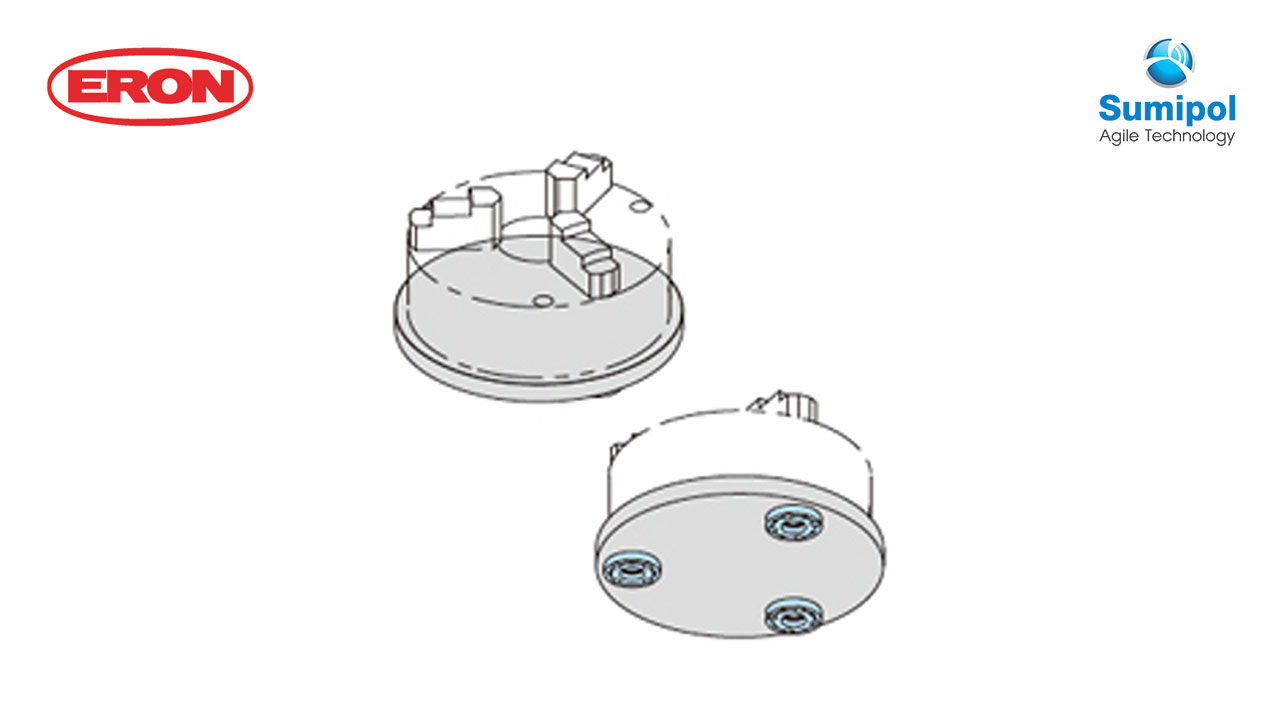

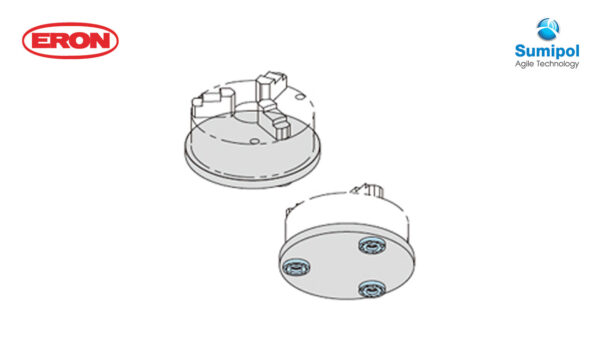

Q-LOCK ELEMENTS EMBEDDED EXCHANGE ROUND PLATES (With Chuck)

Material

Plate : Medium carbon steel(S50C)
Q-lock element : CRMO(SCM440)

Heat treatment

Q-lock element : Hardened (HRC55)

Surface treatment

Q-lock element : Electroless plating

Feature

  • Plate with chuck being used for Q-lock elements embedded round plates
  • Reference bushed holes, keeping its pitch within +-0.015
  • Chuck is not inclusive for this item. We need your specifi cation or supply.
No.Locating bushClamping bushWeight (㎏)
RMCQ300-10INQLT26RBQLT26CB12
RMCQ400-16INQLT26RBQLT26CB21
RMCQ500-20INQLT40RBQLT40CB50
