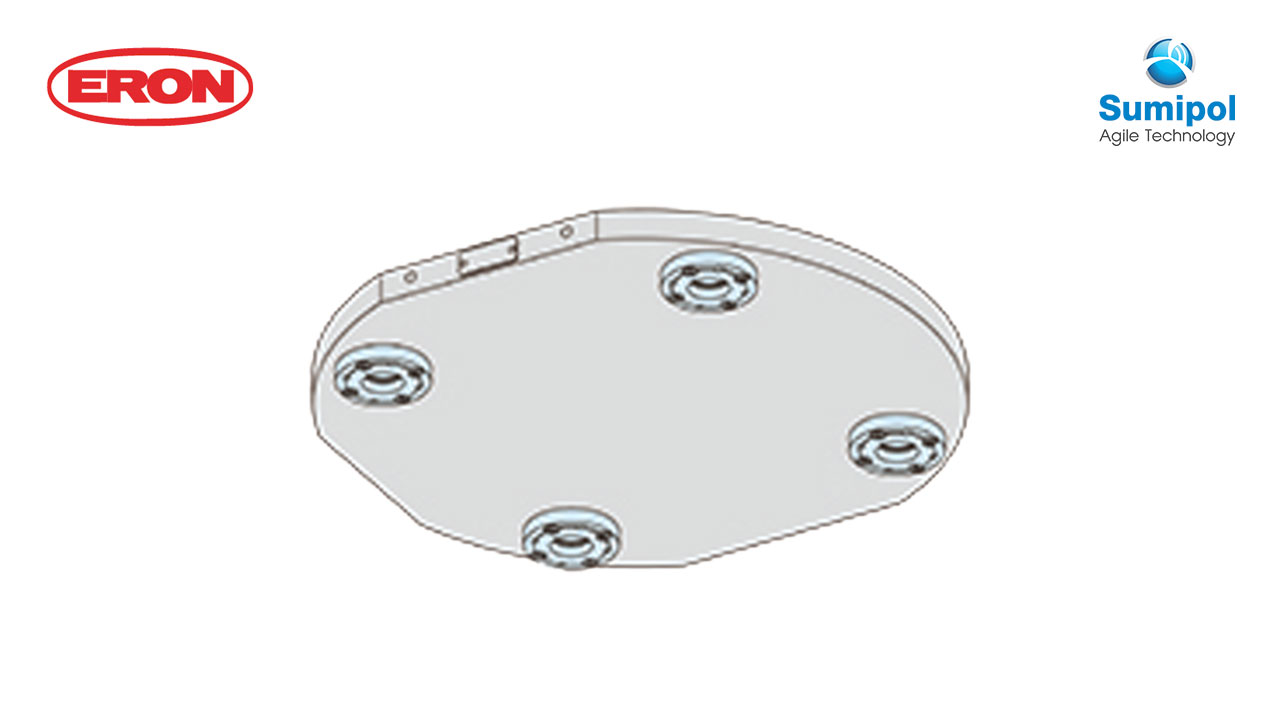

Q-LOCK ELEMENTS EMBEDDED ROUND PLATES (Flat)

Material

Plate : Medium carbon steel(S50C)
Q-lock element : CRMO(SCM420)

Heat treatment

Q-lock element : Hardened (HRC55)

Surface treatment

Q-lock element : Electroless plating

Feature

  • Mounting one to Q-lock elements embedded round plates.
  • Reference bushed holes keeping its pitch within +-0.015
  • Possible to machine suitable holes,slots additionally.
No.Locating bushClamping bushWeight (㎏)
RMCQ300-FQLT26RBQLT26CB12
RMCQ400-FQLT26RBQLT26CB21
RMCQ500-FQLT40RBQLT40CB50
