ERON

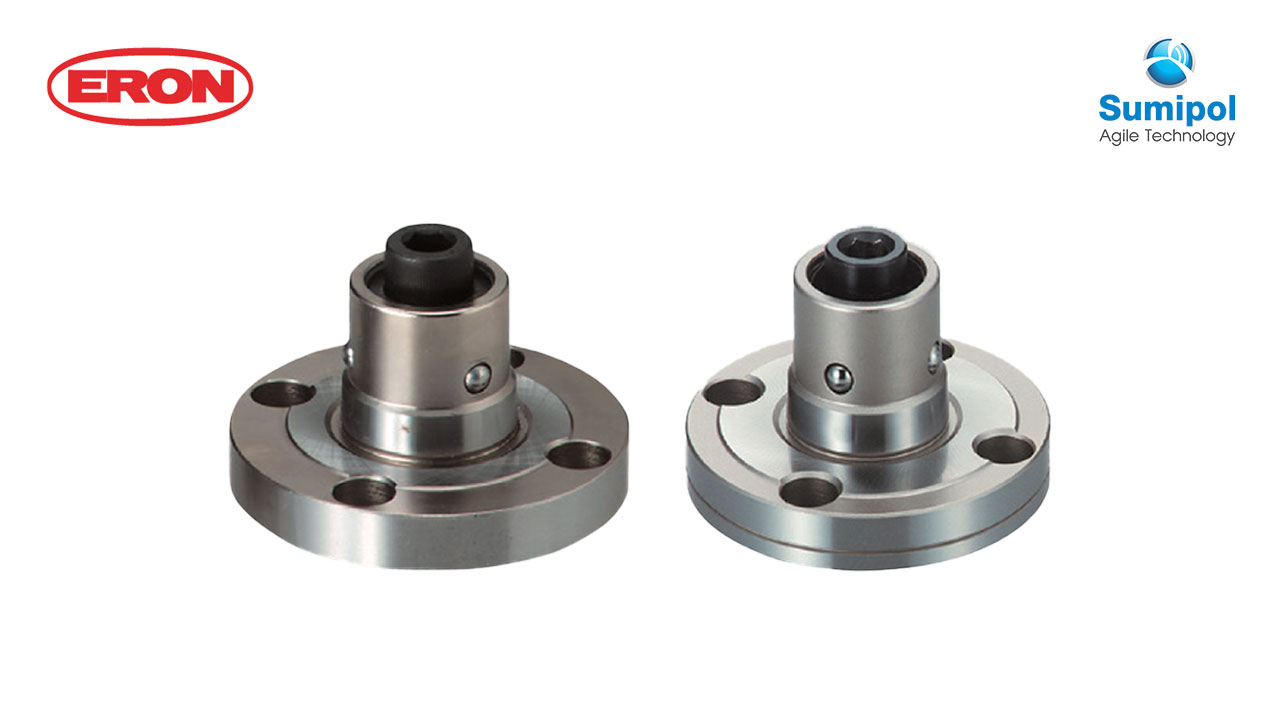

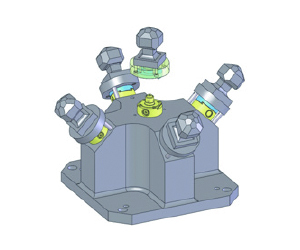

Q-LOCK ELEMENTS/PIN (Screw Type)

Material

Main body : CRMO(SCM440)
Steel balls : Bearing steel (SUJ2)

Heat treatment
Main body : Hardened HRC55
Steel balls : Hardened HRC62

Feature

[Screw Type]
■Fastening , releasing by wrench from the top of main body.

[Side screw type]
■Possible to handle from one direction by using extension tool.
■Can be fastened, released by wrench from side.

Download Catalogue
หมวดหมู่: ,

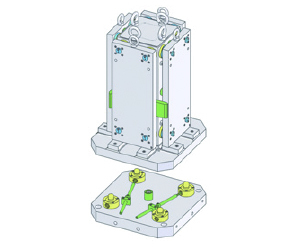

Side screw type

In case that operation is not possible from the top



[Dimensions of mounting process]

№ A B C D
QLTS26*PV 36 +0.016/0 12.5 58 4-M5 depth12
QLTS40*PV 58 +0.019/0 15 86 6-M6 depth12

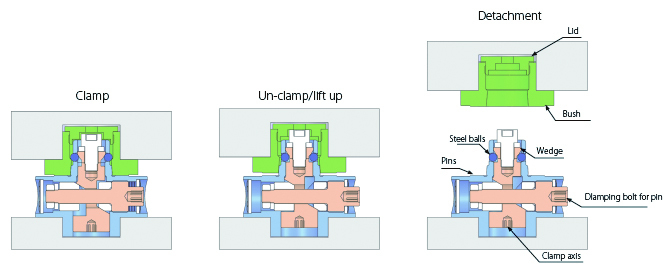

[Structural drawing]



Screw Type・Quick Type

[Dimensions of mounting process]

№ A B C D
QLT(F)19 15 +0.011/0 6.5 36 4-M4 depth 8
QLT(F)26 20 +0.013/0 7.5 46 4-M5 depth10
QLT(F)32 25 +0.013/0 9 58 4-M6 depth12
QLT(F)40 28 +0.013/0 10 72 6-M6 depth12

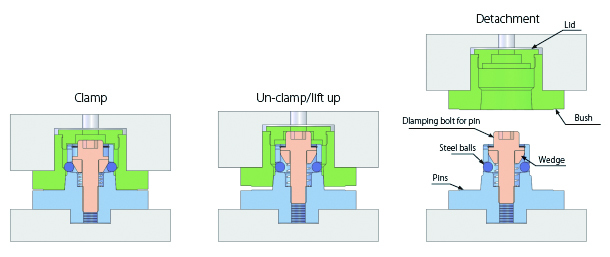

[Structural drawing]



Side Screw, Single Type

Multiple uses of exchanged jigs for small workpieces.

[Dimensions of mounting process]

№ A B C D E Ｆ Ｇ
QLTSS26P 36 +0.016/0 13 20 M6深さ12 24±0.015 6 +0.018/0 8
QLTSS40P 58 +0.019/0 15.5 30 M10深さ20 35±0.015 10 +0.022/0 10

Pin (Side screw type) Specifications
Type No. Outer Diameter Overall Diameter Diameter Of Pin Weight (g)
Locating pin QLTS26RPV 70 60.2 26 770
Locating pin QLTS40RPV 108 83.5 40 2700
Clamping pin QLTS26CPV 70 60.2 25 770
Clamping pin QLTS40CPV 108 83.5 37 2700

Pin (Screw Type) Specifications
Type No. Outer Diameter Overall Diameter Diameter Of Pin Weight (g)
Locating pin QLT19RP 45 31.3 19 110
Locating pin QLT26RP 58 39.2 26 260
Locating pin QLT32RP 72 49 32 500
Locating pin QLT40RP 88 59 40 950
Dia. pin QLT19DP 45 31.3 19 110
Dia. pin QLT26DP 58 39.2 26 260
Dia. pin QLT32DP 72 49 32 500
Dia. pin QLT40DP 88 59 40 950
Clamping pin QLT19CP 45 31.3 17.8 110
Clamping pin QLT26CP 58 39.2 24 260
Clamping pin QLT32CP 72 49 30 500
Clamping pin QLT40CP 88 59 37 950

Side Screw, Single Type Specifications
No. Outer Diameter Overall Diameter Diameter Of Pin Weight (g)
QLTSS26P 70 58 26 720
QLTSS40P 108 83.5 40 2100

Pin (Quick Type) Specifications
Type No. Outer Diameter Overall Diameter Diameter Of Pin Weight (g)
Locating pin QLTF19RP 45 31.3 19 110
Locating pin QLTF26RP 58 39.2 26 260
Locating pin QLTF32RP 72 49 32 500
Locating pin QLTF40RP 88 59 40 950
Dia. pin QLTF19DP 45 31.3 19 110
Dia. pin QLTF26DP 58 39.2 26 260
Dia. pin QLTF32DP 72 49 32 500
Dia. pin QLTF40DP 88 59 40 950
Clamping pin QLTF19CP 45 31.3 17.8 110
Clamping pin QLTF26CP 58 39.2 24 260
Clamping pin QLTF32CP 72 49 30 500
Clamping pin QLTF40CP 88 59 37 950

Pin (Clutch Type) Specifications
Type No. Outer Diameter Overall Diameter Diameter Of Pin Weight (g)
Locating pin QLTC26RP 58 26 56.7 400
Dia. pin QLTC26DP 58 26 56.7 400
Clamping pin QLTC26CP 58 24 56.7 400
