| No. | No. of T shaped groove | Locating bush | clamping bush | Weight (㎏) |
| MCQ0540-T | 4 | QLT26RB | QLT26CB | 67 |
| MCQ0640-T | 4 | QLT26RB | QLT26CB | 83 |
| MCQ1060-T | 4 | QLT40RB | QLT40CB | 261 |
ERON

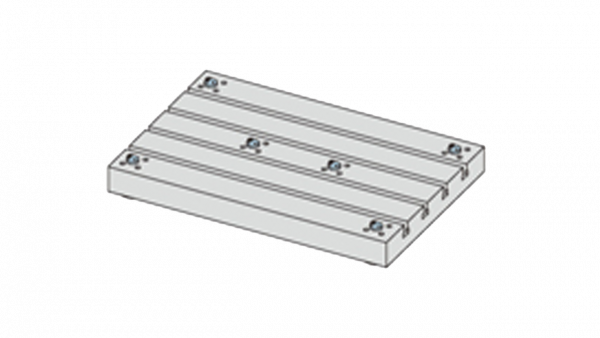

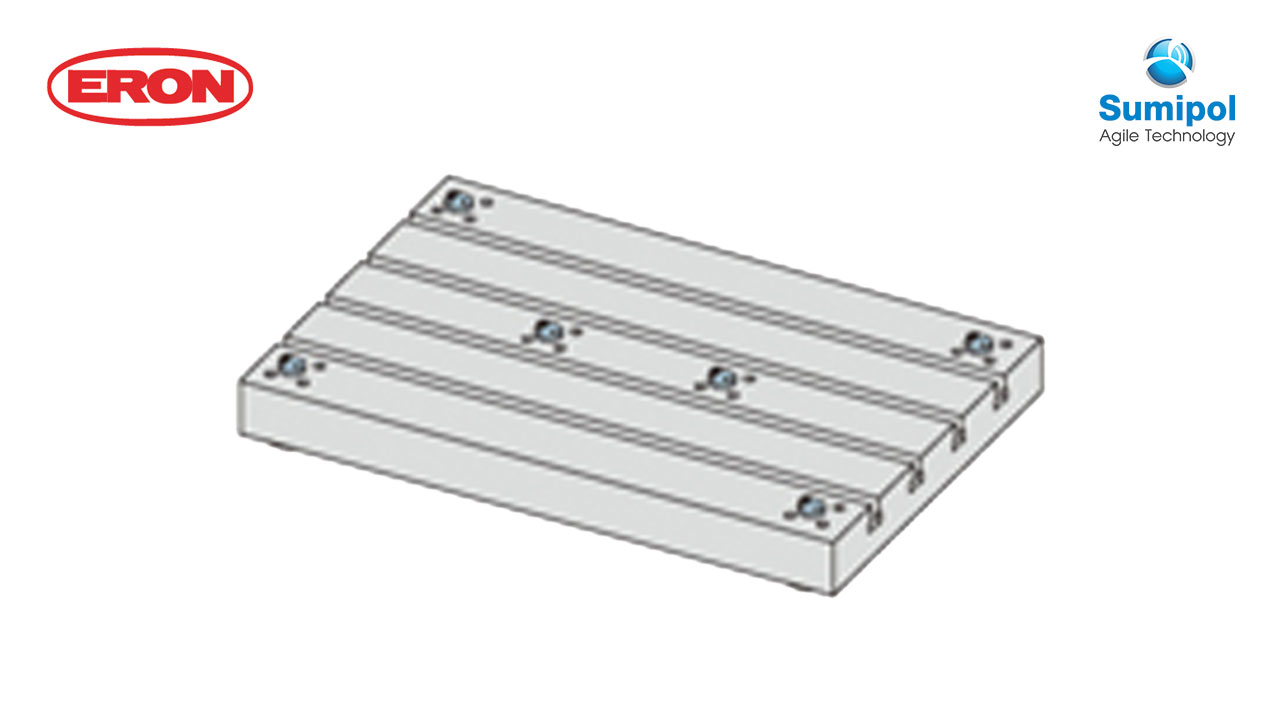

Q-LOCK EMBEDDED PLATES (T-Slot Type)
Material
- Plates : Castings(FC250)
Q-lock element : CRMO(SCM440)
Heat treatment
- Plates : Annealed
Q-lock element : Hardened (HRC55)
Surface treatment
- Q-lock element : Electroless plating
Feature
- Q-lock element embedded mounting plate, screw type.
- Reference bushed holes keeping its pitch within +-0.015.
