ERON

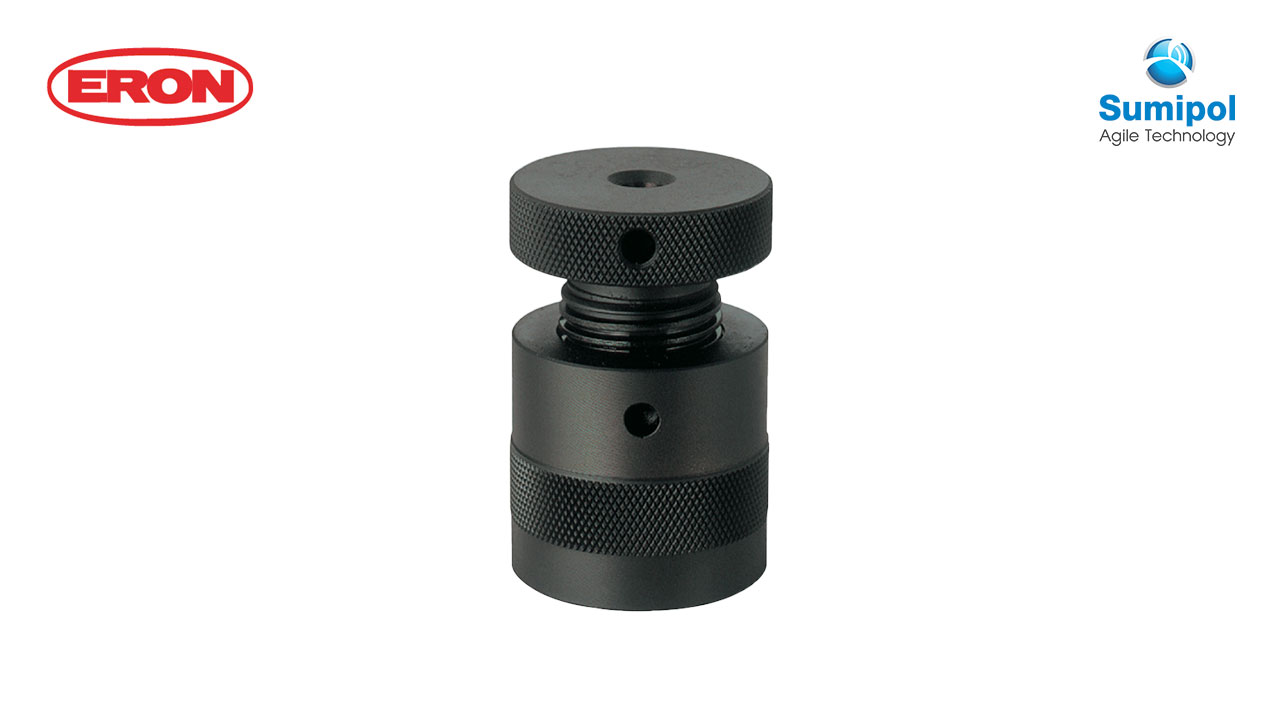

SCREW JACK
Material S45C
Heat treatment
MAIN BODY:HRC3 ± 4 HEAT TREATMENT
SCREW:HRC35 ± 4 HEAT TREATMENT
Surface treatment BLACKENED
Feature

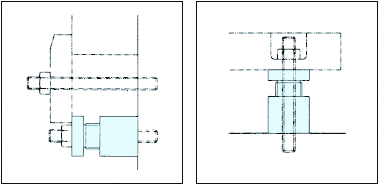

- For the SJK type, the attachment No.E-9175A can be used.
- For the SJK-K type, there is a through hole at the center of the jack so that the jack can be fixed using a bolt or the like.
| No. | Overall height | Diameter of Body | Allowable Load (kN) | Weight(kg) |
| SJK40 | 30-40 | 40 | 20 | 0.28 |
| SJK50 | 40-50 | 50 | 35 | 0.58 |
| SJK80 | 60-80 | 50 | 35 | 0.88 |
| SJK105 | 80-105 | 65 | 58 | 2 |
| SJK150 | 100-150 | 65 | 58 | 2.54 |
| SJK250 | 150-250 | 65 | 58 | 3.82 |
| SJK105K | 80-105 | 65 | 58 | 1.88 |
| SJK150K | 100-150 | 65 | 58 | 2.38 |
| SJK250K | 150-250 | 65 | 58 | 3.56 |
| No. | Compatible Models | Weight(kg) |
| SJK65LN | SJK105,150,250(K) | 0.23 |
