ERON

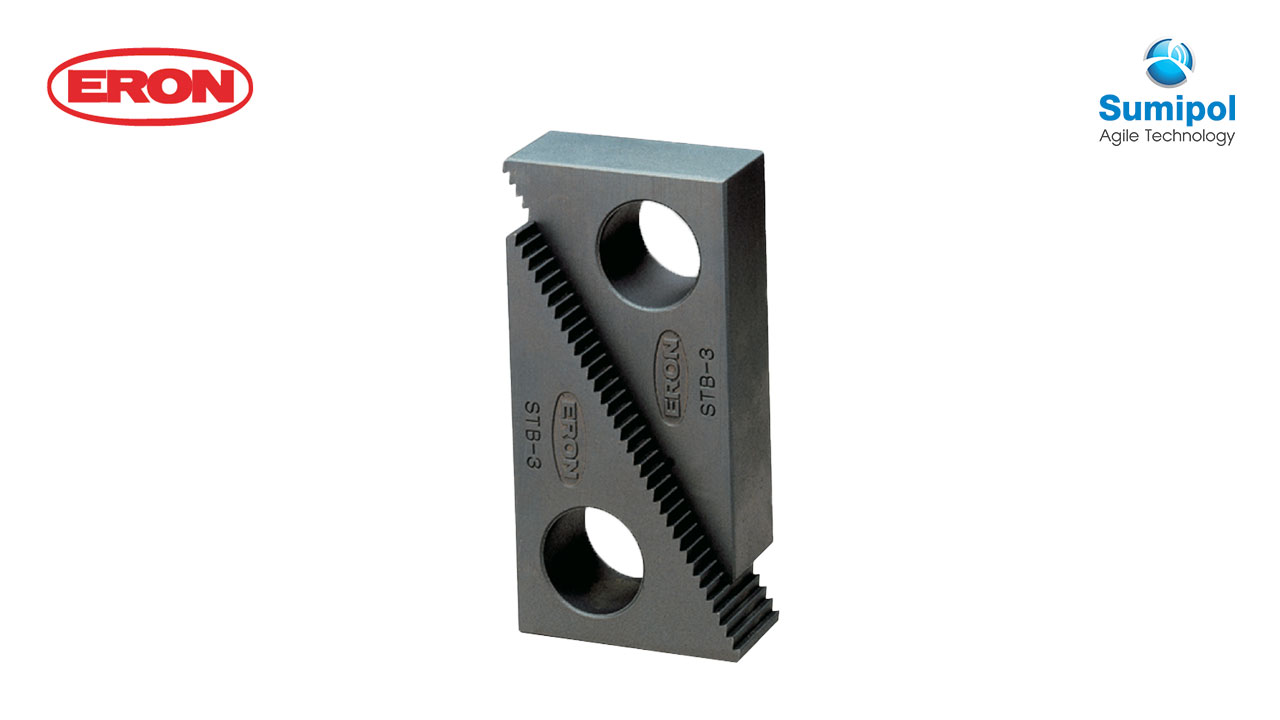

STEP BLOCKS

Material S45C SINTERING ALLOY
Heat treatment HARDENED HRB92+3/

Surface treatment BLACKENED

Feature

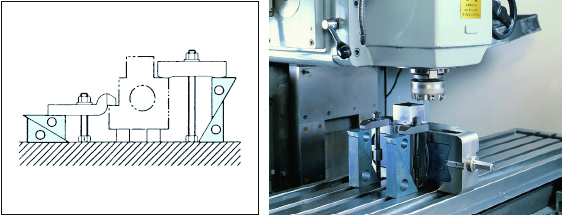

  • The step angles of STB1 to 9 are all the same, and can be used combined.
  • Parallelism can be maintained regardless of the combination.

No.Overall heightTotal lengthOverall widthWeight(kg)
STB128.817.425.30.1
STB245.326.925.30.24
STB397.557.125.30.84
STB45934.938.10.52
STB597.557.138.11.25
STB6138.880.938.12.54
STB75934.950.80.7
STB897.557.150.81.66
STB9138.880.950.83.43

แบบสอบถาม

Product Name : STEP BLOCKS
