ERON

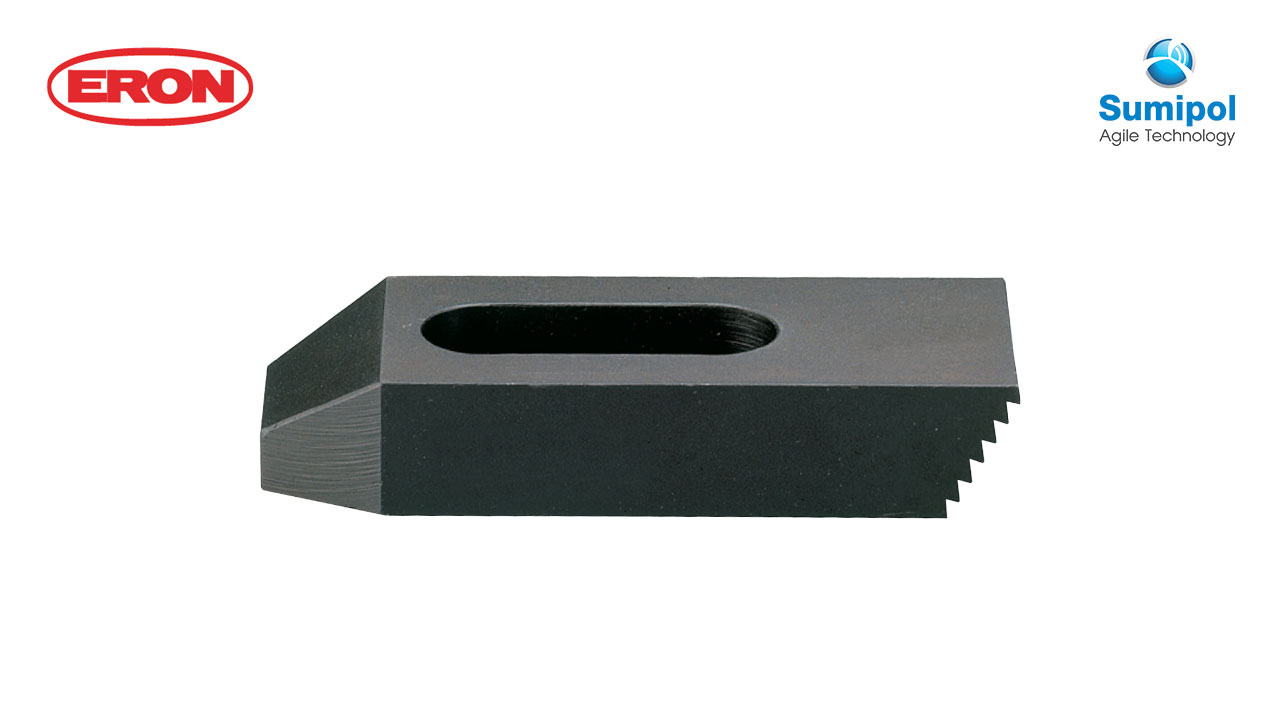

STEP CLAMPS

Material S45C
Heat treatment HRC3 ± 5 HEAT TREATMENT
Surface treatment BLACKENED

Feature

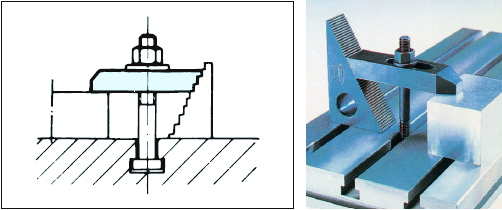

  • Used paired with step blocks.

No.Compatible BoltTotal lengthOverall widthThickNessWeight(kg)
STC0101M86025120.1
STC0102M810025160.23
STC0103M815025190.4
STC0201M106025120.09
STC0202M1010025160.22
STC0203M1015025190.4
STC0301M126025120.09
STC0302M1210032190.33
STC0303M1215032220.61
STC0401M166032160.15
STC0402M1610038190.38
STC0403M1615038220.7
STC0501M2010038190.35
STC0502M2015038250.71
STC0503M2020050301.63
STC0601M2215050321.29
STC0602M2220050321.69
STC0603M2225050382.6
STC0701M2415050321.29
STC0702M2420050321.86
STC0703M2425050382.46
