Optional Accessories
905338:SPC cable (40″/1m)for digital type
905409:SPC cable(80″/2m)for digital type
902794:Spindle lifting lever for digital and inch dial type(stroke .4/10mm)
Standard Accessories
21AZB149: Spindle lifting lever for digimatic and dial thickness gage (stroke .5″/12.7mm)
21AZB150: Spindle lifting lever for dial indicator (stroke 1″/25.4mm)
Mitutoyo

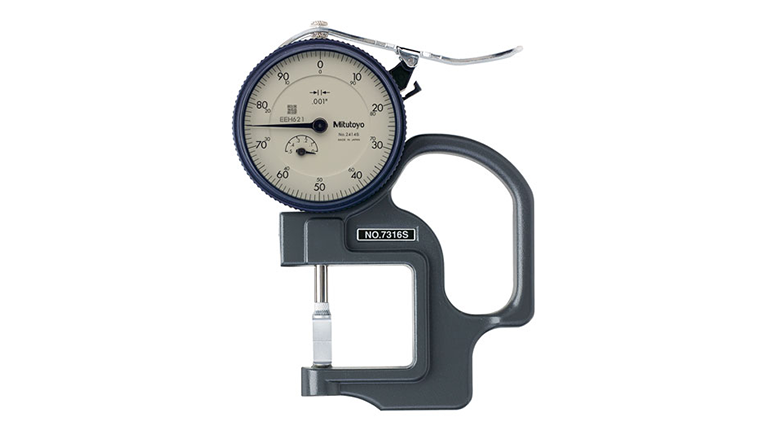

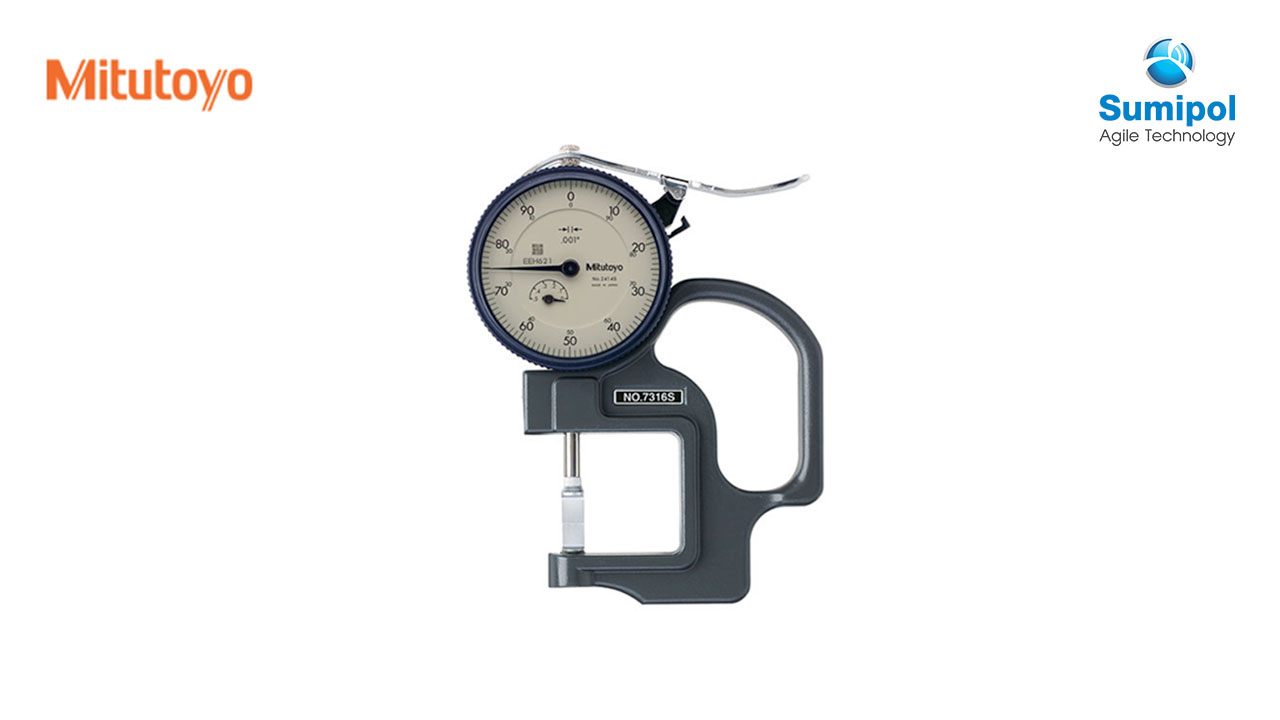

Thickness Gages – Groove Thickness (Blade anvil type)
Series 547,7
- การวัดความหนาของร่อง (Groove Thickness Measurement)
- แกนรับแบน (Blade anvil type)
Inch
| Order No | Range | Graduation | Accuracy | Force | Remarks |
|---|---|---|---|---|---|
| 7316S | 0-.5in | .001in | .001in | less than 1.4N | Groove thickness |
Inch/Metric
| Order No | Range | Resolution | Accuracy | Force | Indicator |
|---|---|---|---|---|---|
| 547-316S | 0-.47in 0-10mm | .0005in 0.01mm | .001in | 1.5 | Digimatic IDC |
| 547-516S | 0-.47in 0-12mm | .0005in 0.01mm | .001in | 1.5 | Digimatic IDS |
Metric
| Order No | Range | Graduation | Accuracy | Force | Remarks |
|---|---|---|---|---|---|
| 7315 | 0-10mm | 0.01mm | 15µm | less than 1.4N | Grove thickness |
