Digimatic Indicator ID-C Bore Gage Type

The new Bore Gage-Type Digimatic Indicator features both a Key-Lock and Parameter-Lock to prevent accidental changing of settings during operation

  • Dedicated for inside measurement with minimum value hold and tolerance judgement function.
  • Measurement data memory function (9 measurement results can be stored)
  • Simple operation of many functions with five buttons and status icons.
  • Fast measurement frequency allows the user to increase the number of readings per second from 10 to 50 and it enables to detect peak value more correctly.
  • Parameter setting software makes it easy to set all available parameters. (optional)
  • The minimum value holding function provides the easy detection of hole diameter.
  • Go/no-go judgment is performed by setting the upper and lower tolerances.
  • Up to three sets of master values and upper/lower tolerance values can be memorized.
  • Employing the ABSOLUTE linear encoder, the ID-C always displays the spindle Absolute Position from the origin when turned on.

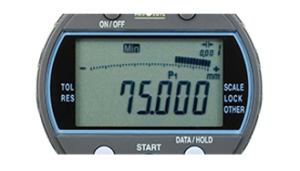

  • Wide LCD and an analog bar indicator is integrated to enhance the intuition in reading.

The ABSOLUTE Digimatic Bore Gage

ABSOLUTE Digimatic Bore Gages, which integrate the display with a bore gage measuring unit, are also available.


Technical Data
Resolution: 0.001-0.01mm or.00005-.0005”/0.001-0.01mm
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance type linear encoder
Max. response speed: Unlimited
Measuring force: 1.5N or less
Battery: CR2032 (1 pc.), 05SAA217
Battery life: Approx. 12 months under normal use
IP Rating: Equivalent to IP-42*1
*1 A protection class indication (IP=lnternational Protection) is based on the IEC 60529 /DIN40050 part 1/JIS D0207, C0920. The level indicated is valid only if the output connector cap is installed.

Key Lock, Parameter Lock, PC-USB Input, Analog Bar, Fast measurement frequency, Preset (up to 3 values), Tolerance Judgment , Peak Detection (Min Only), inch/mm conversion (on inch/metric models only), Data Output Alarm: Low voltage, Counting value composition error, Overflow error, Tolerance limit setting error

Optional Accessories
905338: Connecting Cable (1m)
905409: Connecting Cable (2m)
21EZA313: Parameter Setting USB Cable

ABS Digimatic Indicator ID-C Bore Gage Type


Order NoModel NoResolution/SelectableRangeAccuracyTypeMeasuring Force
543-311BID-C112GMXB.00005/.0001/.0005in 0.001/0.01mm.5in 12.7mm.00010in/0.003mmISO/JIS type
Stem dia Ø8mm, M2.5 x 0.45 Thread
1.5N or less
543-312BID-C112GEXB.00005/.0001/.0005in 0.001/0.01mm.5in 12.7mm.00010in/0.003mmANSI/AGD type
Stem dia 3/8 in 4-48 UNF Thread
1.5N or less
