ERON

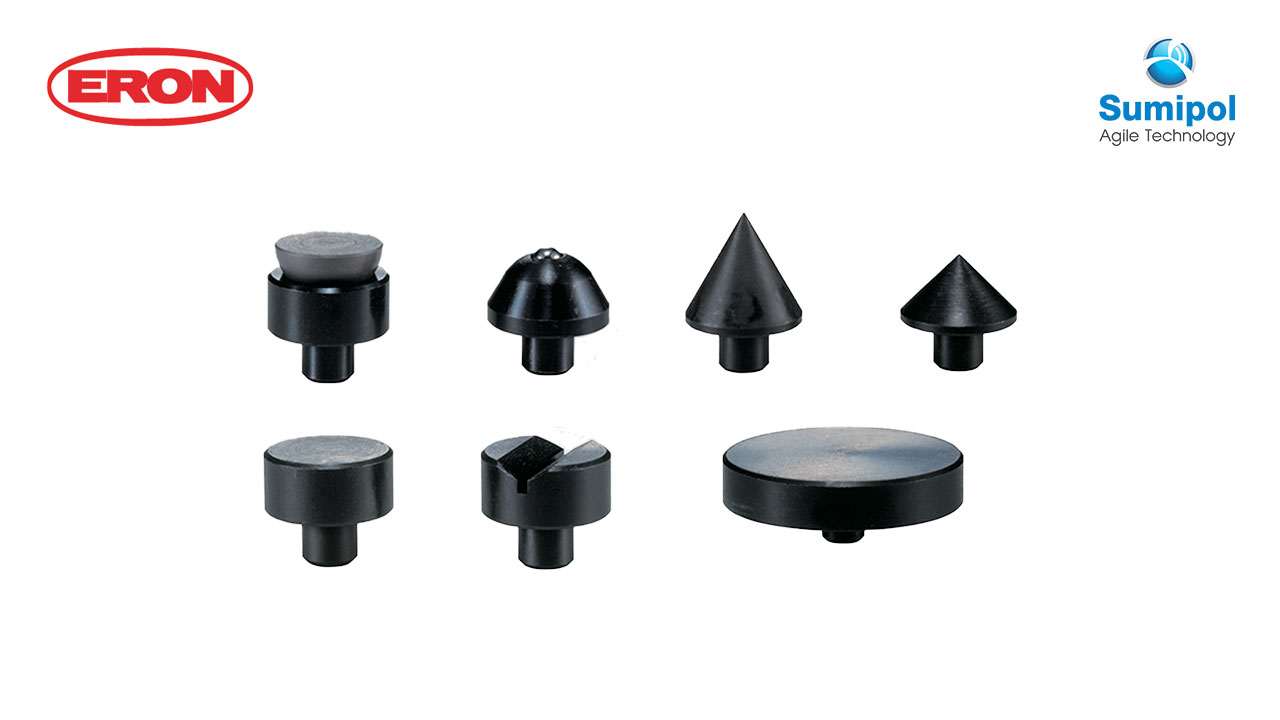

ATTACHMENT FOR CLAMPING SUPPORT JACK
Material S45C
Heat treatment
CSA-1 HEMISPHERIC PAD ： HRC55 ± 3 HEAT TREATMENT
CSA-3, 4, 5, 6, 1F ： HRC3 ± 3 HEAT TREATMENT
Surface treatment BLACKENED
Feature

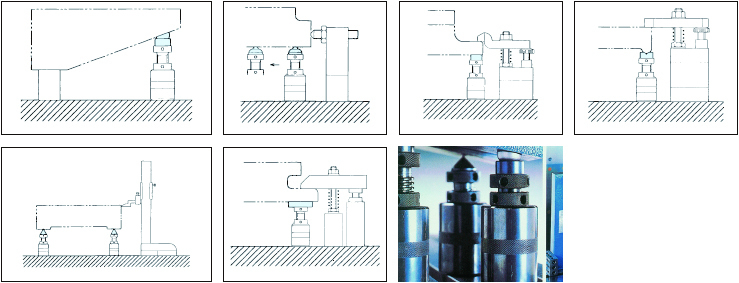

- You can choose an attachment suitable for the workpiece from a variety of attachments.
- These attachments are designed for the No.E-9175 clamping support screw and the No.E-9176 support screw jack.
| No. | Outer Diameter | Weight(g) |
| CSA1 | 25 | 80 |
| CSA2 | 25 | 60 |
| CSA3 | 25 | 60 |
| CSA4 | 25 | 60 |
| CSA5 | 25 | 55 |
| CSA6 | 25 | 45 |
| CSA1F | 60 | 347 |
