ERON

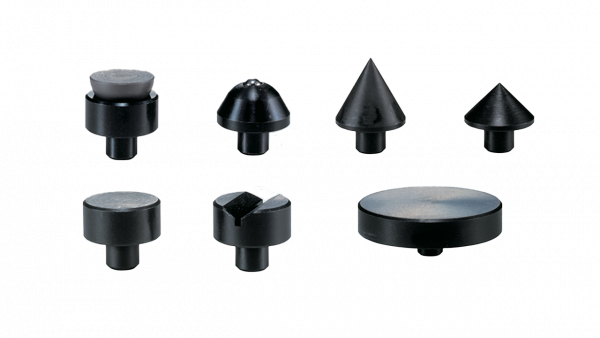

ATTACHMENT FOR CLAMPING SUPPORT JACK

Material S45C
Heat treatment

CSA-1 HEMISPHERIC PAD : HRC55 ± 3 HEAT TREATMENT
CSA-3, 4, 5, 6, 1F : HRC3 ± 3 HEAT TREATMENT

Surface treatment BLACKENED

Feature

  • You can choose an attachment suitable for the workpiece from a variety of attachments.

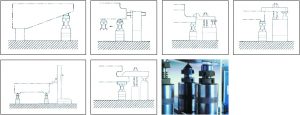

  • These attachments are designed for the No.E-9175 clamping support screw and the No.E-9176 support screw jack.

No. Outer Diameter Weight(g)
CSA1 25 80
CSA2 25 60
CSA3 25 60
CSA4 25 60
CSA5 25 55
CSA6 25 45
CSA1F 60 347
